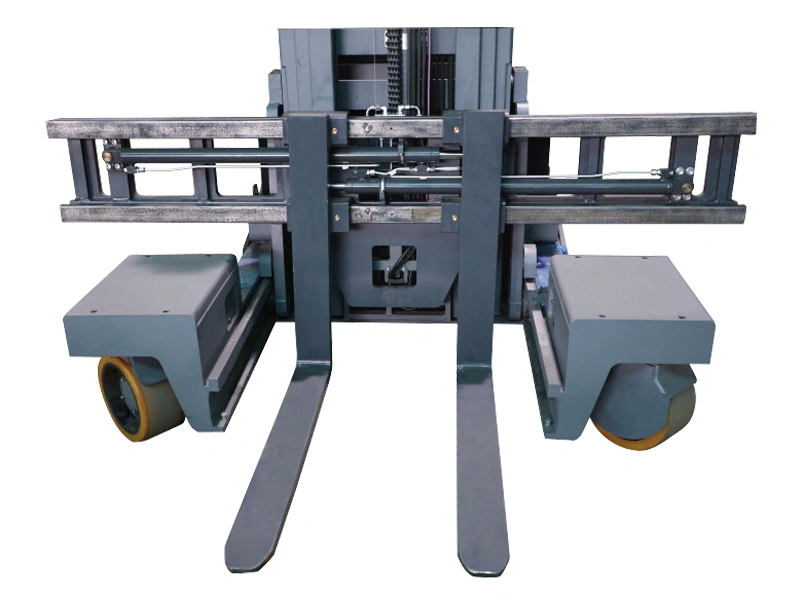

Long loads - profiles, pipes, timber, furniture panels - normally force a choice between wide aisles and a dedicated four-way sideloader. This truck removes the choice: it is a full 2-tonne reach truck that can also translate sideways and turn on the spot around its own centre.
Travel modes
- Longitudinal and lateral driving plus omnidirectional translation of the whole truck
- In-place rotation around the front wheel centre or the truck centre
- Carried crosswise, a six-metre bundle passes through the same 2.9 m aisle as a pallet
As a reach truck
- Thirteen mast options, lift heights 3000 to 12500 mm
- 2000 kg capacity, 600 mm reach, mast tilt 2/4 degrees
- Central control display integrates operator permissions, height positioning, status and fault inquiry
Dimensions
- Overall length 2490 mm, width across chassis 1260/1736 mm
- Service weight about 3800 kg with the 5 m mast
- Turning radius 1820 mm in conventional mode
Price and delivery
Price on request. This truck is built to order in our supplier's factory, with a typical lead time of 16 to 20 weeks from order confirmation. Contact us for the current quotation, the dimension drawing and the full data sheet for the configuration you need.
What it is for
- Stacking to great heights (7–13 m) in narrow aisles — high-bay warehouses.
- Very-narrow-aisle (VNA) trucks for maximum storage density; multi-directional for long goods.
This model
Multi-directional: long goods (timber, profiles) in narrow aisles. Reach truck: high-bay racking; check residual capacity at top level and aisle width. Capacity options: 2000 kg.
Check before you choose
- Lift height and residual capacity at top level
- Aisle width (reach vs. VNA guidance)
- Floor flatness class
- Operator position: seated, stand-on, man-up
- Battery capacity for shifts
Not suitable for
- Outdoor or rough floors
- Occasional low-height stacking (over-specified)
Before you order Project product — the final configuration is confirmed by our technical team before the order.
To confirm the right configuration we will ask you:
- Load length/width, COG, mass, height, aisle, travel directions, rack geometry? With long loads the required aisle depends on the load length, not only on the machine.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- Long loads can define aisle width and stability more than the truck's capacity.
Helpful to have ready: Load drawing with length/COG · Warehouse plan · Heights · Floor
Attributes
| Load capacity | 2000 kg |
|---|---|
| Lift height | 3000-12500 mm (13 masts) |
| Operator type | Seated |
| Drive modes | Longitudinal, Lateral, Omnidirectional, Turn in place |
| Service weight | approx. 3800 kg (5 m mast) |
| Turning radius | 1820 mm |
| Fork dimensions | 40/120/1070 mm |
| Reach distance (l4) | 600 mm |
| Aisle width, 800x1200 lengthways (Ast) | 2930 mm |
