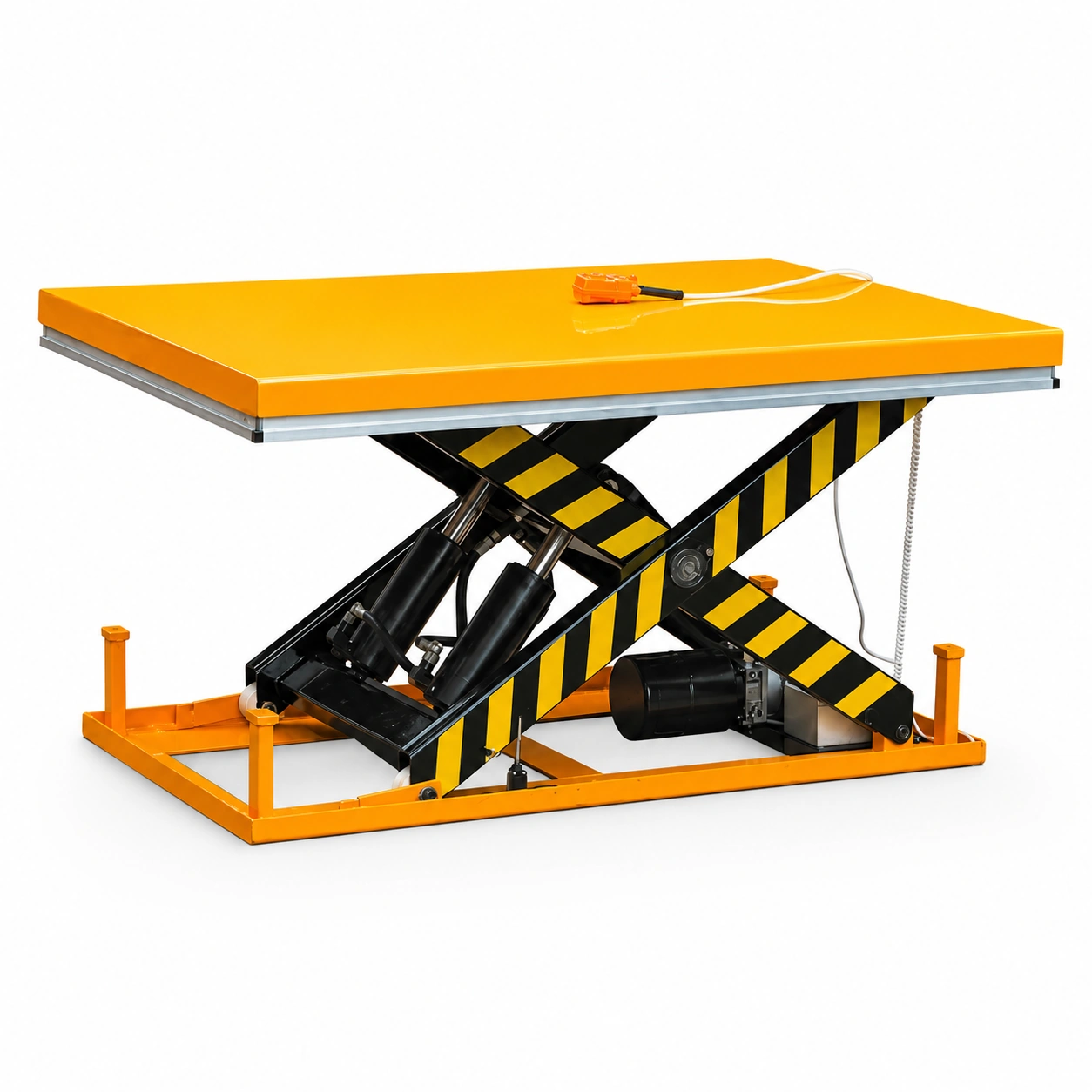

Single Scissor Lift Table 1000 kg
From 1.104,00 EUR
Back to catalog
Double Horizontal Scissor Lift Table 2000-8000 kg
Price
From 3.190,00 EUR
From 2.552,00 EUR
−20%
Save up to 1.138 EUR
Direct factory order
— −20% · 16–20 weeks · 40% deposit
Direct factory order — save 20%
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Available variants
In stock — ships now
Factory order — made to order
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Low-Lift Hydraulic Tables
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Double horizontal scissor hydraulic lift table series with 2000, 4000 and 8000 kg capacities and long platforms up to 3000 mm for oversized loads.
Key features
- Industrial lift tables designed for intensive use
- Series complies with EN 1570:1 and ANSI/ASME safety standards
- Can be installed above ground or recessed into a floor pit
- Aluminium safety contacts on the lower platform edge prevent injuries during lowering
- 24 V control box
- Internal power pack with overload relief valve and compensated valve for regulated lowering speed
- Cylinder-integrated drain system with a check valve that stops lowering in case of hose failure
- Automatic lubrication of the lifting points
- Eye bolts make installation easier
- AC motor drive
- Lift tables can also be manufactured to customer-specific requirements
Technical overview
- Model / SKU: JHS-D
- Product family: Low-Lift Hydraulic Tables
- Load capacity: 2000 kg, 4000 kg, 8000 kg
- Platform length: 2500 mm, 3000 mm
- Platform width: 1200 mm, 820 mm, 850 mm
- Lowered height: 205 mm, 230 mm, 240 mm
- Raised height: 1000 mm
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 2000 kg, 4000 kg, 8000 kg |
|---|---|
| Platform length | 2500 mm, 3000 mm |
| Platform width | 1200 mm, 820 mm, 850 mm |
| Lowered height | 205 mm, 230 mm, 240 mm |
| Raised height | 1000 mm |
