Heavy-Duty Electric Pallet Truck (EPV30SP) 3000 kg

Innovative heavy-duty rider pallet truck with 3000 kg capacity, AC control system, speed-sensing platform and roll-out side battery — built for high-speed load transport and loading-dock work.

Key features

• 3000 kg capacity for heavy-duty pallet moving
• AC control system without motor brushes or directional contactors
• Multi-function display: hour meter, fault code, battery condition
• Side-way battery with roll-out device for quick replacement
• Speed sensor in the platform ensures driving safety
• Built-in pressure relief valve prevents overloads
• Braking in both upright and horizontal handle positions

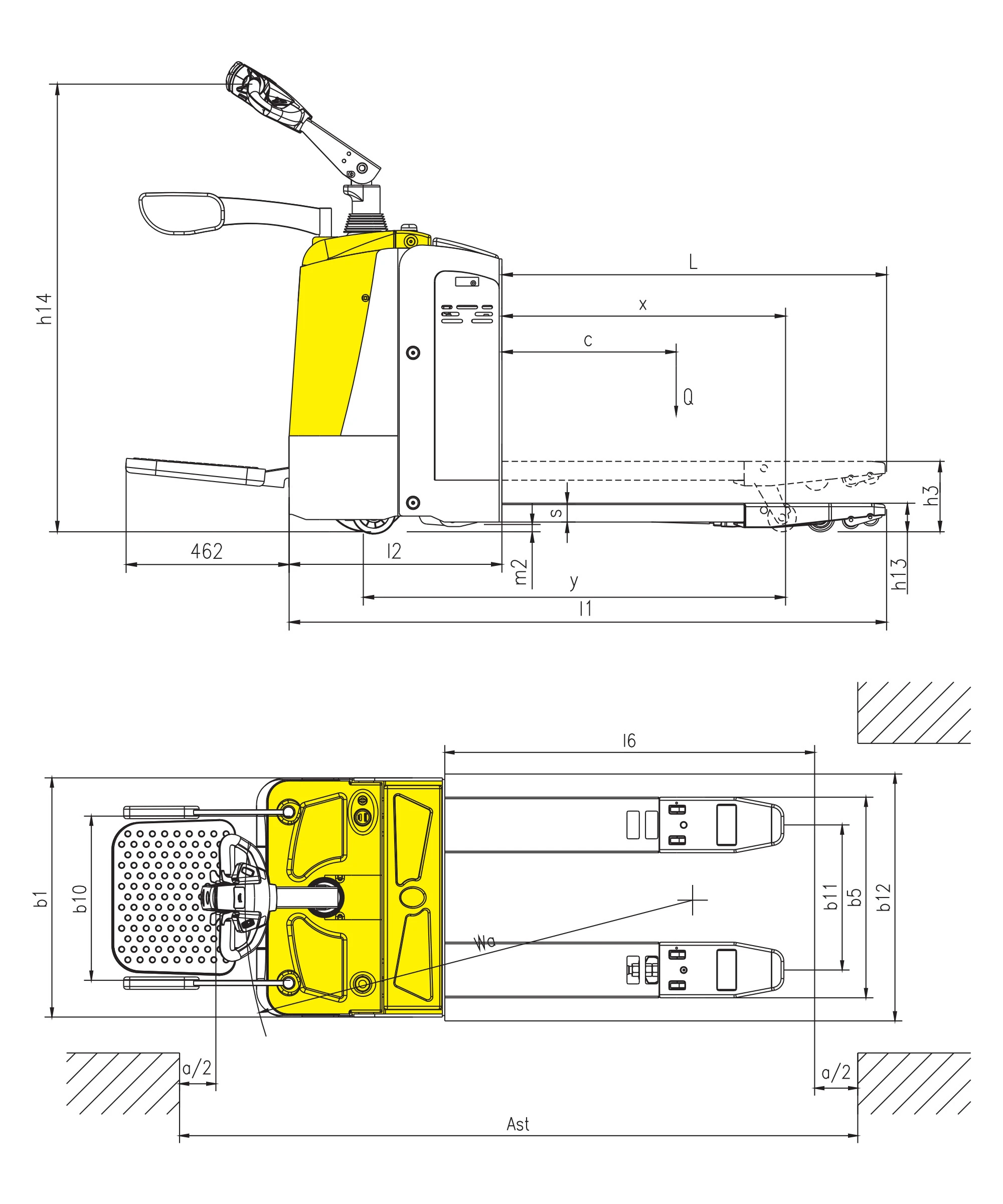

Technical overview

• Model / SKU: EPV30SP
• Product family: Electric Pallet Trucks
• Load capacity: 3000 kg
• Engine type: AC
• Load center: 600 mm
• Load distance, center of drive axle to fork: 914/964/1034mm
• Fork height, lowered: 82 mm
• Tyre size, front: 250x80mm
• Tyre size, rear: 82x126(98)mm
• Additional wheels (dimensions): 127x57mm
• Number of wheels, front/rear (x=driving) Φ: 1X+2(2/4)
• Max. lift height: 202 mm
• Height of tiller min/max: 1150/1430mm
• Overall length: 1785/1835/1905mm
• Length to face of forks: 685 mm
• Overall width: 775 mm
• Fork dimensions: 54x180x1100mm (1150/1220)
• Width overall forks: 520/550/650/685mm
• Aisle width for pallets 1000x1200mm: 2435/2480/2550mm
• Aisle width for pallets 800x1200mm: 2320/2345/2380mm
• Turning radius: 1550/1600/1670mm
• Travel speed, laden/unladen: 9.0/9.2km/h
• Initial lift: no
• Folding platform: yes
• Electric power steering: yes
• Battery type/voltage/capacity: LA/24/240, LA/24/400, LFP/24/125, LFP/24/225
• Battery weight: 275 kg
• Battery dimensions (I/W/H): 650x247x505(535)mm
• Service weight (with battery): 780 kg

Order online or send a quote request for delivery terms and customer-specific configurations.
