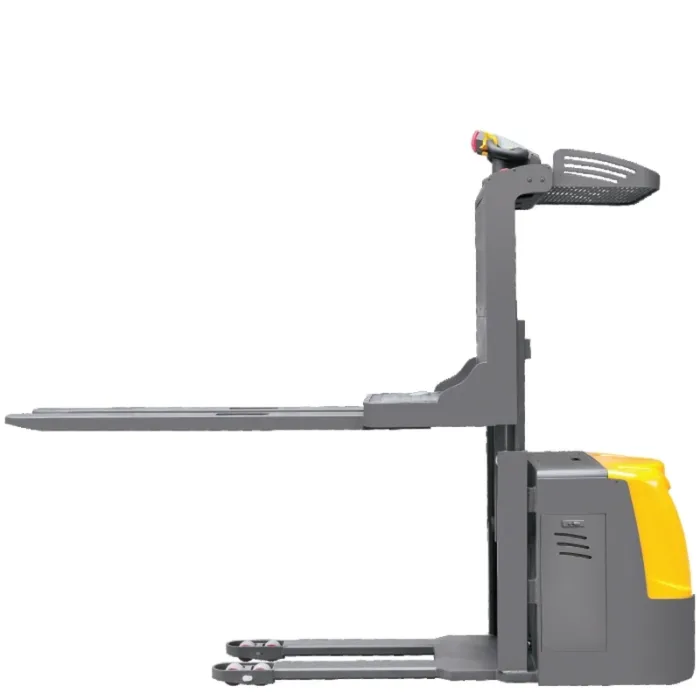

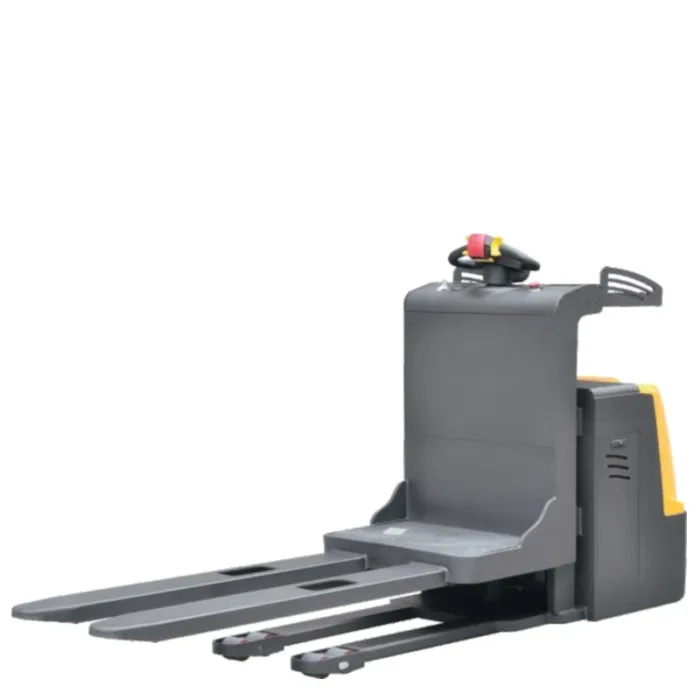

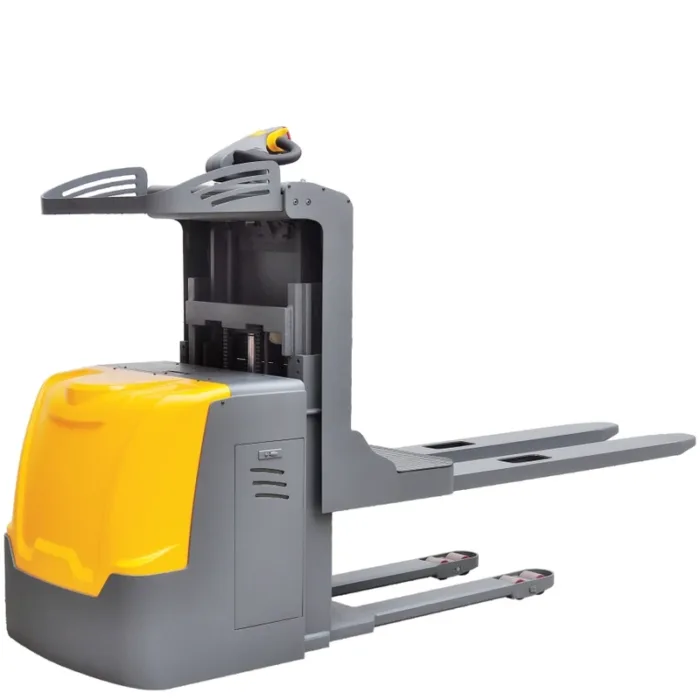

Electric low level order picker NKV10

Electric low level order picker NKV10 has a design to simplify the order fulfillment process in warehouses and distribution centers.

It requires an operator to operate it and perform picking tasks with precision and ease.

Order picker consists of a solid platform that can raise and lower to different heights, therefore allowing access to products stored on high shelves.

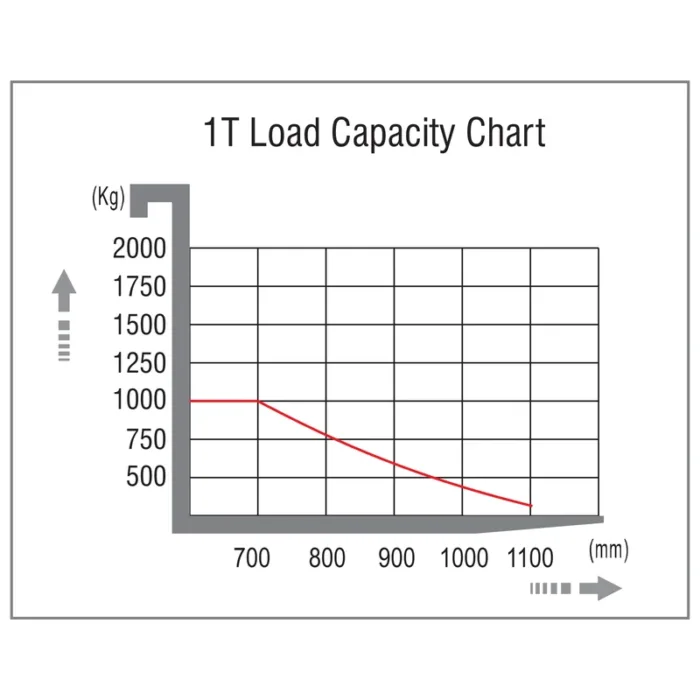

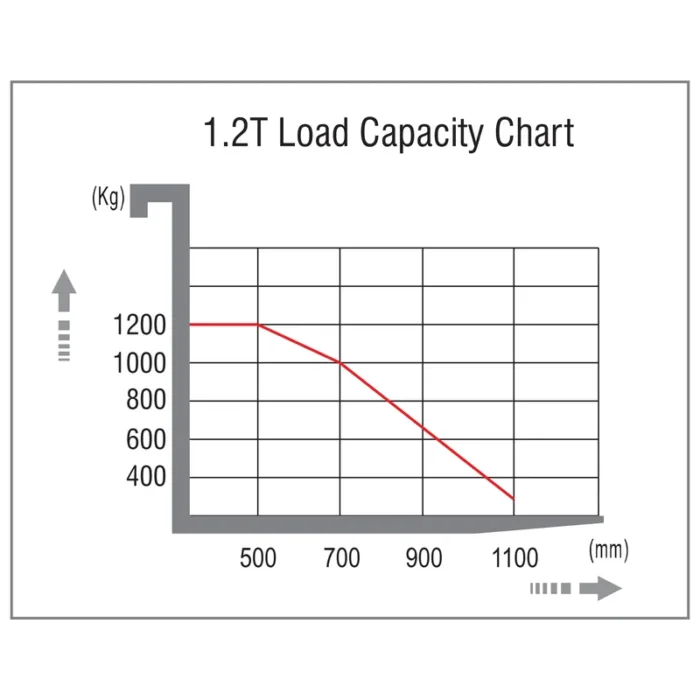

Load capacity: 1000kg (1t), 1200kg (1.2t).
Max. lifting height of platform is 1,2m.
The capacity of storage compartment in front of the operator is 60kg.
The advanced power steering system (EPS) handle guarantees highly effective and effortless maneuverability.
The comfort and convenience of operation are provided by ergonomic human engineering design.
Regenerative and electromagnetic brakes combined offer a secure and dependable brake.
The side-way battery arrangement for order picker makes maintenance and replacement a breeze.
Including a USB charger that may be used to charge a phone, a tablet, and other devices on the control panel.
When loaded, strong powers enable a 7 km/h travel speed.
The max. gradeability could reach 10%.
Improve the working efficiency and reliability.
Order picker with advanced AC control with reliable performance is easy to maintain.
Speed frequency control makes good control performance.
With reasonable layout of the key components, it is convenient to manitain.

Order picker has an electric motor, therefore ensuring smooth and quiet operation while reducing emissions and impact on the environment.

With its ergonomic design, therefore it prioritizes operator safety and comfort.

The platform offers enough space for the operator to stand safely, and the controls are intuitively placed within easy reach, in order to enable efficient maneuvering in tight spaces.

Shipping Info

We organize delivery for all EU countries.

The current shipping price depends on several factors. The key factors are the dimensions and weight of the cargo, the route (place of loading/destination), the total distance, the delivery zone (urban areas, remote places, islands…) and the current price of fuel. In order to enable the fastest, most reliable and favorable transport of goods, we use the TIMOCOM Marketplace.
The prices shown below are indicative and non-binding. A separate transportation request is made for each order.

When choosing a carrier, all important criteria such as reliability, safety and availability are systematically checked, so that the most favorable price is not taken as a key factor.

For larger orders, the transport price should be more favorable than indicated in the table.
For the calculation, it is necessary to sum the values of W, H, Wt and D. The values of W, H, Wt and D vary depending on the length (L) of the load.

For all islands that are not connected to the mainland by road, +55% should be added to the displayed price.

The cost of transportation is charged just before delivery.

Additional information

Weight	N/A
Dimensions	N/A
Load capacity	1000kg, 1200kg
Load center	500mm, 700mm
Load distance, center of drive axle to fork	515mm
Tyre size, front	250x80mm
Rear wheel size (double)	80x84mm
Additional wheels	Φ150×60mm
Number of wheels, front/rear (x=driving) Φ	1X+1/4

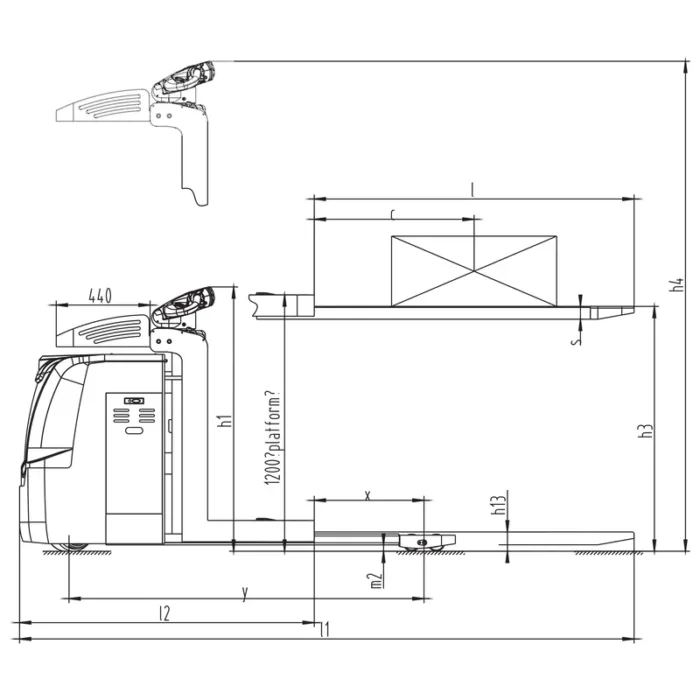

Height, mast lowered	1275mm
Max. lift height	1140mm
Height, mast extended	2335mm
Fork height, lowered	90mm
Overall length	2455mm, 2885mm
Coupling height	1383mm

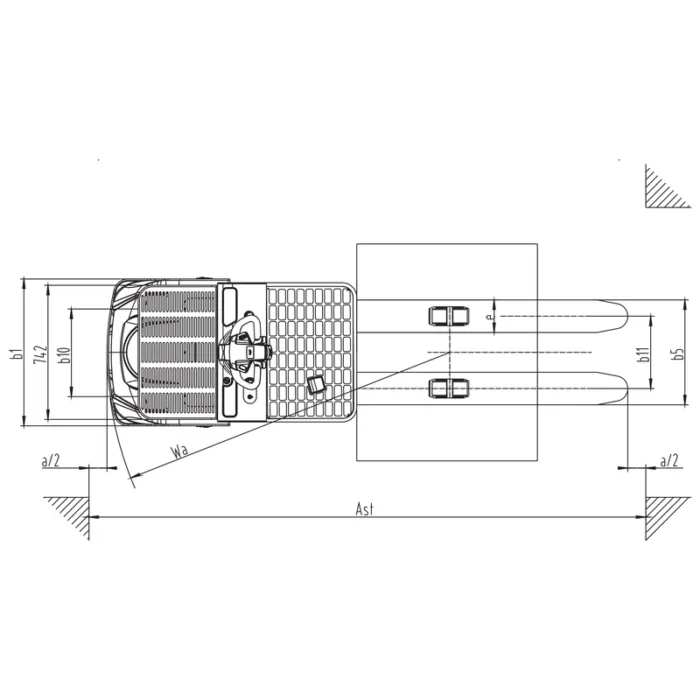

Overall width	812mm
Fork dimensions	60x180x1500mm
Width overall forks	580mm
Ground clearance	29mm
Aisle width for pallets 1000x1200mm	2904mm
Aisle width for pallets 800x1200mm	2904mm
Turning radius	1897mm
Travel speed, laden/unladen	7.0/7.1km/h
Lifting speed laden/unladen	0.1/0.14m/s
Lowering speed laden/unladen	0.10/0.10m/s
Battery type/voltage/capacity	LA/24/240
Battery dimensions (I/W/H)	654x440x254mm
Service weight (with battery)	1195kg
