Pneumatic Balancers

ENDO pneumatic balancers for precise, effortless load positioning using compressed air — ideal for repetitive handling tasks.
14 products

How to choose

What it is for

  1. Air balancer for larger parts and tools: float mode, preset load positions, precise handling up to hundreds of kg.
  2. Assembly of heavy components, machine loading.

Check before you choose

  • Load weight and range
  • Air supply
  • Stroke and control mode (float / up-down)
  • Rail/trolley mounting

Not suitable for

  • Where no compressed air

What we will ask you before recommending a model

Pneumatic balancer Project product — the final configuration is confirmed by our technical team before the order.
  1. Mass and mass range; stroke; pressure and flow; control module; gripper; cycles; speed; the whole handling process? Configuration follows the process, not only kilograms; gripper and COG are often decisive.

Typical mistakes to avoid

  • Configured to the process, not to kilograms — gripper and COG are often decisive.

Helpful to have ready: Video/description of the process · Min/max mass · Dimensions/COG · Pick/place · Cycle time · Pressure/flow

How to choose a pneumatic balancer

A pneumatic balancer uses compressed air to hold a load "weightless" and reposition it with fingertip effort — where a spring balancer suspends a tool, a pneumatic balancer handles the workpiece itself: engine parts onto fixtures, boxes onto pallets, panels into jigs, cycle after cycle without operator fatigue. The ENDO EHB programme covers loads from a few kilograms up to 450 kg (EHB-CR), with control modules that determine how the balancer is driven.

The module is the key choice: MS modules give manual up/down control on a handle, BC balance-control modules let the operator move the load itself while the balancer follows, and ABC automatic models sense the load weight and balance it without adjustment — useful when part weights vary. Most EHB variants are ATEX-certified for explosive atmospheres, and specialised versions add inertia braking or anti-sway control. For simple tool suspension without an air supply, see spring balancers; for special configurations, special pneumatic balancers. Contact us with your part weights, cycle and zone classification and we will configure the right unit.

Frequently asked questions

Pneumatic or spring balancer — which do I need?

A spring balancer suspends a tool of constant weight. A pneumatic balancer positions loads precisely with minimal force, handles heavier weights (up to 450 kg), adapts to varying part weights (ABC automatic models) and offers ATEX versions — the choice for repetitive workpiece handling rather than tool suspension.

What do the different control modules do?

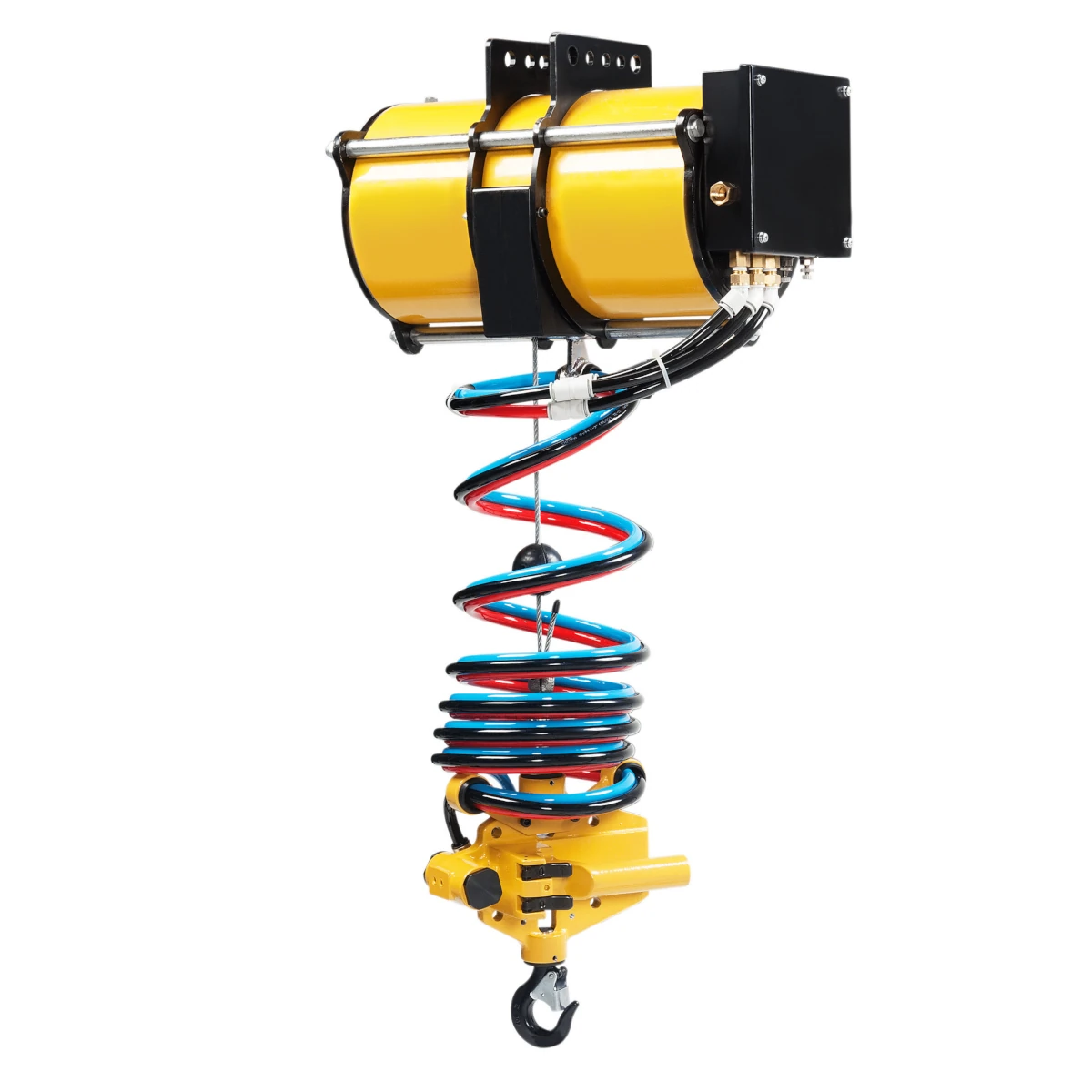

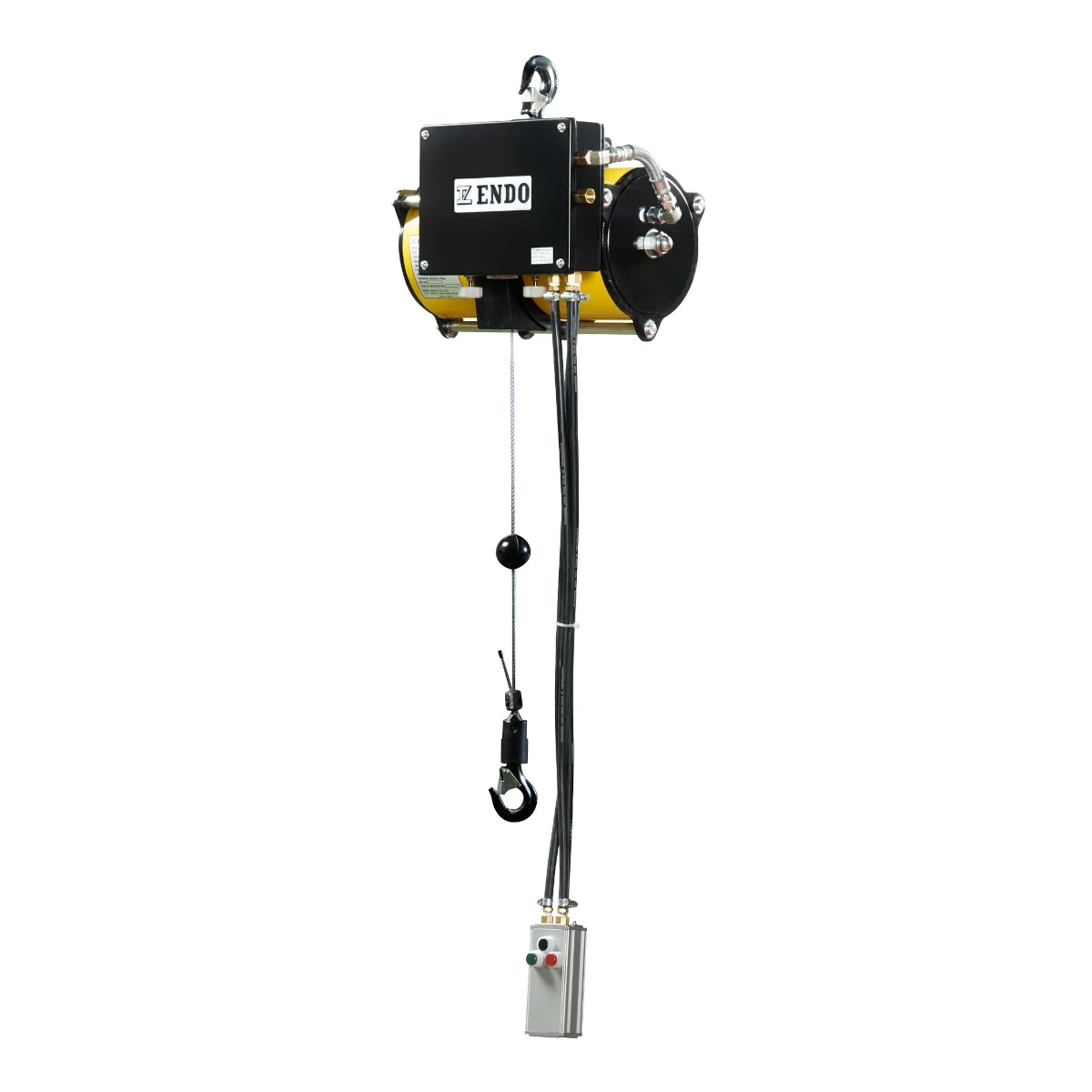

MS modules give the operator an up/down control on a handle. BC (balance control) modules keep the load floating so the operator simply pushes the workpiece where it must go. ABC automatic modules sense the load weight and balance it automatically — no adjustment when part weights change.

Can pneumatic balancers work in explosive atmospheres?

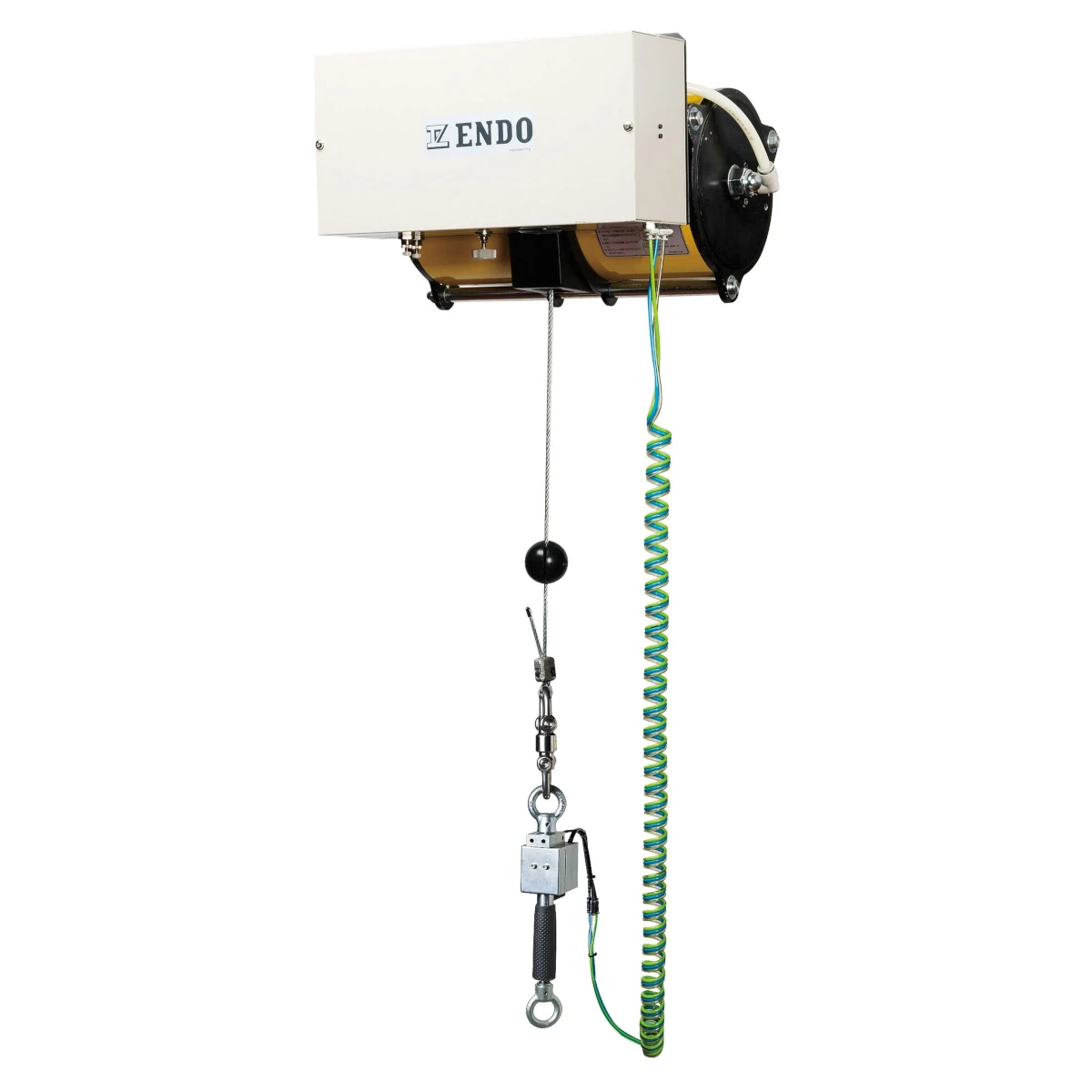

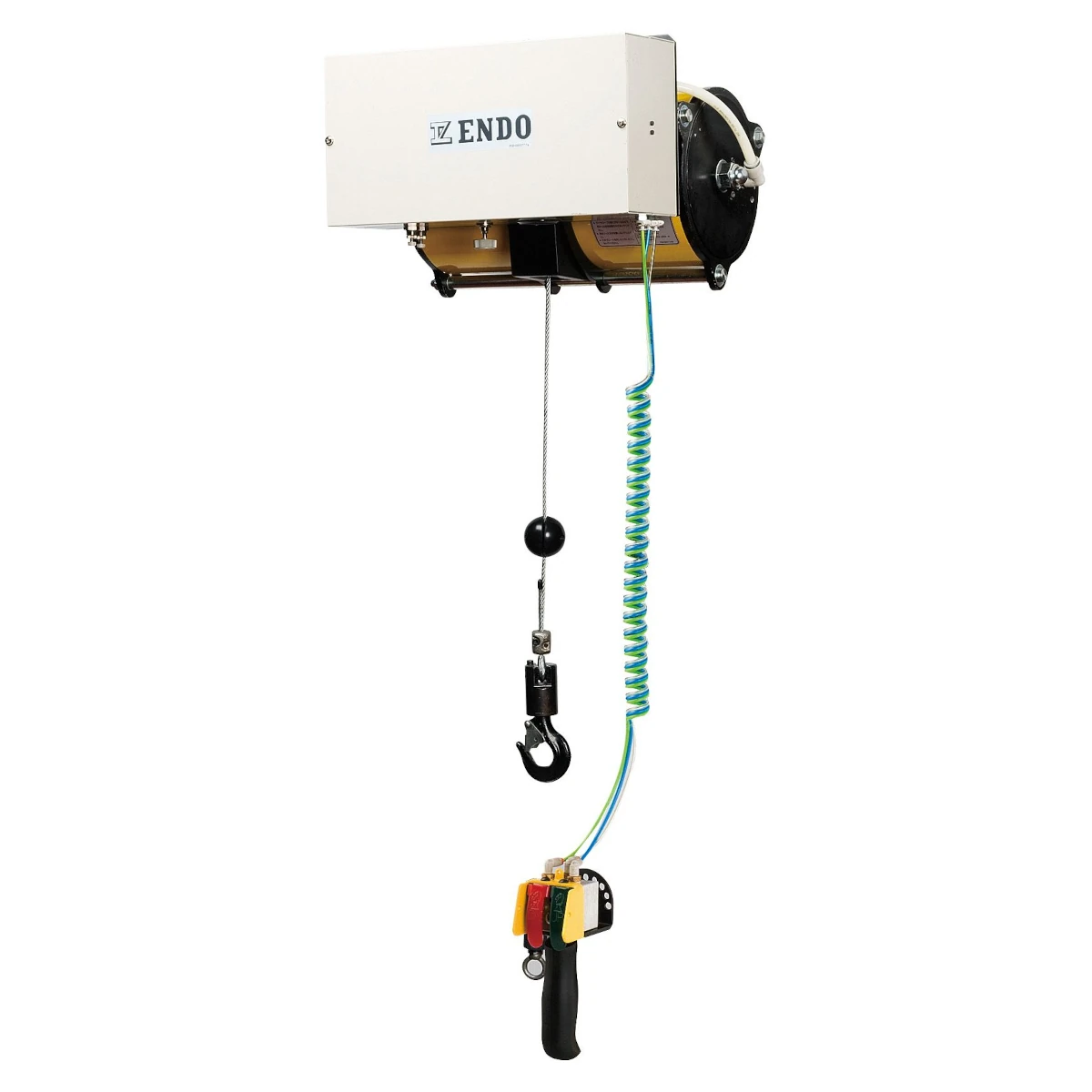

Yes — being air-driven with no electrical drive, most EHB variants are ATEX-certified, including automatic (ABC-5P-B/ABC-5G-B) and anti-sway versions. State your zone classification in the enquiry and we will confirm the certified configuration.

What air supply does a pneumatic balancer need?

A standard industrial compressed-air connection with dry, filtered air; the required pressure and consumption are stated in each model's documentation and depend on the load and duty cycle.

How quickly can a pneumatic balancer be delivered?

EHB balancers are configured per application (capacity, module, ATEX). Request a quote on the product page and we will confirm the current lead time and delivery cost for your location.
