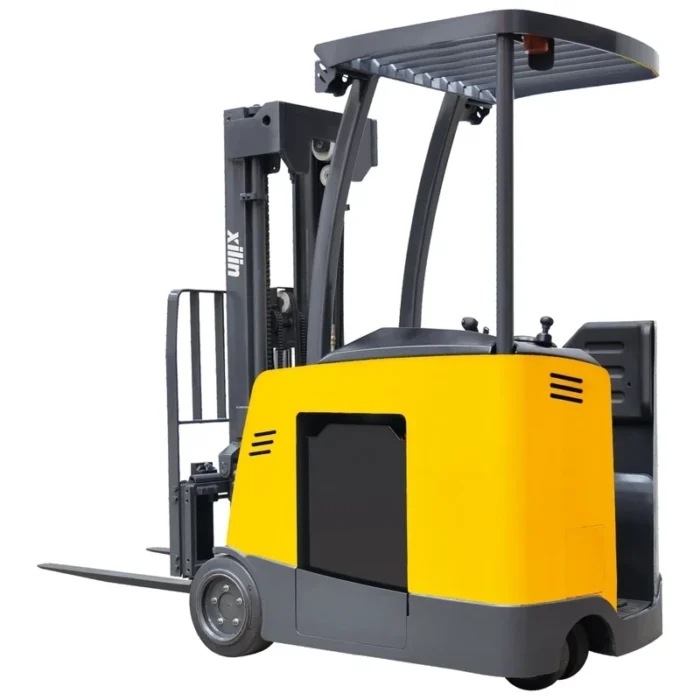

Stand-up counterbalance forklift

Stand-up counterbalance forklift is highly versatile and efficient machine used for various material handling tasks in warehouses, distribution centers, and industrial settings.

Load capacity: 1500kg (1.5t)
Lift height: 2500-5600mm (2.5-5.6m)
Free lift: option
Drive: rear wheel drive

SAFETY AND STABLITY

When entering or exiting a container or transporting products down a crowded aisle, this capability seems very crucial. Standing-type design with a clear field of vision.
Electric forklifts with imported drive wheel and mast.
With multi-function LED display with BID can be programmed, include battery discharge, faulty code, drive direction, hour meter, brake situation etc..
Advanced AC control system offers strong driven ability. No brush with generative brake.
Three types of driven speeds are available: low speed, regular speed, and high speed. You can make a decision based on many requests.
Muiti-function type joy stick can control forward, reverse, mast lifting/lowering, tiling and sideshift etc. easy to operate.
Germany made magnetic multi-valve, with proportional valve, therefore it offers adjustable lifting/lowering speed.

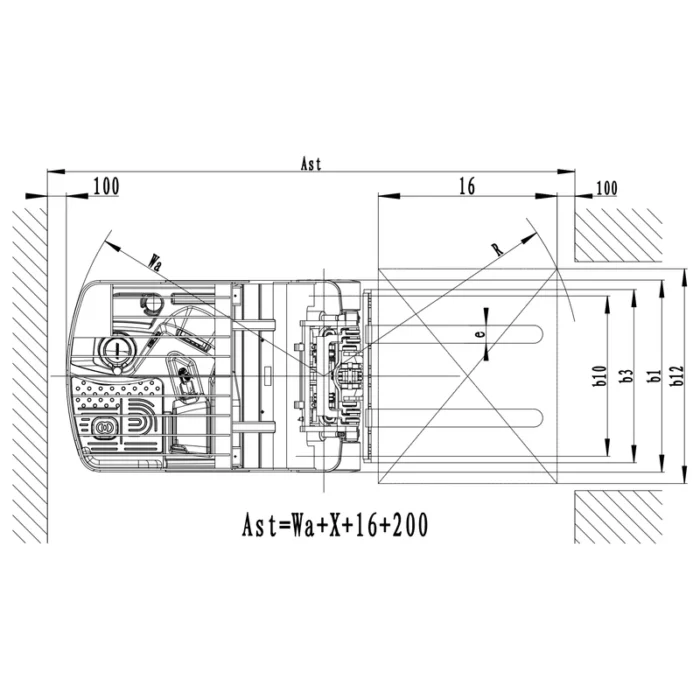

The shortest aisle width is 3060mm, and the turning radius is 1440mm.

ERGONOMICS

Electric forklifts with adjustable armrest, comfortable and stable. Suit for different height driver using.
Large compartment for standing, with foot relax plate, can effectively relax foot while static operation.
The standing platform has good shock absorption and is designed with ergonomic comfort in mind.
Padded support is provided by the adjustable armrest and seat to make the hand pleasant and stable and to accommodate diverse operator needs.

SERVICE ABILITY

While the front cover is open, the electrical system is easily accessible for maintenance.
Both the driving and lifting motors are AC-powered, brushless, and simple to replace external encoders.
Electric forklifts maintenance is made easier by the battery’s sideways movement and lock system.
Lifting function will be cut off while battery discharge is over 80%.
The multi-function display with fault codes in order to make it simple to identify truck problems.

OFFERS 6 TYPE CONTROL SPEED (Electric forklifts)

System regulated hydraulic speeds: To improve forklift stability and operator confidence, the hydraulic system automatically regulates tilt and stable side-shift speed.
Travel speed control: truck can automatically controls travel speeds and braking based on fork height and other operating conditions.
Cornering speed control: As the truck steers, the travel speed is automatically adjusted.
Ramp speed control: Until the driver starts moving forward at a constant speed, the intelligent control system can keep the vehicle stopped on the ramp.
Safe speed control: If the operator’s foot leaves the standing platform, the forklift will automatically slow down.
Electric forklifts with lift/lower speed control.
By using the control handle, the operator can modify the raise and lower speed.

Option

reading light
electric fan
sideshift and other accessories of the forklift

These electric forklifts offer a wide range of benefits, therefore making them a popular choice among businesses seeking sustainable and cost-effective solutions for their lifting and transporting needs.

We organize delivery for all EU countries.

The current shipping price depends on several factors. The key factors are the dimensions and weight of the cargo, the route (place of loading/destination), the total distance, the delivery zone (urban areas, remote places, islands…) and the current price of fuel. In order to enable the fastest, most reliable and favorable transport of goods, we use the TIMOCOM Marketplace.
The prices shown below are indicative and non-binding. A separate transportation request is made for each order.

When choosing a carrier, all important criteria such as reliability, safety and availability are systematically checked, so that the most favorable price is not taken as a key factor.

For larger orders, the transport price should be more favorable than indicated in the table.
For the calculation, it is necessary to sum the values of W, H, Wt and D. The values of W, H, Wt and D vary depending on the length (L) of the load.

For all islands that are not connected to the mainland by road, +55% should be added to the displayed price.

The cost of transportation is charged just before delivery.

Weight	3060 kg
Dimensions	1960 × 1075 × 2000 mm
Load capacity	1600kg, 1800kg
Lift height	3000mm, 4500mm, 6000mm
