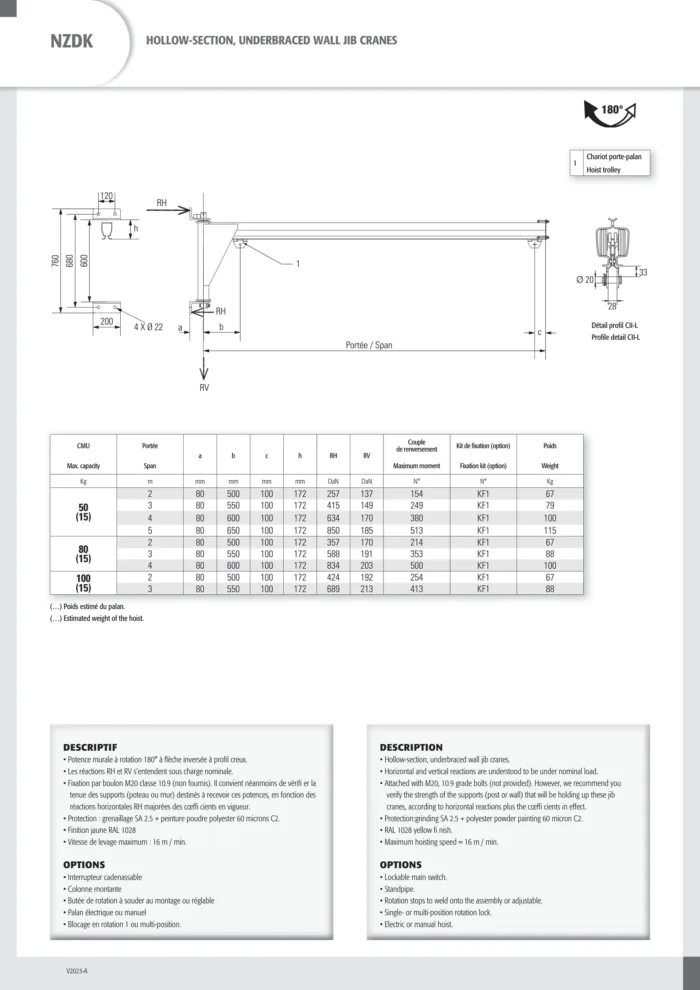

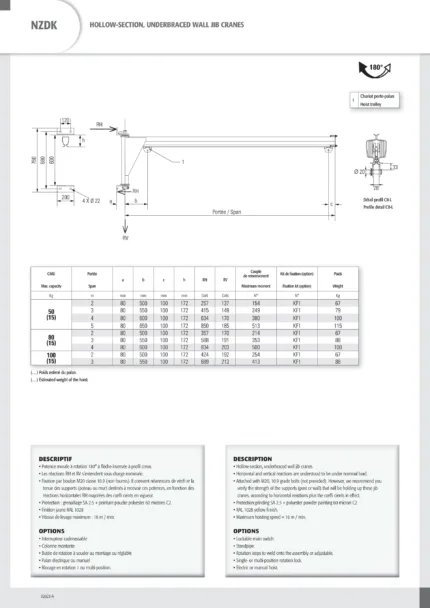

Hollow-section, underbraced wall jib cranes (NZDK) – Basic specifications:
- load capacity: 50kg, 80kg, 100kg
- span: 2000mm, 3000mm, 4000mm, 5000mm
Hollow-section, underbraced wall jib cranes (NZDK) – Description and options:
- underbraced wall jib cranes
- intended exclusively for internal use
- working angle of 180°
- a motor drive cannot be installed on this type of crane
- options: manual or electric chain hoist and beam trolley
- the wall jib crane is supplied with standard brackets
- fastening with M20 class 10.9 screws (not supplied)
- finish RAL 1028
- a manual beam trolley is also included in the standard equipment
Options:
- manual chain hoist
- additional beam trolley
- electric chaine hoist
- feeding line on rail
- lockable switch 400V (16 or 20A)
- adjustable attachment kit
- rotation slowing device
- locking device 1 position or multiposition in stainless steel
When ordering wall-mounted console cranes, a 50% advance payment is required.
