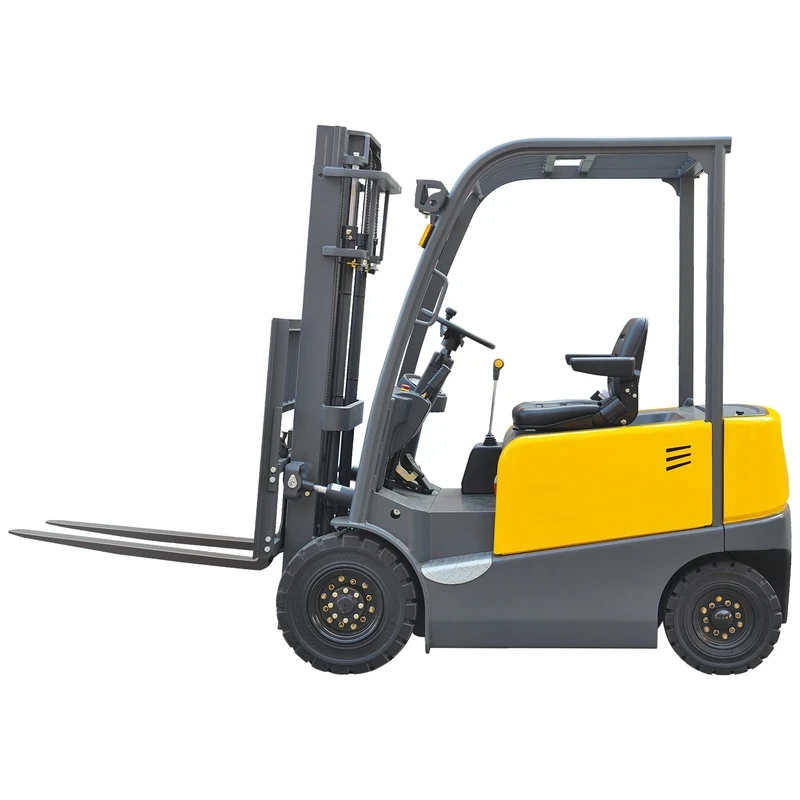

Electric forklift truck

Electric forklift truck is highly versatile and efficient machine used for various material handling tasks in warehouses, distribution centers, and industrial settings.

Load capacity: 1600kg (1.6t), 2000kg (2t), 2500kg (2.5t), 3000kg (3t), 3500kg (3.5t)
Lift height: 3000-6500mm (3-6.5m)
Service brake: hydraulic
Tyres: pneumatic/solid

SAFETY AND STABILITY:

Improved efficiency most popular H type driving axle, therefore optimized structure layout and improved efficiency.
Huge torque and high power Large-diameter body of the AC driving motor allows it to output more torque, and a heat-reflecting groove is set aside for better heat exchange during exceptionally prolonged operation.
Multifunctional display provides running information for forklifts, fault codes, battery status, and using time.
Electric forklifts with AC driving motor without brush, free of maintenance; low electric current, silent driving.
Battery relocation has resulted in a low gravity center, in order to substantially enhancing steering stability.
Steering circuit preference, to conserve energy and assure safety during every turn when steering and lifting at the same time.
Design has two controllers, one for driving and the other for steering and lifting.
Metal housing for better protection.
Electric forklifts with Full LED light.

ERGONOMICS:

The operation area is large and cozy thanks to the optimized structure.
The driver can arrange the steering wheel column, in order to suit his needs thanks to its adjustability.
Integrated light switch and steering wheel.
Clear and wide view mast with good visibility.
Electric forklifts with intelligent mast collapse buffering.

SERVICE ABILITY:

Easy maintained controller and steering potentiometer.
Reduced ownership costs due to brushless lifting and driving motor; simple replacement and maintenance of external encoder.
Over discharge protecting system: while the battery discharges less than 20%, the instrument warning light will turn on.
On the instrument panel, there is a braking oil cup that makes it easy to check the level and top it off.

OPTIONAL (Electric forklift truck):

side-way battery box<br
electromagnetic valve
shock-absorbing chair, with power disconnect function

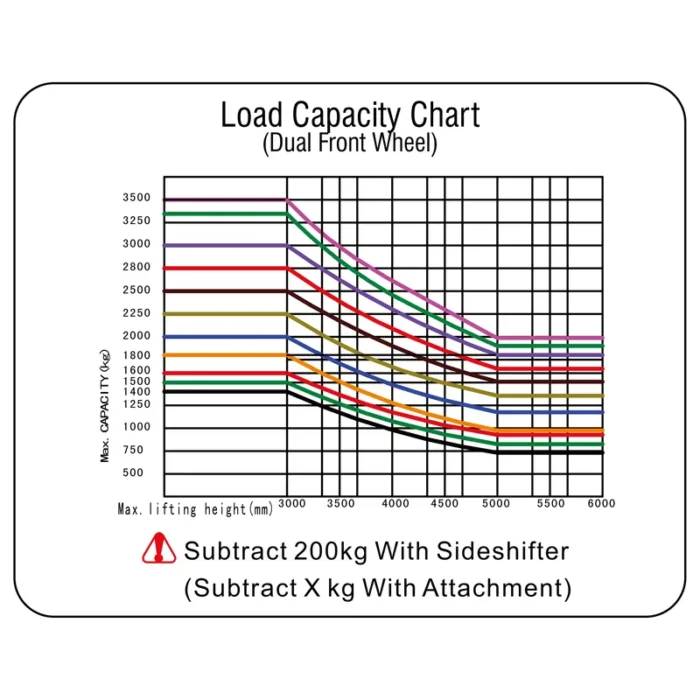

dual-front-wheels
adjustable lifting motor speed system
cold storage application
lithium battery

These electrically driven vehicles offer a wide range of benefits, therefore making them a popular choice among businesses seeking sustainable and cost-effective solutions for their lifting and transporting needs.

Shipping Info

We organize delivery for all EU countries.

The current shipping price depends on several factors. The key factors are the dimensions and weight of the cargo, the route (place of loading/destination), the total distance, the delivery zone (urban areas, remote places, islands…) and the current price of fuel. In order to enable the fastest, most reliable and favorable transport of goods, we use the TIMOCOM Marketplace.
The prices shown below are indicative and non-binding. A separate transportation request is made for each order.

When choosing a carrier, all important criteria such as reliability, safety and availability are systematically checked, so that the most favorable price is not taken as a key factor.

For larger orders, the transport price should be more favorable than indicated in the table.
For the calculation, it is necessary to sum the values of W, H, Wt and D. The values of W, H, Wt and D vary depending on the length (L) of the load.

For all islands that are not connected to the mainland by road, +55% should be added to the displayed price.

The cost of transportation is charged just before delivery.

Additional information

Weight	3200 kg

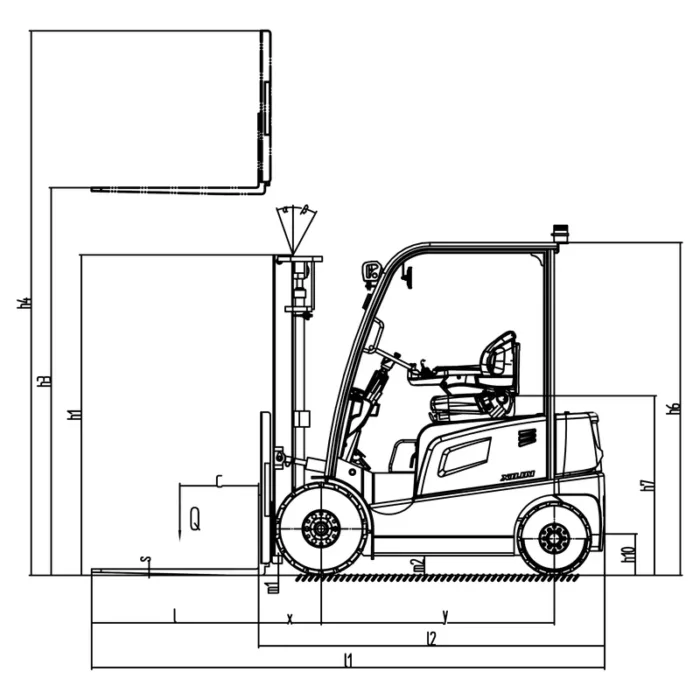

Dimensions	3000 × 1130 × 2015 mm

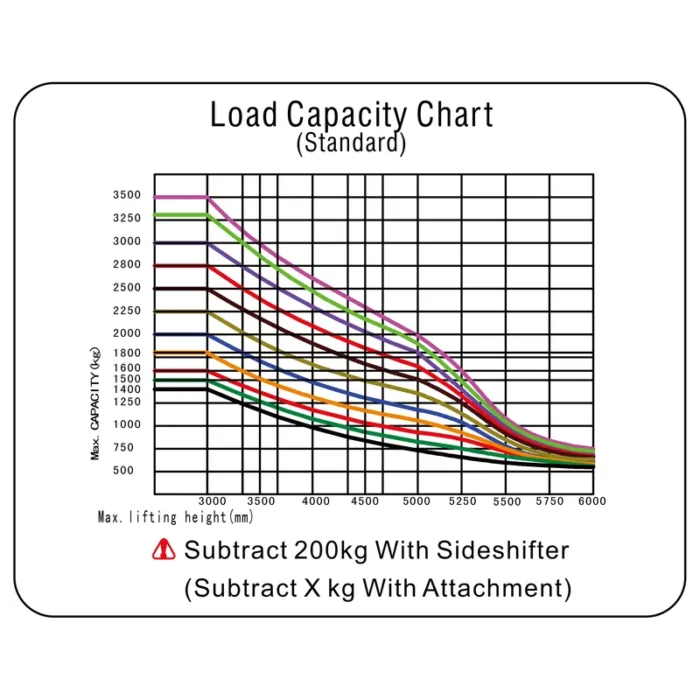

Load capacity	1600kg, 2000kg, 2500kg, 3000kg, 3500kg
Lift height	3000mm, 3500mm, 4000mm, 4500mm, 5000mm, 5500mm, 6000mm

Electric forklift truck full AC 1600-3500kg

0,00 € excl. tax

These electrically powered vehicles have a number of advantages, making them a popular pick for companies looking for environmentally friendly and economically sensible solutions for their lifting and transportation requirements.

Available on backorder
