- WLL = 3200kg
- span = 8000mm
- height under beam HUB = 6000mm
- complies with EN 15011 (lifting class HC2, stability class S2)
- movable under load on smooth and clean ground
- total weight = 1598kg
- weight of one foot = 528kg
- beam weight = 542kg

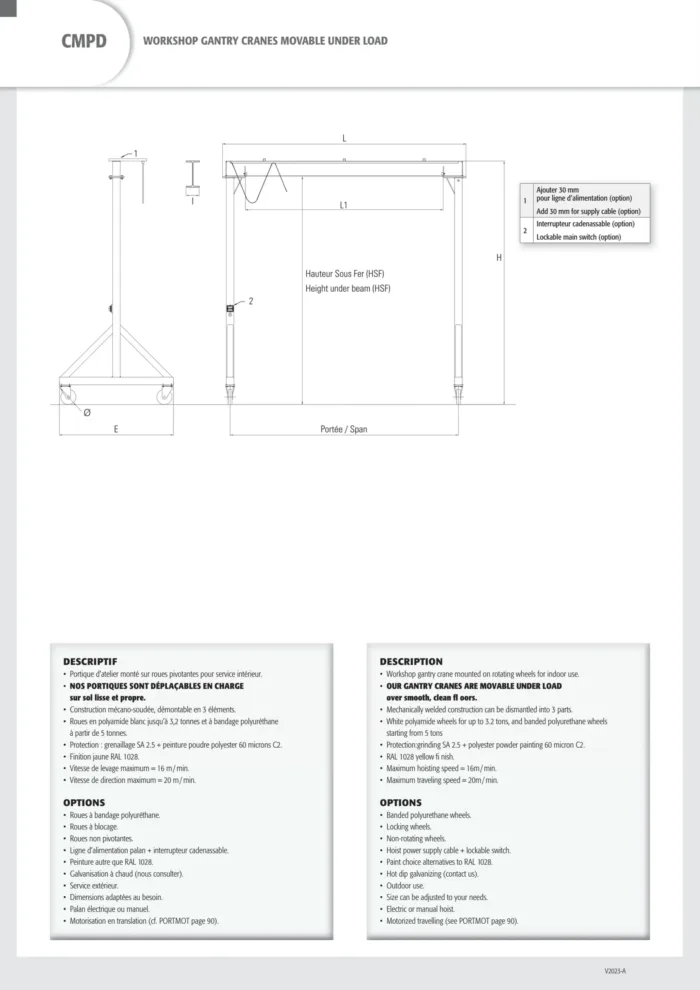

- beam width l = 170mm
- total height H = 6360mm (+30mm if power line)
- length between hoist stops L1 = 6950mm
- total length L = 8350mm
- total width E = 2700mm
- wheels Ø250mm
- polyester powder paint 60 microns equivalent category C2
