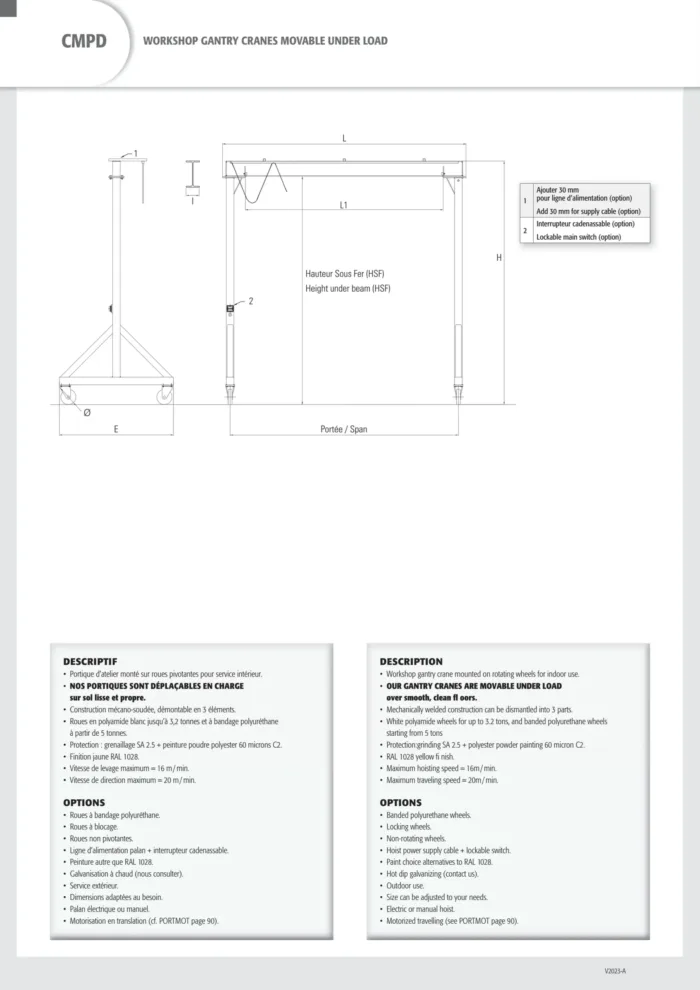

- WLL = 3200kg
- span = 6500mm
- height under beam HUB = 5500mm
- complies with EN 15011 (lifting class HC2, stability class S2)
- movable under load on smooth and clean ground
- total weight = 1380kg
- weight of one foot = 490kg
- beam weight = 400kg
- beam width l = 160mm
- total height H = 5830mm (+30mm if power line)
- length between hoist stops L1 = 5450mm
- total length L = 6850mm
- total width E = 2500mm
- wheels Ø250mm
- polyester powder paint 60 microns equivalent category C2
