Name: Very narrow aisle truck (man-up) REV15TS
SKU: REV15TS
Availability: BackOrder

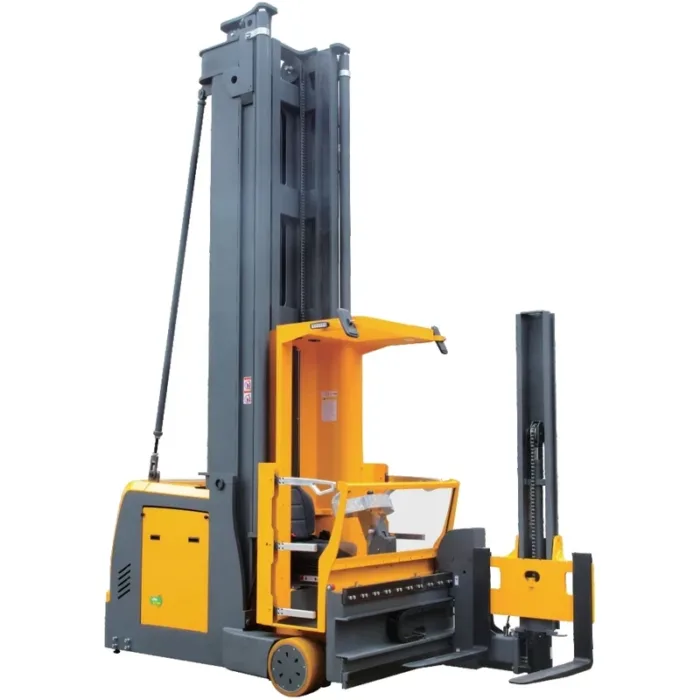

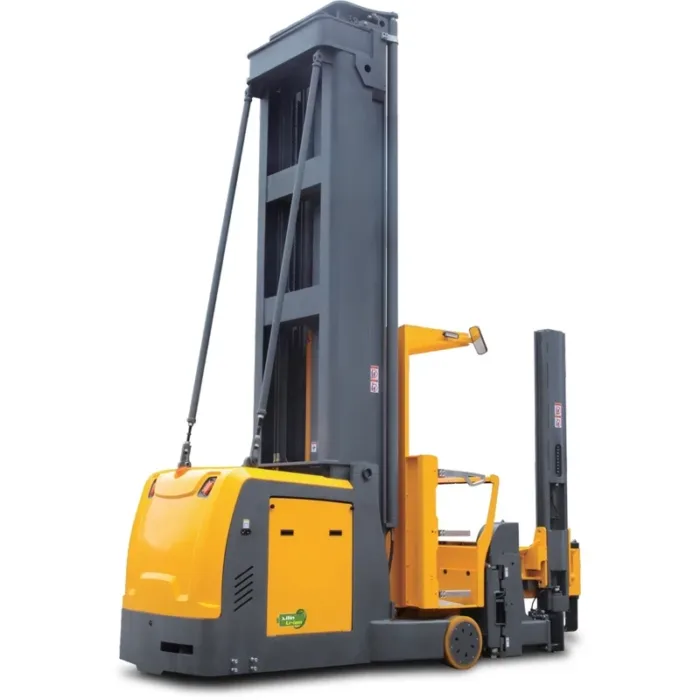

Very narrow aisle truck (man-up)

Very narrow aisle truck (man-up) is efficient and adaptable handling equipment used in a variety of sectors.

They are outfitted with cutting-edge technology and offer improved agility, allowing operators to easily move through confined locations.

Reach trucks have outstanding lifting capacities that make it possible to handle huge objects with ease.

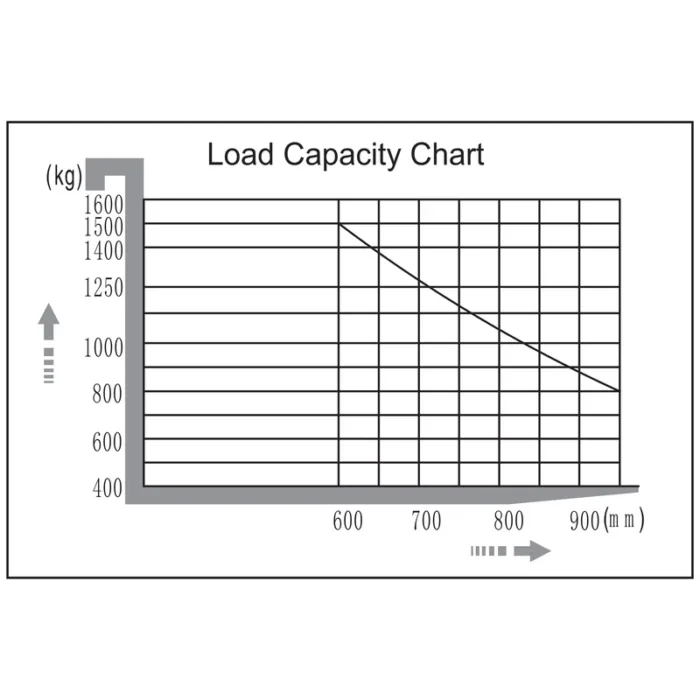

Load capacity: 1500kg (1.5t).

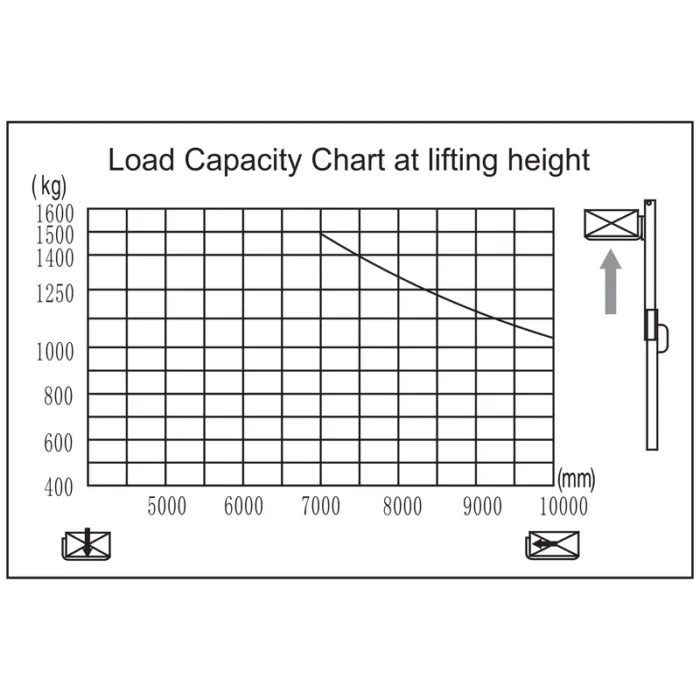

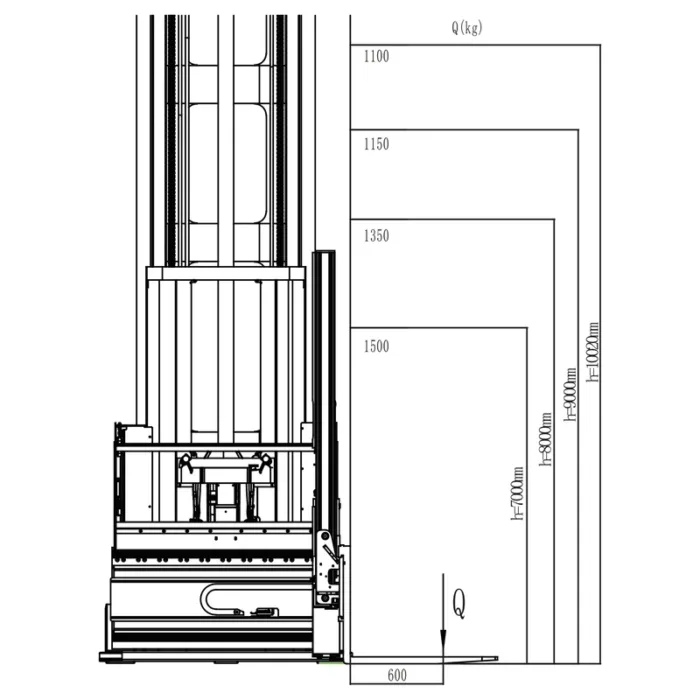

Lifting height: 9200mm (9.2m), 10000mm (10m), 10500mm (10.5m), 13000mm (13m).
Reach vehicle with three points of support, low center of gravity, excellent steering stability, and tight turning radius.
To independently conserve energy and reduce costs, there are two kinds of energy regeneration systems.
Lifting mast with high torsion resistance lifts up surplus load and reduces its shaking.
Full AC driving control technology offers more strength and more effectiveness.
The vehicle is secure and dependable because to its intelligent management system and CAN-Bus technology, which can accommodate different needs.
Reach truck with multi-axis control technology, therefore promotes work efficiency.
Self-balancing control system with a high center of gravity over the load demonstrates excellent vehicle stability.
The truck’s dynamic stability ensures it throughout travel by an interlock control between height and speed.
A multi-level security alarming system that ensures the safety of people and machinery comprises a laser anti-collision sensor, emergency stop, as well as audio and visible alarms.
Ergonomic handle eases the operation. A robust and versatile LCD instrument cluster is located in the center of the operating bridge.
Adopt a moving bridge that has changeable height and tilt angles so that the operator can sit in the appropriate posture.
Imported and well-known brand steering potentiometers, EM regulating valves, controllers, and other components.
Reach truck with 3 speed modes: slow, medium, fast are optional for different work conditions.
An on-board diagnostic system makes sure that repairs are done quickly and appropriately.

Additionally, the ergonomic controls offer operators smooth acceleration and accurate handling for maximum control and safety.

Electric reach trucks operate quietly therefore there is less noise, improving the working environment.
