Description

Basic specifications:

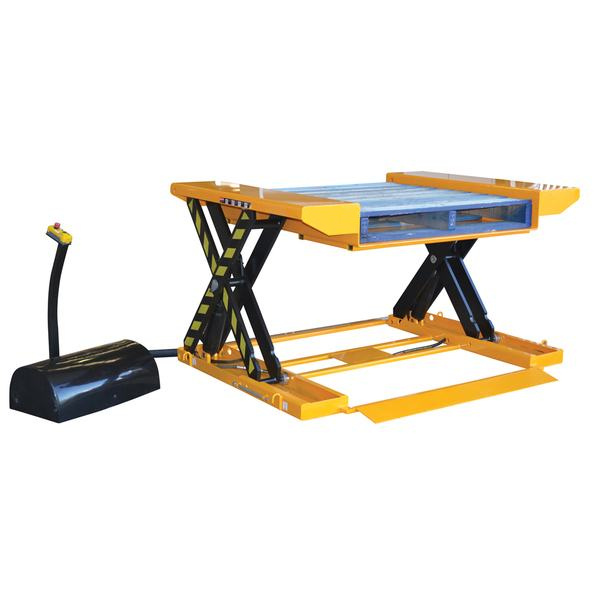

Ultra low profile lift tables, intended for intensive use.

Load capacity: 500kg (0,5t), 750kg (0.75t), 1000kg (1t), 1500kg (1.5t).
Platform length: 1270mm (1.27m).
Platform width: 1100mm (1.10m).

Hydraulic lift tables – Description and options

Table designed for industrial use.

Due to the very low lifting height, the table does not need to be built into the floor.

Satisfying to all European safety standards, including EN1570:1999.

The power supply and the control mechanism reside in a separate stand, safeguarded in accordance with the IP54 standard.

Lift tables with a safety contact frame, therefore it blocks lowering in the event of an obstacle.

A stand affixed to the outer casing holds the 24V control box, which features integrated UP, DOWN, and STOP buttons.

The outdoor unit has an overload safety valve and a compensated flow valve to control the descent speed, the power supply is three-phase 380V/50HZ.

Lift tables with built in safety valve, in order to stop the lowering of the lifting table in the event of a hose rupture.

Transport eyebolts, in order to allow easy movement and installation of the table.

Automatic lubrication of lifting points.

The loading ramp is an integral part of the standard equipment.

Ultra low profile lift tables can be produced according to the customer special requirements.

Shipping Info

We organize delivery for all EU countries.

The current shipping price depends on several factors. The key factors are the dimensions and weight of the cargo, the route (place of loading/destination), the total distance, the delivery zone (urban areas, remote places, islands…) and the current price of fuel. In order to enable the fastest, most reliable and favorable transport of goods, we use the TIMOCOM Marketplace.
The prices shown below are indicative and non-binding. A separate transportation request is made for each order.

When choosing a carrier, all important criteria such as reliability, safety and availability are systematically checked, so that the most favorable price is not taken as a key factor.

For larger orders, the transport price should be more favorable than indicated in the table.
For the calculation, it is necessary to sum the values of W, H, Wt and D. The values of W, H, Wt and D vary depending on the length (L) of the load.

For all islands that are not connected to the mainland by road, +55% should be added to the displayed price.

The cost of transportation is charged just before delivery.

Additional information

Weight	320 kg
Dimensions	1270 × 1100 × 250 mm
Load capacity	500kg, 750kg, 1000kg, 1500kg
Platform length	1270mm
Platform width	1100mm
Lowered height	25mm, 35mm
Max. lift height	800mm

Ultra low profile lift tables
