Basic specifications:

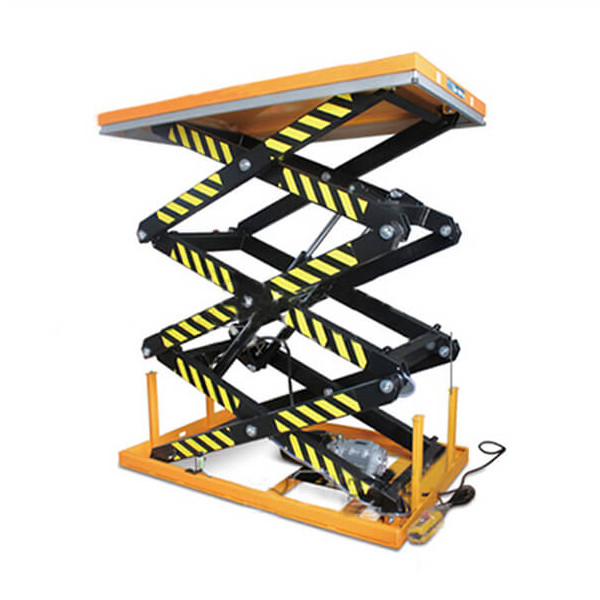

Triple scissor lift tables, intended for intensive use.
- Load capacity: 1000kg (1t), 2000kg (2t), 4000kg (4t), 5000kg (5t).
- Platform length: 1700mm (1.7m), 2980mm (2.98m).
- Platform width: 1000mm (1m), 1200mm (1.2m), 2000mm (2m).
Hydraulic lift tables – Description and options
Lift tables with AC motor.
24V control box.
The THS series of lifting tables obeys with EN 1570:1 and ANSI/ASME safety standards.
This model can be used as an overground or built in table.
Lift tables with aluminum contacts on the lower edge of the table in order to prevent injuries when lowering the table.
Internal power supply equipped with safety valve against overload and compensation valve for regulated lowering speed.
The cylinder has an integrated drainage system with a control valve in order to stop the lowering of the table in the event of a hose rupture.
Automatic lubrication of lifting points.
Contains eye bolts, therefore it allows easier installation of lifting tables.
Triple scissor lift tables can be produced according to the customer special requirements.
