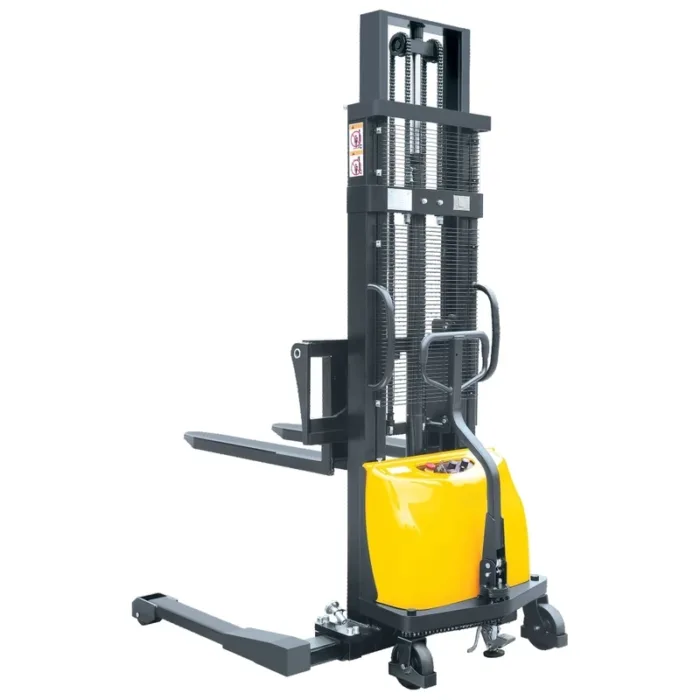

Semi-electric straddle pallet stacker

Semi-electric straddle pallet stacker is used to transport and manipulate pallet loads.
Electric warehouse pallet trucks are indispensable for optimizing warehouse and production processes, therefore they are reliable and energy efficient.

Load capacity: 1000kg (1t), 1500kg (1.5t).
Lifting height: 1600mm (1.6m,), 2500mm (2.5m), 3000mm (3m), 3500mm (3.5m).
Straddle stacker with handle-castor chain assist steering system greatly reduces the labor intensity.
Equipped with an explosion-proof valve to guard against fork drops and shield the user.
Over-discharge protection device, therefore greatly prolongs the battery life time.
Adjustable forks of the overall kind that you can lower to the same level as the legs.
A chain connects the side wheel and handle in order to create simple steering.
Straddle stacker with easy operating foot brake.

DELACCO semi-electric straddle pallet stackers are compact and robust in order to ensure long-term use.

DELACCO has a wide selection of electric warehouse pallet trucks for sale.

Beginning with entry-level electric pallet stacker for light-duty applications and progressing to heavy-duty stackers powered by lead-acid or lithium-ion batteries.

Shipping Info

We organize delivery for all EU countries.

The current shipping price depends on several factors. The key factors are the dimensions and weight of the cargo, the route (place of loading/destination), the total distance, the delivery zone (urban areas, remote places, islands…) and the current price of fuel. In order to enable the fastest, most reliable and favorable transport of goods, we use the TIMOCOM Marketplace.
The prices shown below are indicative and non-binding. A separate transportation request is made for each order.

When choosing a carrier, all important criteria such as reliability, safety and availability are systematically checked, so that the most favorable price is not taken as a key factor.

For larger orders, the transport price should be more favorable than indicated in the table.
For the calculation, it is necessary to sum the values of W, H, Wt and D. The values of W, H, Wt and D vary depending on the length (L) of the load.

For all islands that are not connected to the mainland by road, +55% should be added to the displayed price.

The cost of transportation is charged just before delivery.

Additional information

Weight	N/A
Dimensions	N/A
Load capacity	1000kg, 1500kg
Lift height	1600mm, 2500mm, 3000mm, 3300mm, 3500mm
Initial lift	no
Engine type	DC
Folding platform	no
Electric power steering	no
Battery type/voltage/capacity	GEL/12/120, GEL/24/120

Semi-electric straddle pallet stacker PEVV10-DPV/PEVV15-DPV

2.280,00 € – 3.410,00 € excl. tax

Semi-electric warehouse stackers are dependable and energy-efficient since they are essential for optimizing warehouse and manufacturing processes. The most demanding applications accessible in industry are satisfied by material handling equipment, which is used in many different industries.
