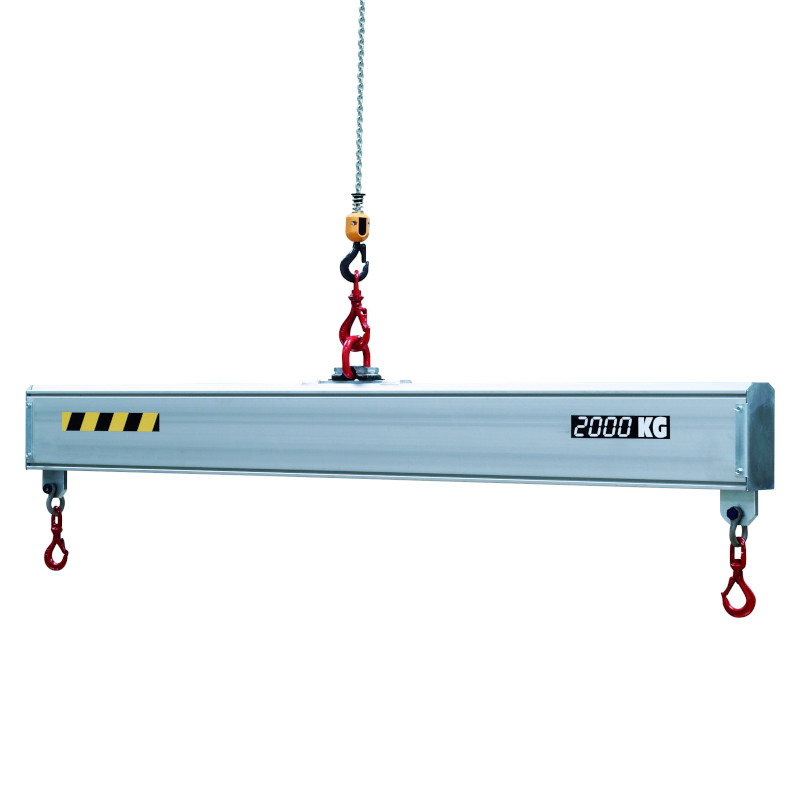

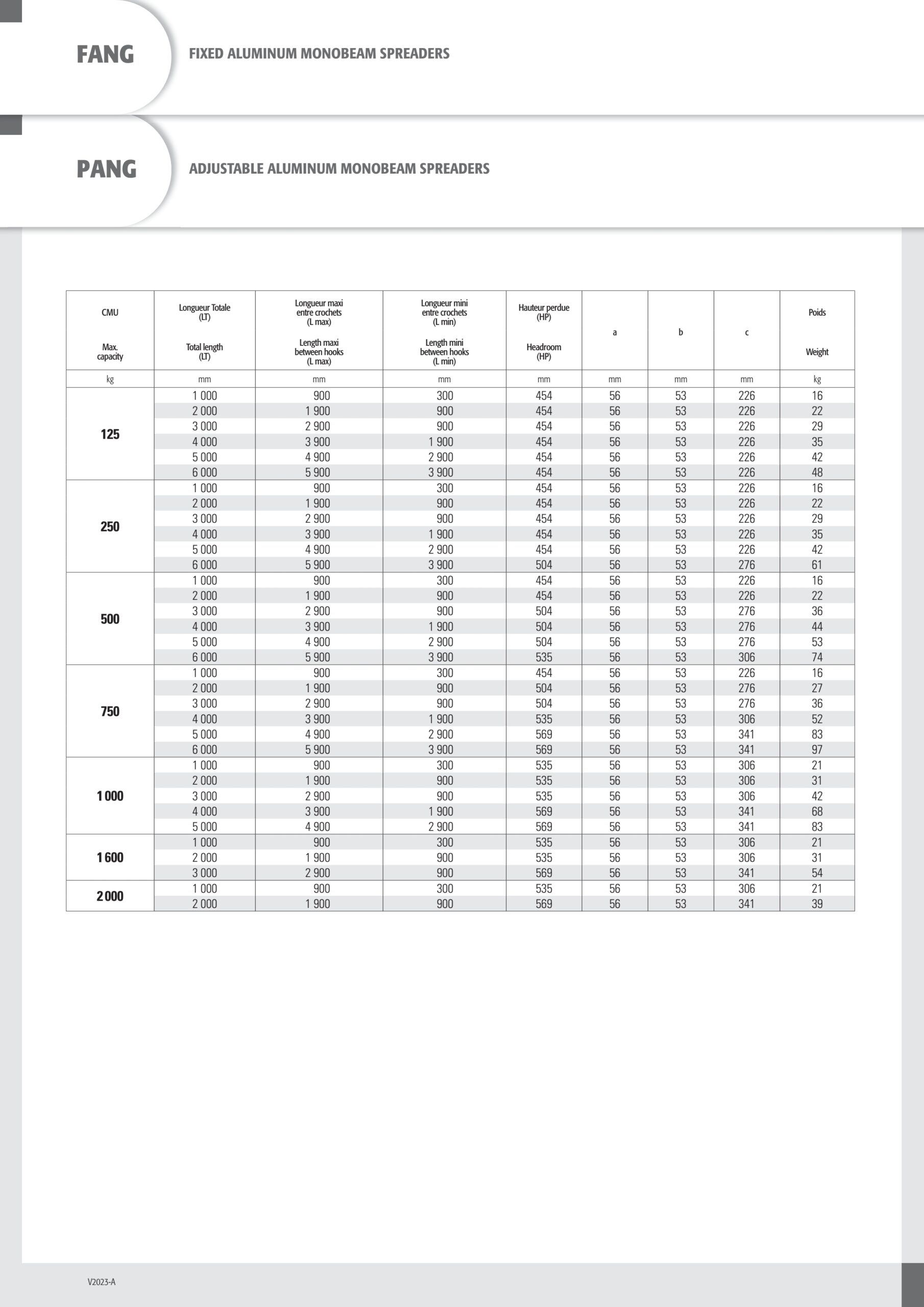

Fixed aluminum lifting monobeam 750kg span 3m – Basic specifications:
- load capacity 125kg / 250kg / 500kg / 750kg / 1000kg / 1600kg / 2000kg
- span 3m / 2m / 3m / 4m / 5m / 6m
- low headroom

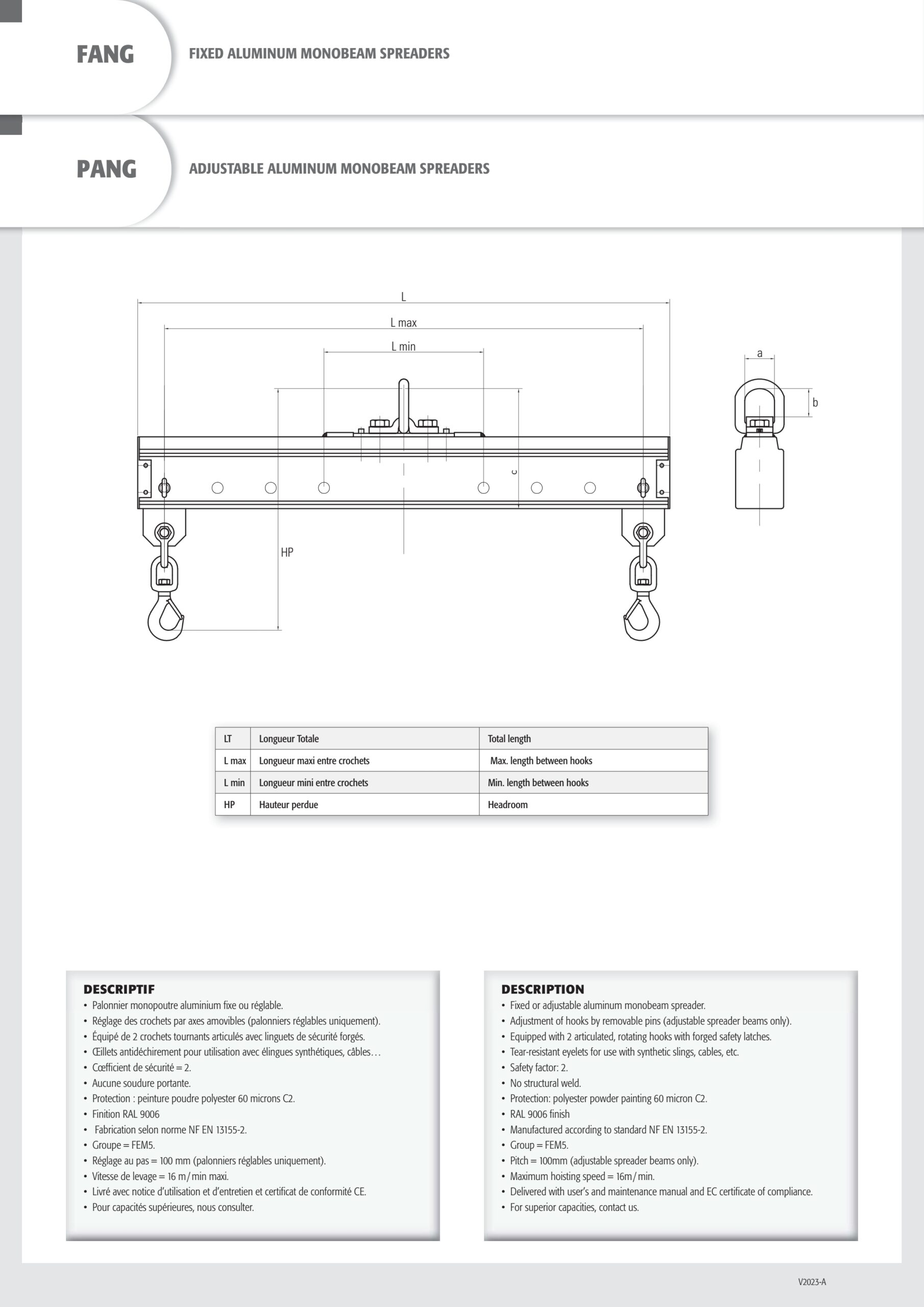

Fixed aluminum lifting monobeam 750kg span 3m – Description and options:
- fixed aluminum monobeam spreader
- hooks can be adjusted using detachable pins (only for adjustable spreader beams)
- comes with two rotating, articulated hooks with forged safety latches
- use tear-resistant eyelets with cables, slings, and other synthetic materials
- not a single structural weld
- paint with polyester powder C2 60 microns, finish RAL 9006
- group FEM5
- pitch for adjustable spreader beams 100mm
- according to standard EN 13155
- maximum hoisting speed 16 m/min
The lifting beam is manufactured exclusively to order.
