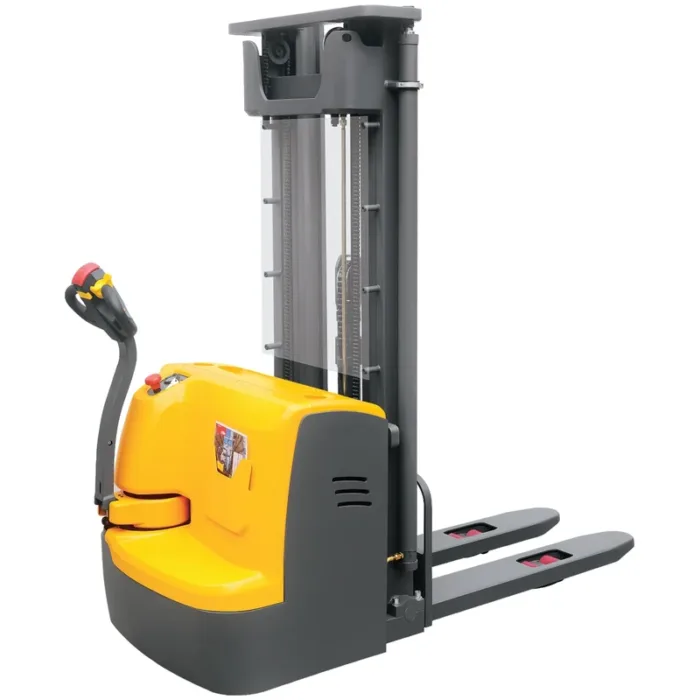

Electric walkie pallet stacker

Electric walkie pallet stacker is used to transport and manipulate pallet loads.
Electric warehouse pallet trucks are indispensable for optimizing warehouse and production processes, therefore they are reliable and energy efficient.

Structural and safety (Electric pallet stacker):

Load capacity: 1000kg (1t), 1200kg (1.2t), 1500kg (1.5t).
Lifting height: 1600mm (1.6m), 2500mm (2.5m), 3000mm (3m), 3300mm (3.3m), 3500mm (3.5m), 4500mm (4.5m), 5000mm (5m), 5600mm (5.6m).
Modern AC control system and regenerative brake system.
Multipurpose display with hour meter and BDI, etc..
Emergency reversing device.
Auto deceleration system utilizes regenerative braking.
The trucks are safeguarded against overloads by an internal pressure relief valve.
Emergency power disconnect.
Electric pallet stacker with stepless speed control.
With lifting limit switch, in order to shut off pump motor at the max. lifting height.
Vertical drive motor has a small turning radius.
The motor structure is resistant to both dust and water.

Optimum structural design:

Electric pallet stacker with low barycenter, therefore ensures the stable operation.
Small turning radius and straightforward maintenance are guaranteed by the vertical driving wheel.
Water-proof and dust-proof motor structure, in order to keep the braking and motor more durable and reliable.
The mast and the frame are dividable and therefore exchangeable.
Complete free lifting, ideal for low roof housing (3m lift height truck can enter into a 2m door).

Serviceability:

Wiring complexity is lower and reliability upgrade via CANbus technology.
Advanced AC control system with brushless motor.
Auto deceleration system utilises regenerative braking.
Replacement of a side-way battery with a roll-out system is relatively simple.

DELACCO electric walkie pallet stackers are compact and robust in order to ensure long-term use.

DELACCO has a wide selection of electric pallet stackers for sale.

Beginning with entry-level electric pallet stacker for light-duty applications and progressing to heavy-duty stackers powered by lead-acid or lithium-ion batteries.

Shipping Info

We organize delivery for all EU countries.

The current shipping price depends on several factors. The key factors are the dimensions and weight of the cargo, the route (place of loading/destination), the total distance, the delivery zone (urban areas, remote places, islands…) and the current price of fuel. In order to enable the fastest, most reliable and favorable transport of goods, we use the TIMOCOM Marketplace.
The prices shown below are indicative and non-binding. A separate transportation request is made for each order.

When choosing a carrier, all important criteria such as reliability, safety and availability are systematically checked, so that the most favorable price is not taken as a key factor.

For larger orders, the transport price should be more favorable than indicated in the table.
For the calculation, it is necessary to sum the values of W, H, Wt and D. The values of W, H, Wt and D vary depending on the length (L) of the load.

For all islands that are not connected to the mainland by road, +55% should be added to the displayed price.

The cost of transportation is charged just before delivery.

Additional information

Weight	N/A
Load capacity	1000kg, 1200kg, 1500kg
Lift height	1600mm, 2500mm, 3000mm, 3300mm, 3500mm, 4500mm, 5000mm, 5600mm
Initial lift	no
Engine type	AC
Folding platform	no
Electric power steering	no
Battery type/voltage/capacity	GEL/24/120, LA/24/200, LA/24/240, LA/24/300, LFP/24/125, LFP/24/225

Electric walkie pallet stacker EVV10 EVV12 EVV15

7.780,00 € – 8.850,00 € excl. tax

Walkie type electric stacker provides a cost effective solution for applications involving medium lifting storage and short distance pallets transportation.
