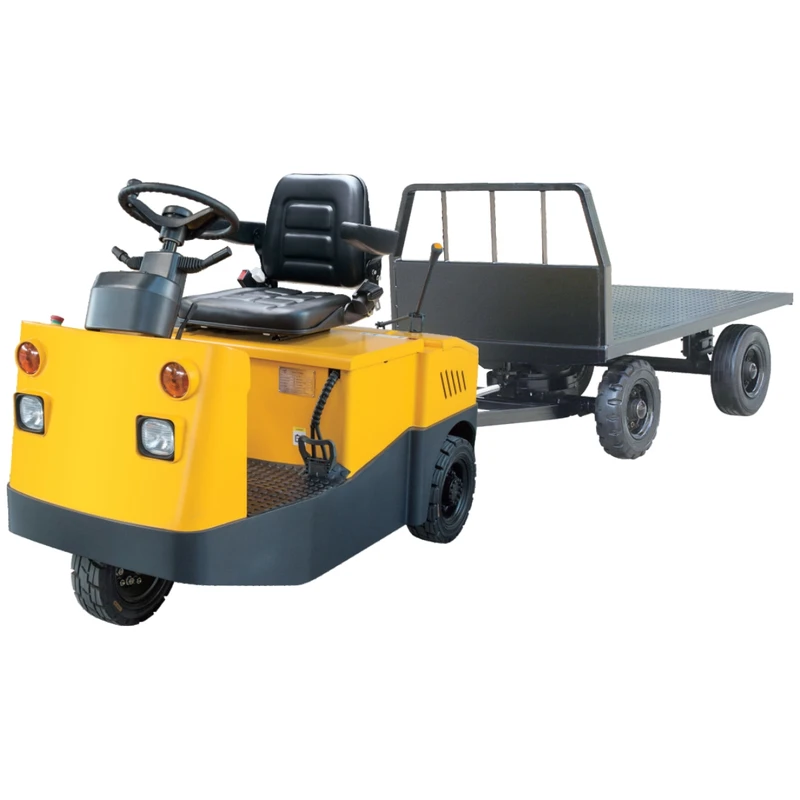

Electric tow tractor VEV
Electric tow tractor VEV is efficient vehicle that play a key role in the smooth operation of warehouses and distribution centers.
These robust vehicles provide reliable solutions for moving heavy loads within a warehouse environment.
Tow tractors with powerful engines that enable them to easily transport large quantities of goods and equipment.
With their solid construction and maneuverability, tow tractors efficiently pass through narrow aisles and tight spaces. Ensuring optimal utilization of space within the warehouse.
- Electric tow tractor
- Rated capacity: 2000kg (2t), 3000kg (3t), 5000kg (5t), 6000kg (6t), 10000kg (10t)
- Rated drawbar pull: 500N (2t), 750N (3t), 1250N (5t), 1500N (6t), 2500N (10t)

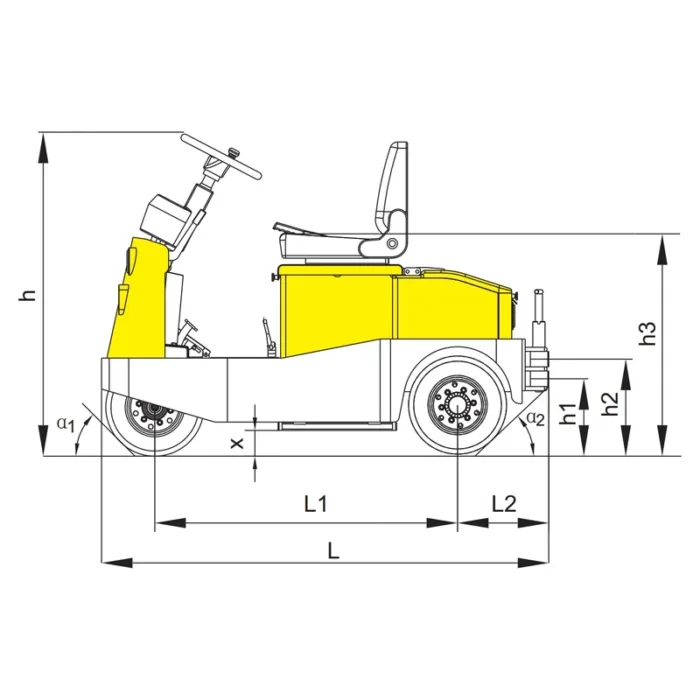

- Overall length: 1720mm (2t/3t), 1940mm (5t/6t), 2485mm (10t)

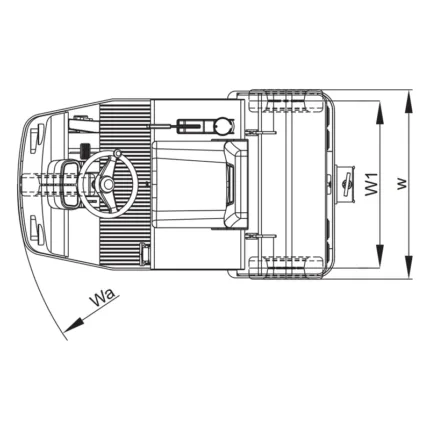

- Overall width: 970mm (2t/3t), 1085mm (5t/6t), 1160mm (10t)
- Service brake: hydraulic
STABILITY:
- Tow tractors with new advanced car outline, completely opened cover, distinguished and beautiful.
- Full AC electric system has brake-releasing function, therefore more easy and comfortable to operate.
- The issue of the DC motor carbon brush is totally resolved by maintenance-free motors.
- New large-screen display instrument, in order to provide all kinds of information more clearly and directly for the operator.
- Tow tractors with new opened high-range steering design, light to steering and easy to maintain.
- The parking brake adopts electromagnetic brake. After parking, the truck locks itself automatically, preventing the risk of the truck slipping if the hand brake isn’t applied.
- Side-way battery (optional).
OPTION:
- seat with OPS (operator presence system)
- front LED work lamp
- blue light
- AC power system
- rear mirrors
- Axle designs with a “H” provide good stability.
- excellent stability by the batteries’ low center of gravity and location on the frame
- multiple functions are displayed, including battery status and trouble codes
- the level of safety is increased by the use of hand brakes and hydraulic brakes
- easy-open back cover to open for maintenance and replacement of parts such as drive wheel, oil tube, accelerator, controller etc.
*Option: VEV20 Lithium battery 200AH (Charger 48V/100A) / VEV30 Lithium battery 250AH (Charger 48V/100A) / VEV50 Lithium battery 300AH (Charger 48V/100A) / VEV60 Lithium battery 350AH (Charger 48V/100A)
1KG=2.205LB 1INCH=25.40MM
Tow tractors with a number of safety features, in order to ensure the operator’s well-being.
Ergonomic seating arrangement and clear visibility from the driver’s seat, therefore they prioritize safety and minimize the risk of accidents.
Tow tractors can be equipped with different towing mechanisms, such as towing hooks or hitches, which allow them to tow different types of trailers and carts.
Versatility significantly increases productivity and efficiency within the warehouse, as operators can easily customize tractors to meet specific material handling requirements.
