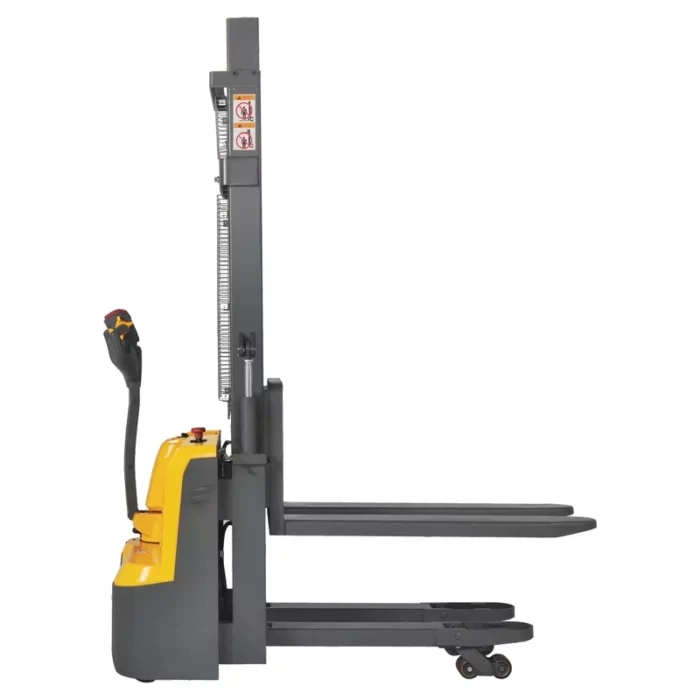

Electric stacker with initial lift

Electric stacker with initial lift is used to transport and manipulate pallet loads.
Electric warehouse pallet trucks are indispensable for optimizing warehouse and production processes, therefore they are reliable and energy efficient.

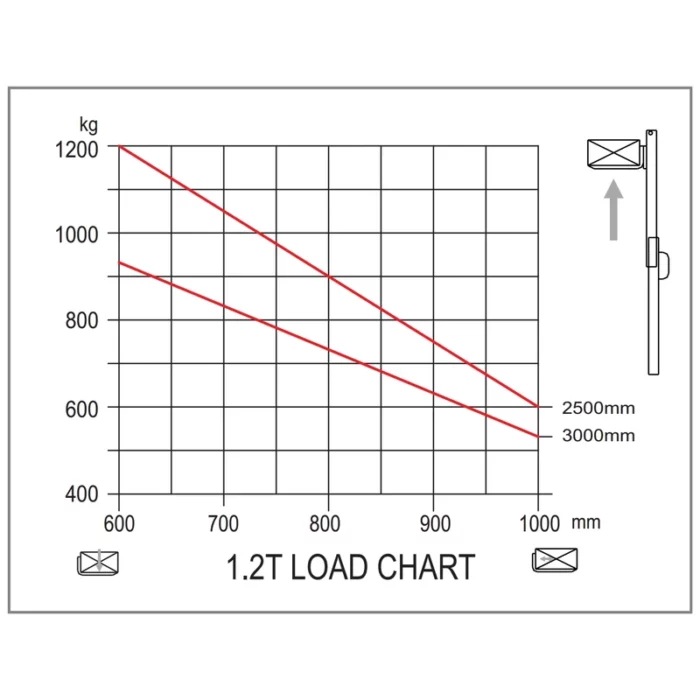

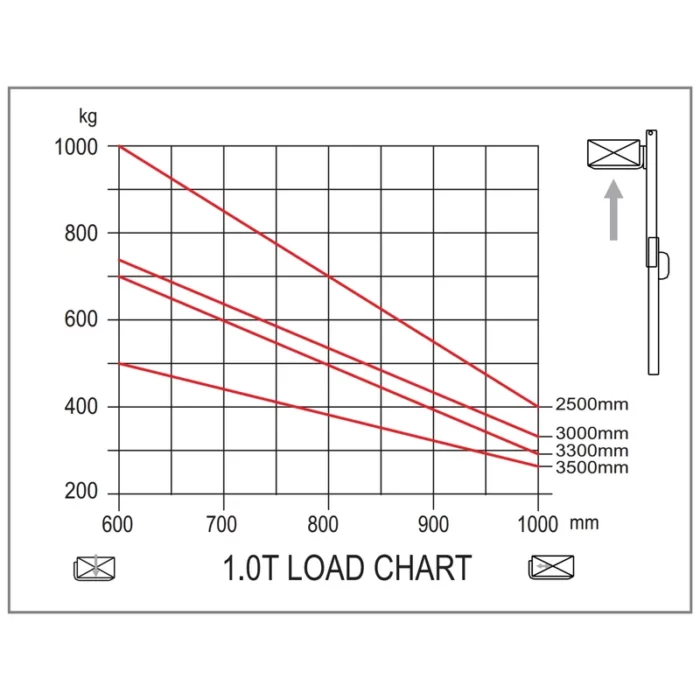

Load capacity: 1000kg (1t), 1200kg (1.2t).

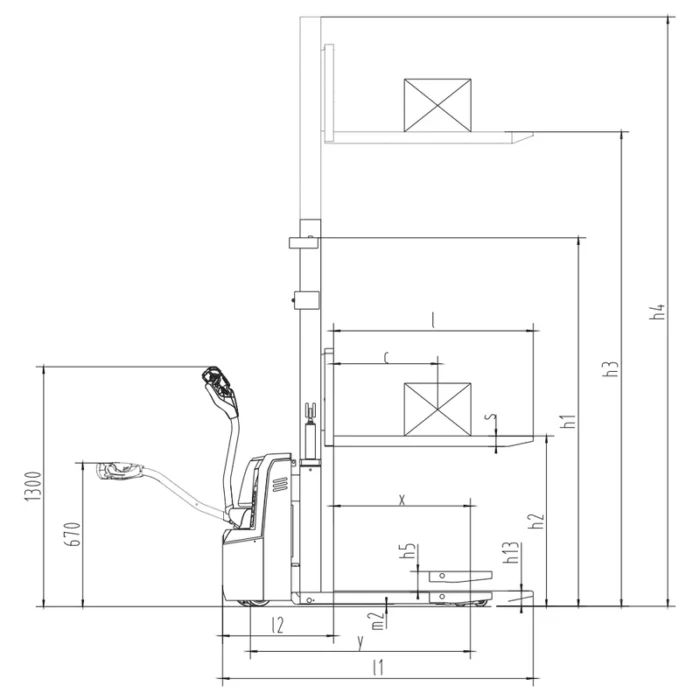

Lifting height: 1600mm (1.6m), 2500mm (2.5m), 3000mm (3m), 3300mm (3.3m).
Electric stacker with small size and a compact design, in order to provide great visibility.
With a low center of gravity and a side tiller, the 4-point support structure provides excellent stability.
Handle two pallets simultaneously thanks to the double pallet design, which also provides ground clearance for navigating ramps, dock levelers, and bridges.
Small turning radius, dustproof, waterproof motor, and simple maintenance are all features of the floor type driving wheel.
DELACCO electric stacker with initial lift, electromagnetic parking brake and effective ramp braking capability.
Battery protection and battery life extension are provided by BDI’s low voltage cut off protection technology.
The drive wheel life is ensured by the adjustable balance wheel height.
Electric stacker with low noise development, quite motor.

DELACCO electric stacker with initial lift is compact and robust in order to ensure long-term use.

DELACCO has a wide selection of electric warehouse pallet trucks for sale.

Beginning with entry-level electric pallet stacker for light-duty applications and progressing to heavy-duty stackers powered by lead-acid or lithium-ion batteries.

Shipping Info

We organize delivery for all EU countries.

The current shipping price depends on several factors. The key factors are the dimensions and weight of the cargo, the route (place of loading/destination), the total distance, the delivery zone (urban areas, remote places, islands…) and the current price of fuel. In order to enable the fastest, most reliable and favorable transport of goods, we use the TIMOCOM Marketplace.
The prices shown below are indicative and non-binding. A separate transportation request is made for each order.

When choosing a carrier, all important criteria such as reliability, safety and availability are systematically checked, so that the most favorable price is not taken as a key factor.

For larger orders, the transport price should be more favorable than indicated in the table.
For the calculation, it is necessary to sum the values of W, H, Wt and D. The values of W, H, Wt and D vary depending on the length (L) of the load.

For all islands that are not connected to the mainland by road, +55% should be added to the displayed price.

The cost of transportation is charged just before delivery.

Additional information

Weight	N/A
Dimensions	N/A
Load capacity	1000kg, 1200kg
Lift height	1600mm, 2500mm, 3000mm, 3300mm
Initial lift	yes
Engine type	DC
Folding platform	no
Electric power steering	no
Battery type/voltage/capacity	GEL/24/105, LFP/24/100

Electric stacker with initial lift EVV10B-I/EVV12B-I

3.550,00 € – 4.850,00 € excl. tax

This Light duty type electric stacker EVV12B-I in double–pallet using, support arm lift 1000kgs, and mast lift 1000kg (total load weight max is 1000kg). Specifically designed for intensive stocking operations at low height warehouse. It is the best solution for smoothly passing in crossing door or dock on uneven ground.
