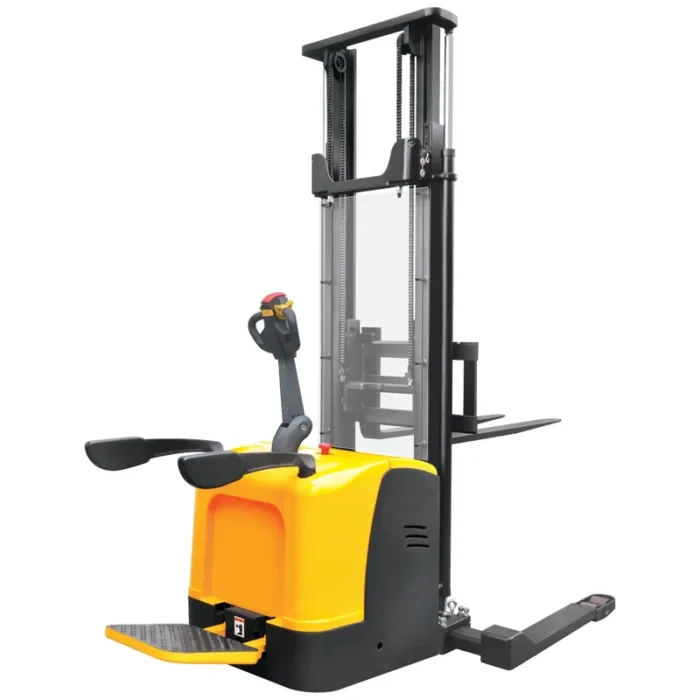

Electric rider straddle stacker

Electric rider straddle stacker is used to transport and manipulate pallet loads.
Electric warehouse pallet forklifts are indispensable for optimizing warehouse and production processes, therefore they are reliable and energy efficient.

Safety and productivity:

Load capacity: 1000kg (1t), 1200kg (1.2t), 1500kg (1.5t).
Lifting height: 1600mm (1.6m), 2500mm (2.5m), 3000mm (3m), 3300mm (3.3m), 3500mm (3.5m), 4500mm (4.5m), 5000mm (5m), 5600mm (5.6m).
AC Motor eliminates replacement of carbon brush.
Multi-function display with BDI and hour meter.
Electric rider stacker with side way battery, therefore it is easy to maintain.
Damping cushion for low-noise operation.
More overall safety is provided by the handle’s emergency reversing device.
Auto deceleration function in order to make operation more safely.
Trucks are shielded from overloads and their dependability is increased by an integrated pressure relief valve.
Applying brakes while holding the handle horizontal and upright improves the truck’s safety.
Emergency power disconnect switch.
Turtle low speed switch.
Electric rider stacker with stepless speed control.

Optimum structural design:

Low center of gravity, in order to ensure stable operation.
Small turning radius and straightforward maintenance are provided by the vertical driving wheel
The brake system and motor are more dependable and long-lasting by their water-proof and dust-proof construction.
The mast and the frame are dividable and exchangeable.

DELACCO electric rider straddle stacker are compact and robust in order to ensure long-term use.

DELACCO has a wide selection of electric warehouse pallet forklifts for sale.

Beginning with entry-level electric pallet stacker for light-duty applications and progressing to heavy-duty stackers powered by lead-acid or lithium-ion batteries.

Shipping Info

We organize delivery for all EU countries.

The current shipping price depends on several factors. The key factors are the dimensions and weight of the cargo, the route (place of loading/destination), the total distance, the delivery zone (urban areas, remote places, islands…) and the current price of fuel. In order to enable the fastest, most reliable and favorable transport of goods, we use the TIMOCOM Marketplace.
The prices shown below are indicative and non-binding. A separate transportation request is made for each order.

When choosing a carrier, all important criteria such as reliability, safety and availability are systematically checked, so that the most favorable price is not taken as a key factor.

For larger orders, the transport price should be more favorable than indicated in the table.
For the calculation, it is necessary to sum the values of W, H, Wt and D. The values of W, H, Wt and D vary depending on the length (L) of the load.

For all islands that are not connected to the mainland by road, +55% should be added to the displayed price.

The cost of transportation is charged just before delivery.

Additional information

Load capacity	1000kg, 1200kg, 1500kg
Lift height	1600mm, 2500mm, 3000mm, 3300mm, 3500mm, 4500mm, 5000mm, 5600mm
Initial lift	no
Engine type	AC
Folding platform	yes
Electric power steering	option
Battery type/voltage/capacity	GEL/24/120, LA/24/200, LA/24/240, LA/24/300, LFP/24/225

Electric rider straddle stacker EVV10PV-P/EVV12PV-P/EVV15PV-P

Starting with a light-duty electric pallet stacker for entry-level applications and moving up to lead-acid or lithium-ion battery-powered heavy-duty stackers.
