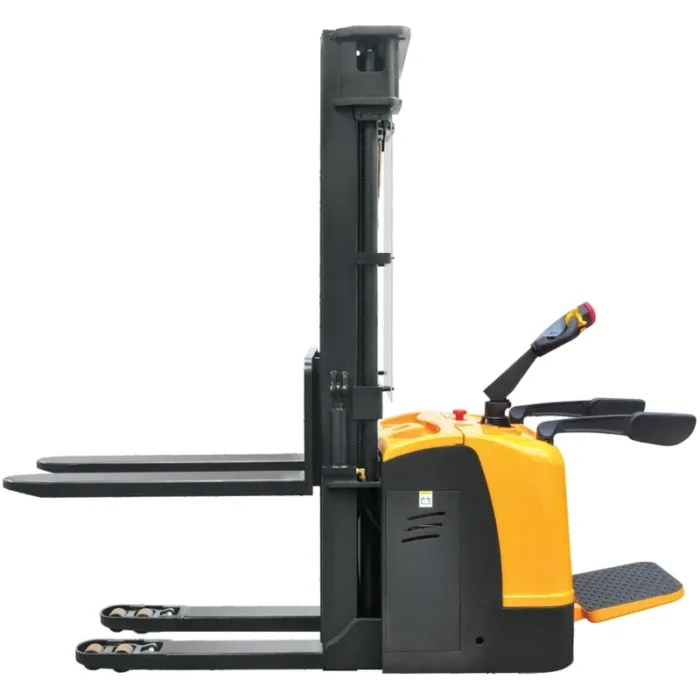

Name: Electric rider stacker with initial lift EVV15-IP
SKU: EVV15-IP
Availability: BackOrder

Electric rider stacker with initial lift

Electric rider stacker with initial lift in order to transport and manipulate pallet loads.
Electric warehouse pallet trucks are indispensable for optimizing warehouse and production processes, therefore they are reliable and energy efficient.

Load capacity: 1500kg (1.5t).
Lifting height: 2500mm (2.5m), 3000mm (3m), 3300mm (3.3m), 3500mm (3.5m).
The 4-points support structure with side tiller, therefore low center of gravity design with excellent stability.
Double pallet design: two pallets at the same time, and the initial lift of the load leg increases ground clearance so that ramps, dock levelers, and bridging plates can pass over with ease.
Small turning radius, dust- and water-resistant motor, and simple maintenance are all features of pallet stacker with vertical driving wheels.
Effective electromagnetic parking brake, AC motor without carbon brush, and good ramp braking performance.
Wide viewing for operators is provided by the free lifting mast’s two side cylinders.

DELACCO electric rider stacker with initial lifts are compact and robust in order to ensure long-term use.

DELACCO has a wide selection of electric warehouse pallet trucks for sale.

Beginning with entry-level electric pallet stacker for light-duty applications and progressing to heavy-duty stackers powered by lead-acid or lithium-ion batteries.

Shipping Info

We organize delivery for all EU countries.

The current shipping price depends on several factors. The key factors are the dimensions and weight of the cargo, the route (place of loading/destination), the total distance, the delivery zone (urban areas, remote places, islands…) and the current price of fuel. In order to enable the fastest, most reliable and favorable transport of goods, we use the TIMOCOM Marketplace.
The prices shown below are indicative and non-binding. A separate transportation request is made for each order.

When choosing a carrier, all important criteria such as reliability, safety and availability are systematically checked, so that the most favorable price is not taken as a key factor.

For larger orders, the transport price should be more favorable than indicated in the table.
For the calculation, it is necessary to sum the values of W, H, Wt and D. The values of W, H, Wt and D vary depending on the length (L) of the load.

For all islands that are not connected to the mainland by road, +55% should be added to the displayed price.

The cost of transportation is charged just before delivery.

Additional information

Weight	1260 kg
Dimensions	2058 × 850 mm
Load capacity	1500kg
Load center	600mm
Load distance	768mm
Engine type	AC
Tyre size, front	250x70mm
Tyre size, rear	80x70mm
Additional wheels (dimensions)	150x47mm
Number of wheels, front/rear (x=driving) Φ	1X+1/4
Height, mast lowered	1757mm, 2007mm, 2022mm, 2157mm, 2182mm, 2257mm, 2382mm
Free lift	1300mm, 1550mm, 1700mm, 1800mm, 1570mm, 1740mm, 1940mm
Max. lift height	2500mm, 3000mm, 3300mm, 3500mm, 4500mm, 5000mm, 5600mm
Initial lift	yes
Overall length	2058mm
Length to face of forks	988mm
Overall width	850mm
Fork dimensions	60x180x1070mm (1150)
Width overall forks	570/650mm
Aisle width for pallets 800x1200mm	2575mm
Turning radius	1655mm
Travel speed, laden/unladen	7.0/7.1km/h
Lifting speed laden/unladen	0.11/0.16m/s
Lowering speed laden/unladen	0.12/0.12m/s
Folding platform	yes
Electric power steering	option
Battery type/voltage/capacity	LA/24/240, LA/24/300, LFP/24/125, LFP/24/225
Battery weight	220kg, 260kg
Battery dimensions (I/W/H)	675x254x500mm
Service weight (with battery)	1260kg

Electric rider stacker with initial lift EVV15-IP

10.640,00 € – 16.140,00 € excl. tax

This heavy stacker includes two models with a rated load capacity of 1500kgs. Specifically designed for intensive stocking operations at medium height warehouse. 2000kgs load can be transported using the initial lift function.
