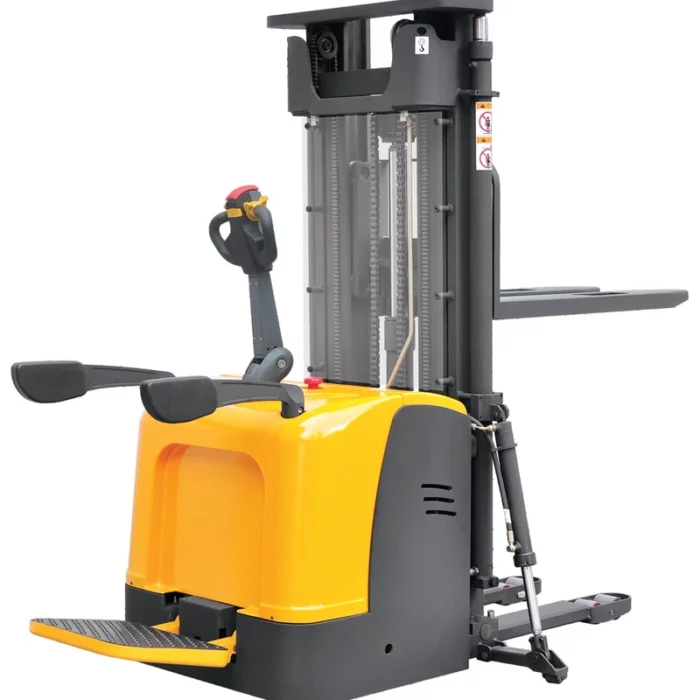

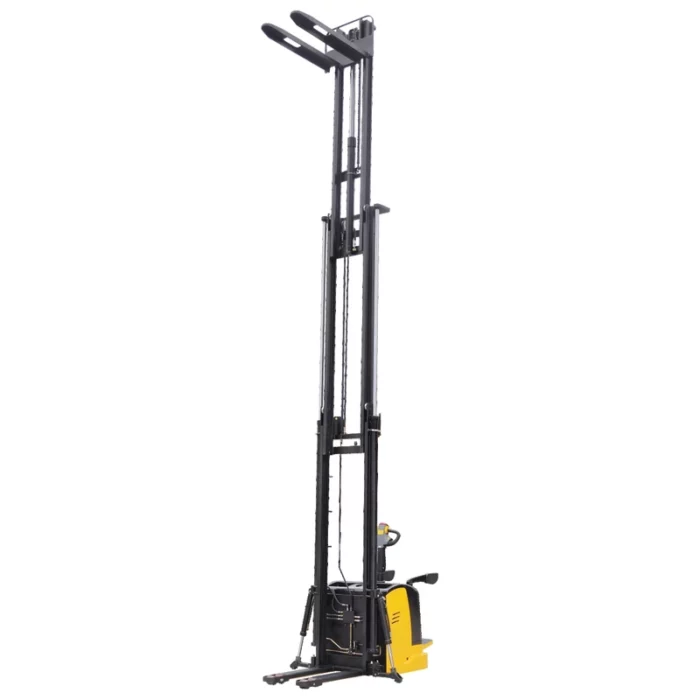

Electric rider pallet stacker

Electric rider pallet stacker is used to transport and manipulate pallet loads.
Electric warehouse pallet trucks are indispensable for optimizing warehouse and production processes, therefore they are reliable and energy efficient.

Safety And Productivity (Electric pallet stacker):

• Load capacity: 2000kg (2t).
• Lifting height: 1600mm (1.6m), 2500mm (2.5m), 3000mm (3m), 3300mm (3.3m), 3500mm (3.5m), 4500mm (4.5m), 5000mm (5m), 5600mm (5.6m).
• Electric pallet stacker has AC Motor in order to eliminate replacement of carbon brush.
• Multi-function display with BDI and hour meter.
• Side way battery, therefore it is easy to maintain.
• Damping cushion for low-noise operation.
• Higher operating safety is provided by an emergency reversing feature built into the handle.
• Electric pallet stacker has auto deceleration function in order to make operation more safely.
• Trucks are shielded from overloads and their dependability is increased by an integrated pressure relief valve.
• Applying brakes while holding the handle horizontal and upright improves the truck’s safety.
• Emergency power disconnect switch.
• Turtle-shaped low speed switch.
• Electric pallet stacker with stepless speed control.
• Supporting legs on both sides of the triplex mast (Duplex mast without supporting legs).

Optimum Structural Design:

• Ensuring stable operation, because of low center of gravity.
• Small turning radius and straightforward maintenance are provided by the vertical driving wheel.
• Water-proof and dust-proof construction, as a result the brake system and motor are kept more dependable and long-lasting.
• You can separate and switch out the mast and the frame.
• DELACCO electric rider stacker with full free lifting, therefore fit for working in low roof house.

Serviceability:

• Low voltage protection setting, for the purpose of prolonging battery life time.
• The circuit is simplified by the focused design of the electronic components, which also makes it simple to assemble, troubleshoot, and maintain.
• CANbus technology improves reliability and reduces wiring complexity.
• Hall element extends component life by reducing wear on components.

DELACCO electric rider pallet stacker are compact and robust in order to ensure long-term use.

DELACCO has a wide selection of electric warehouse pallet trucks for sale.

Beginning with entry-level electric pallet stacker for light-duty applications and progressing to heavy-duty stackers powered by lead-acid or lithium-ion batteries.
