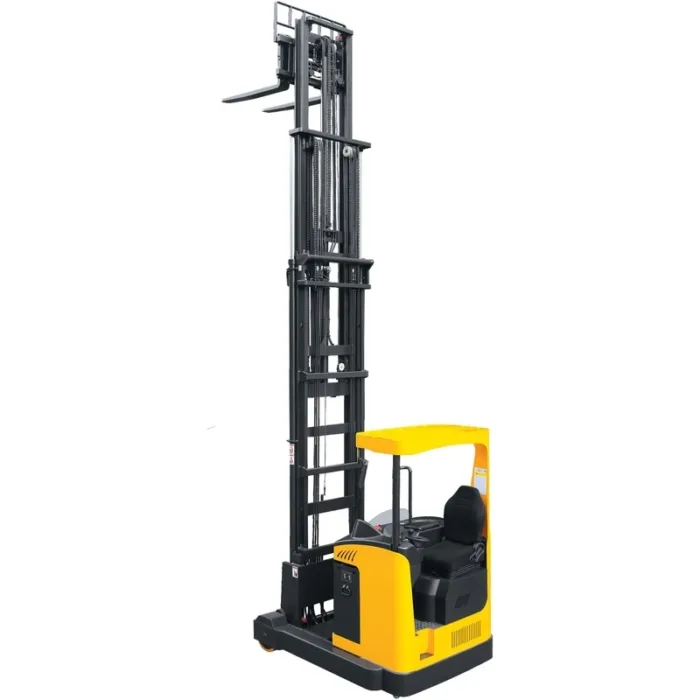

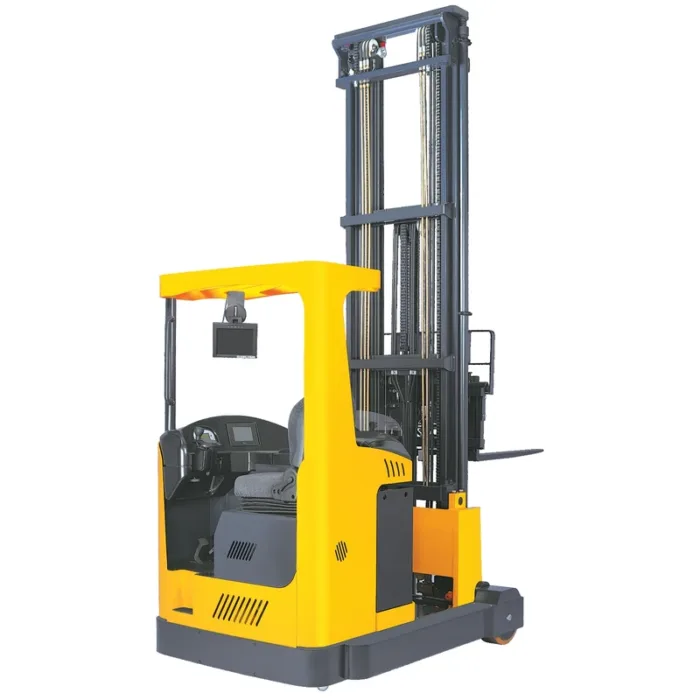

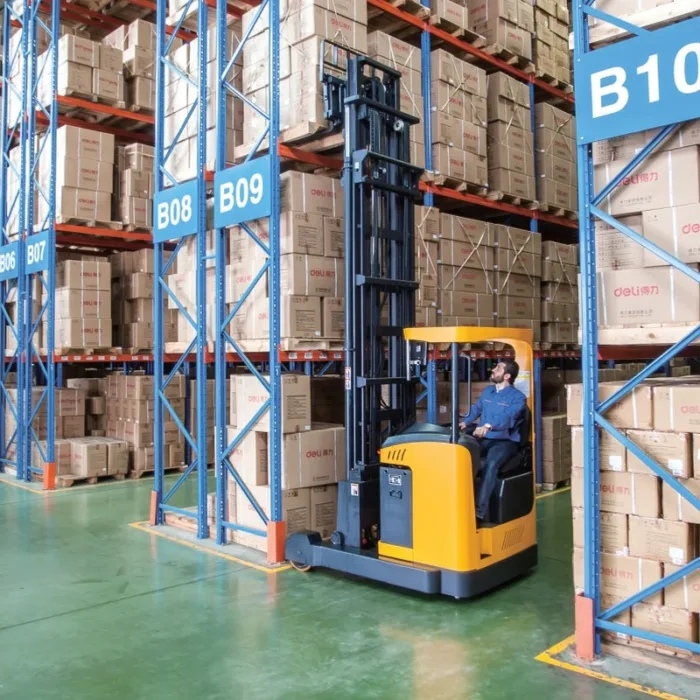

Electric reach truck REV20VP
Electric reach truck REV20VP is efficient and adaptable handling equipment used in a variety of sectors.
They are outfitted with cutting-edge technology and offer improved agility, allowing operators to easily move through confined locations.
Reach trucks have outstanding lifting capacities that make it possible to handle huge objects with ease.
Standard (Electric reach truck REV20VP):

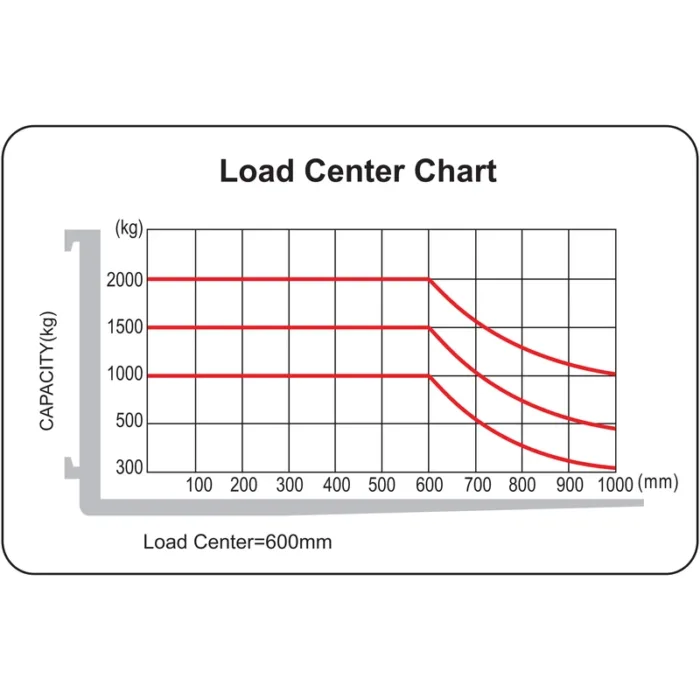

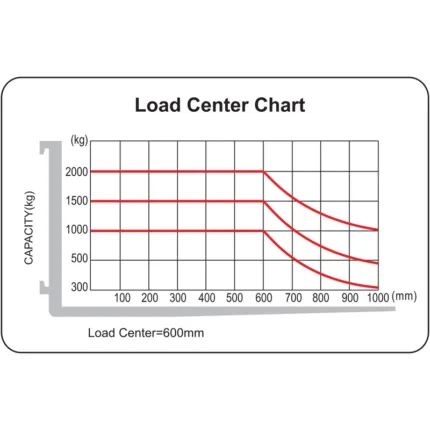

- Load capacity: 2000kg (2t).

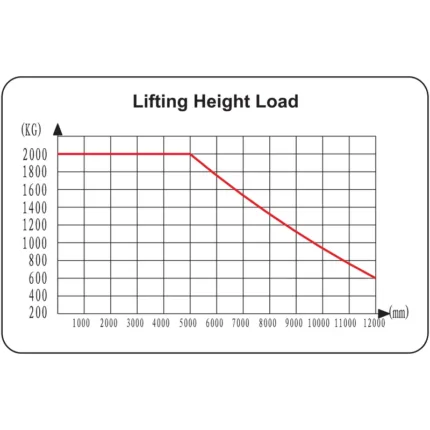

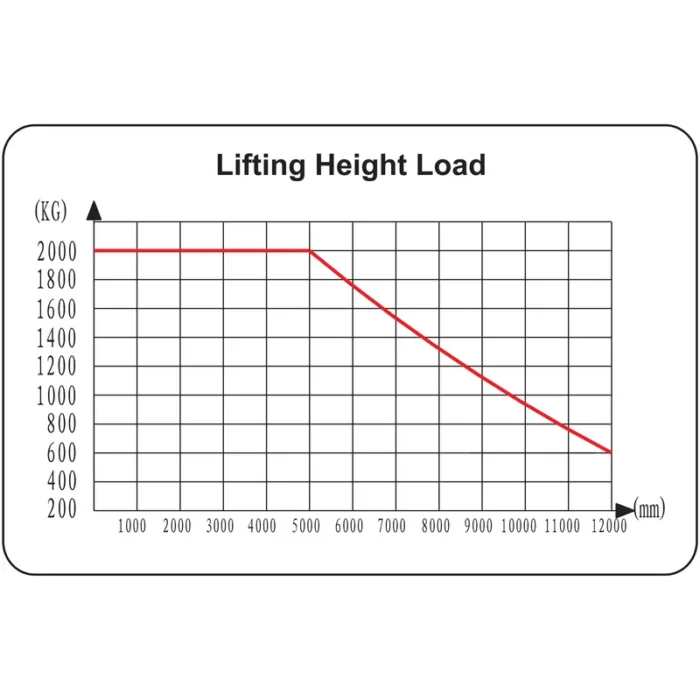

- Lifting height: 8000mm (8m), 8600mm (8.6m), 9500mm (9.5m), 10200mm (10.2m), 11100mm (11.1m), 12000mm (12m).
- Reach truck with AC control system.
- EPS (optional for 8-9.5m; standard for 10-12m) power steering system.
- Electronic multi-valve.

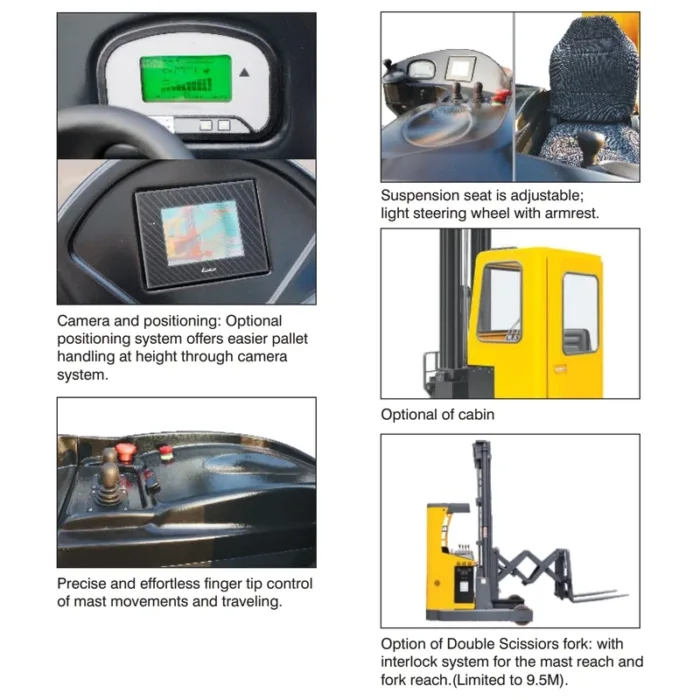

- Multi-function displays can display information such as fault codes, driving direction, hour meter, and brake status.
- Finger-tip control stick. (standard for 10-12m, option for 8-9.5m).
- Forks with variable speed that lift/lower the mast in a forward/backward and side-to-side (right/left) direction.
- Reach truck with German ZF brand gear box.
- Adjustable steering wheel.
- When forks are at a high level, a mechanism that limits travel speed is used.
- Reach truck with electronic height limited device.
- German imports of “H” type mast steel are used.
- To achieve stepless speed management of sideshift, both lifting and traveling, use double controllers.
- Have a mast-mounted safety device that limits travel speed as a result.
Option:
- Side shift.
- Height selection and height position system.
- LCD display and camera (LCD for cold storage are available).
- Reach truck with EX explosion proof type.
- Travel/back-up flashing lights.
Additionally, the ergonomic controls offer operators smooth acceleration and accurate handling for maximum control and safety.
Electric reach trucks operate quietly therefore there is less noise, improving the working environment.
