Name: Electric reach truck REV20
SKU: REV20
Availability: BackOrder

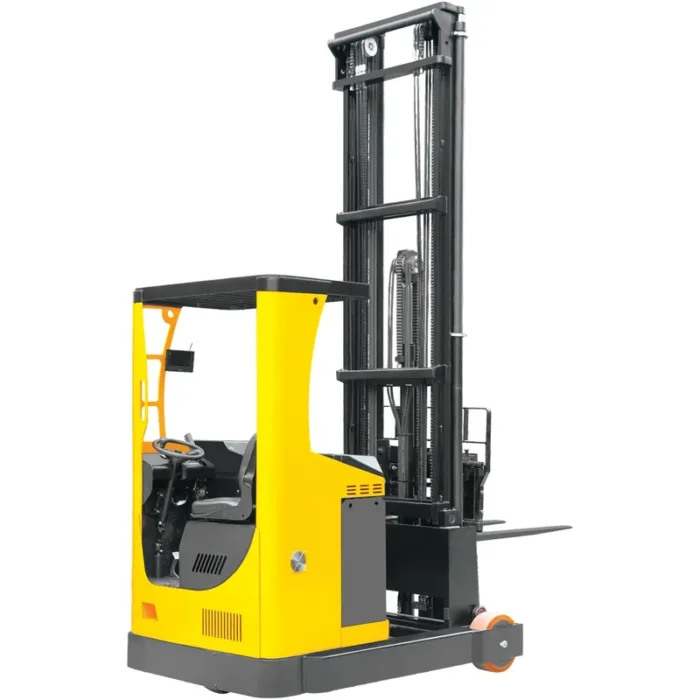

Electric reach truck REV20

Electric reach truck REV20 is efficient and adaptable handling equipment used in a variety of sectors.

They are outfitted with cutting-edge technology and offer improved agility, allowing operators to easily move through confined locations.

Reach trucks have outstanding lifting capacities that make it possible to handle huge objects with ease.

STABILITY (Electric reach truck REV20):

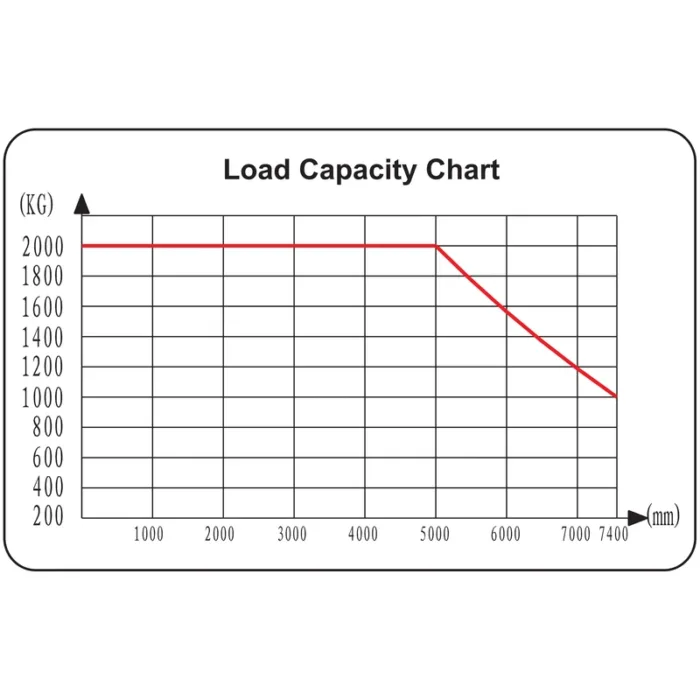

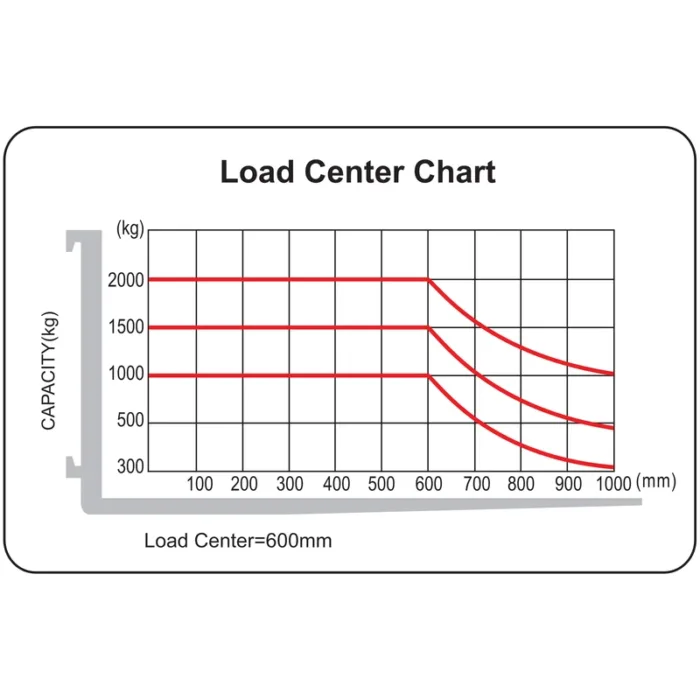

Load capacity: 2000kg (2t).
Lifting height: 3000mm (3m), 3500mm (3.5m), 4000mm (4m), 5000mm (5m), 6200mm (6.2m), 7400mm (7.4m).
A reach truck with a substantial and durable chassis guarantees the forklift’s adequate stability.
The highest lifting height is 9.5 meters.
Use of German-imported “H” type mast steel in order to extend its useful life and stability.
Large, soft, and adaptable, the compartment reflects the idea of ergonomic design.
To achieve stepless speed regulation for both lifting and moving, use two controllers.

SAFETY AND HIGH EFFICIENCY:

Have safety travelling speed limited device in the mast. When the forks are raised 5 meters, the traveling speed will automatically decrease.
Reach truck with full hydraulic steering system, in order to make turning easy and flexible.
Utilizes hydraulic brakes for the two front wheels and electronic brakes for the driving engine, therefore providing easy travel and braking.
The problems of chain fall-off brought on by chain transmission are resolved by the integrated design of driving and steering systems without chain transmission.

EASY MAINTENANCE:

Battery changing offers two type methods : 1. Side way battery changing by a trolley and 2. Automatic push-out and pull-in function by a simple battery handle controller.
Reach truck with bolt fixed back cover is easy to open for daily maintenance.

OPTION:

Joystick hydraulic controller.
LCD display and camera (LCD for cold storage are available).
Reach truck with height selection and height position system.
Cabin.

Additionally, the ergonomic controls offer operators smooth acceleration and accurate handling for maximum control and safety.

Electric reach trucks operate quietly therefore there is less noise, improving the working environment.
