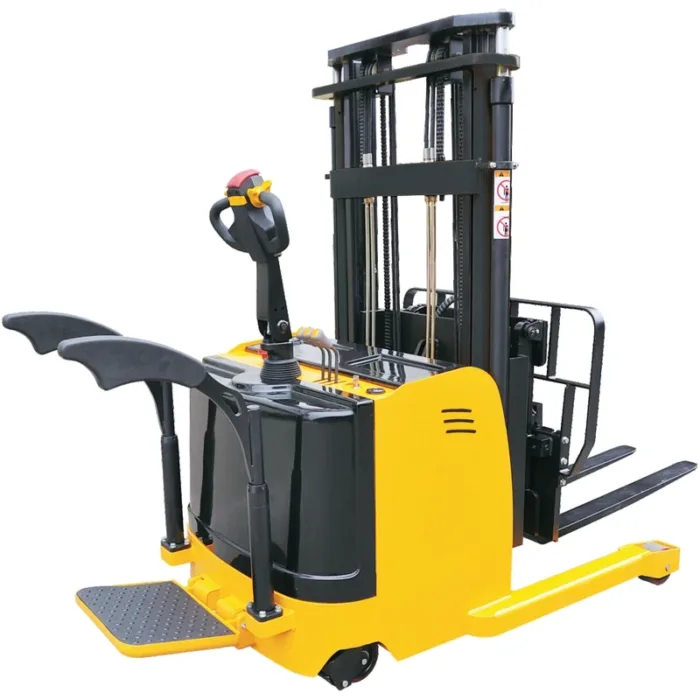

Electric reach stacker multi-valve control type

Electric reach stacker multi-valve control type is used to transport and manipulate pallet loads.
Electric warehouse pallet trucks are indispensable for optimizing warehouse and production processes, therefore they are reliable and energy efficient.

Load capacity: 1250kg (1.25t), 1500kg (1.5t).
Lifting height: 2500mm (2.5m), 3000mm (3m), 3500mm (3.5m), 4000mm (4m), 4500mm (4.5m), 5000mm (5m), 5500mm (5.5m).
For use in very narrow aisle warehouses, therefore compact structures are ideal.
Low gravity ensure safety operation as a result.
With disassemble type platform and protection arm.
Control fork reach, fork tilt, and lifting/lowering by using a hydraulic type multi-valve.
In order to move the truck forward and backward, use the handle.
You can separate the mast and frame.
Having a narrow turning radius and strong operational capabilities.
Hour meter and a multi-function display with BDI.
Single scissor fork reach distance is 500mm.
Double reach options are available up to 1200mm (option for EVV15DS).

DELACCO electric stacker multi-valve control type is compact and robust in order to ensure long-term use.

DELACCO has a wide selection of electric warehouse pallet trucks for sale.

Beginning with entry-level electric pallet stacker for light-duty applications and progressing to heavy-duty stackers powered by lead-acid or lithium-ion batteries.

Shipping Info

We organize delivery for all EU countries.

The current shipping price depends on several factors. The key factors are the dimensions and weight of the cargo, the route (place of loading/destination), the total distance, the delivery zone (urban areas, remote places, islands…) and the current price of fuel. In order to enable the fastest, most reliable and favorable transport of goods, we use the TIMOCOM Marketplace.
The prices shown below are indicative and non-binding. A separate transportation request is made for each order.

When choosing a carrier, all important criteria such as reliability, safety and availability are systematically checked, so that the most favorable price is not taken as a key factor.

For larger orders, the transport price should be more favorable than indicated in the table.
For the calculation, it is necessary to sum the values of W, H, Wt and D. The values of W, H, Wt and D vary depending on the length (L) of the load.

For all islands that are not connected to the mainland by road, +55% should be added to the displayed price.

The cost of transportation is charged just before delivery.

Additional information

Load capacity	1250kg, 1500kg
Lift height	2500mm, 3000mm, 3500mm, 4000mm, 4500mm, 5000mm, 5500mm
Initial lift	no
Engine type	AC
Folding platform	yes
Electric power steering	option
Battery type/voltage/capacity	LA/24/320, LA/24/460, LFP/24/225

Electric reach stacker multi-valve control type EVV12DS/EVV15DS

Compact and durable, DELACCO electric rider reach trucks with magnetic valve controls are designed for long-term use. Electric warehouse pallet trucks come in a variety of models, all available from DELACCO.
