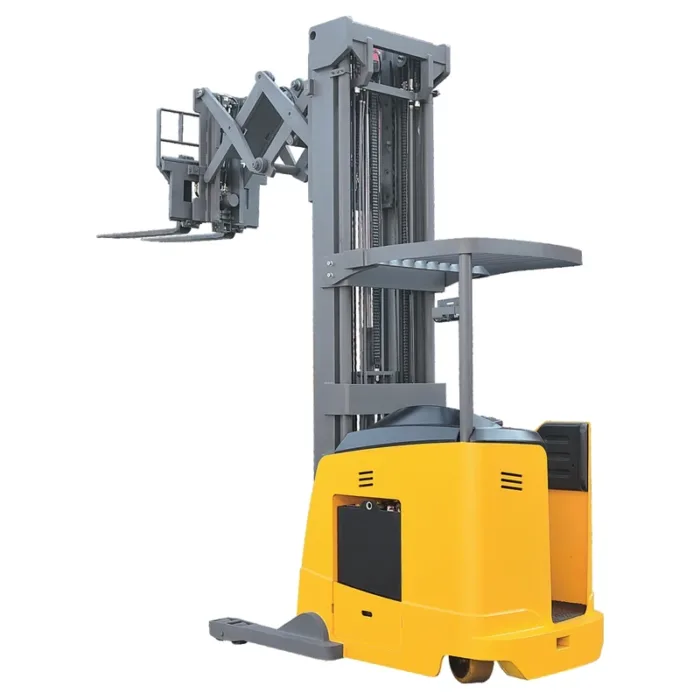

Name: Electric fork reach truck double scissor REV20DDS
SKU: REV20DDS
Availability: BackOrder

Electric fork reach truck double scissor

Electric fork reach truck double scissor are efficient and adaptable handling equipment used in a variety of sectors.

They are outfitted with cutting-edge technology and offer improved agility, allowing operators to easily move through confined locations.

Reach trucks have outstanding lifting capacities that make it possible to handle huge objects with ease.

SAFETY AND PRODUCTIVITY

Powered by a sizable AC drive motor, great performance on inclined ramp starting, no need to replace carbon brush.
EPS is included as standard, providing a light and comfortable steering sensation at all times.
Control the speed of lift and lowering by two model functions.
Excellent operational stability due to low center of gravity.
Reach truck with small turning radius, good turning performance.
Manage driving and lifting speeds at once.
Shock absorber system reduces the operation noise in great deal.
Wide view mast and clear visibility.
Reach truck with full free lifting, able to work in confined space.
Hydraulic proportional valve imported; lifting/lowering speed is customizable.

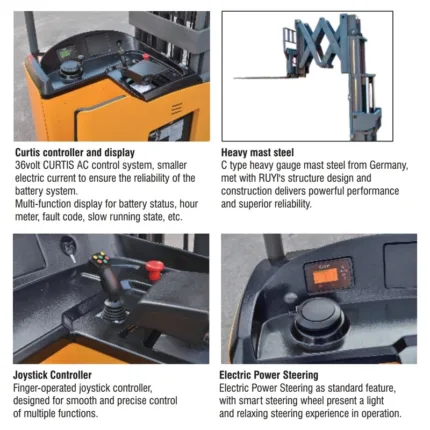

Display with several functions, including hour meter, fault code, slow running state, and battery status.

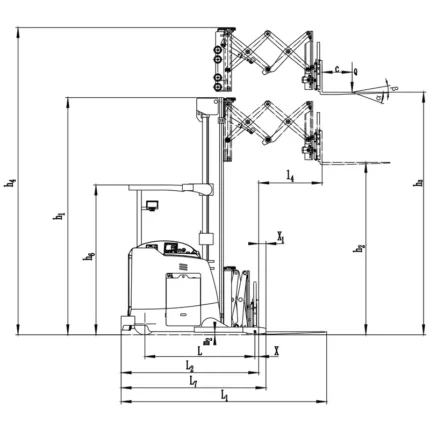

1000mm reaching distance with double scissors.
When the forks advance, the mast, which is fixed to the frame, serves as the balance weight.
Smaller electric current and an advanced 36V electric control mechanism ensure the battery system’s dependability.
Electric reach trucks can lift and lower objects at a high rate of speed—300% faster than conventional trucks.

STRUCTURAL

Reach truck with side way battery, easy to replace and service.
By simplifying the wiring, CANbus technology creates a clean, organized line. increases the truck’s dependability and repairability.
Separate the mast if needed.

Additionally, the ergonomic controls offer operators smooth acceleration and accurate handling for maximum control and safety.

Electric reach trucks operate quietly therefore there is less noise, improving the working environment.
