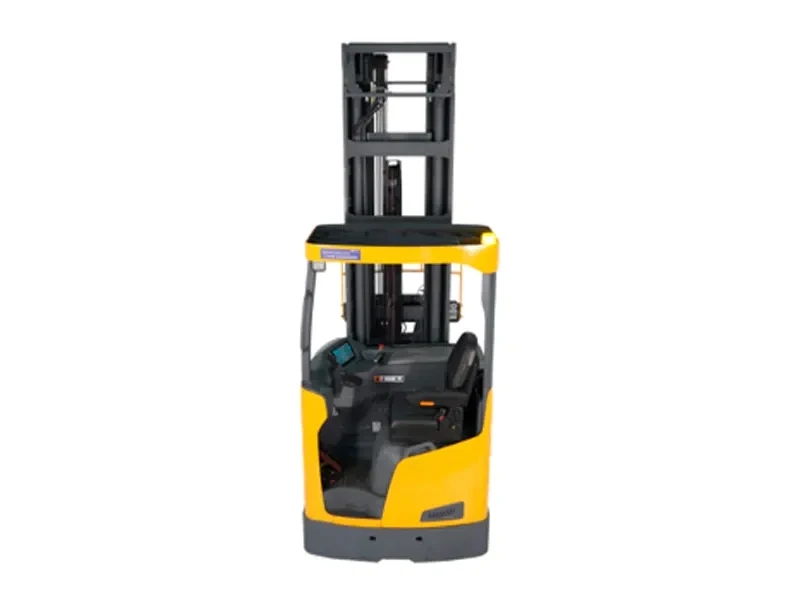

Deluxe serie reach truck
Deluxe serie reach truck is efficient and adaptable handling equipment used in a variety of sectors.
They are outfitted with cutting-edge technology and offer improved agility, allowing operators to easily move through confined locations.
Reach trucks have outstanding lifting capacities that make it possible to handle huge objects with ease.
Safe and Reliable:
- Load capacity: 2000kg (2t).
- Lifting height: 4700mm (4.7m), 4900mm (4.9m), 5000mm (5m), 5100mm (5.1m), 5200mm (5.2m), 5300mm (5.3m), 5400mm (5.4m), 5500mm (5.5m), 5600mm (5.6m), 5800mm (5.8), 6200mm (6.2).
- Height restriction function: To protect the safety of lifting, the lifting motor will automatically cease power when the fork is on its highest point.
- High speed restriction function, the driving speed will be automatically reduced to guarantee the safety of high-level operation when the fork lifting is greater than the free lifting height.
- When a vehicle rotates, the turning speed limit function automatically reduces the speed in accordance with the turning angle to protect the forklift.
- When the mast reaches its destination, the reach speed will slow down to ensure the stability of the mast.
- With a short braking distance, no inertial impact, safety, and dependability, the service brake is operated simultaneously by hydraulic braking and regenerative braking.
- In order to prevent sliding on a ramp, the parking brake uses electromagnetic braking, which activates automatically after parking.
- Reach truck equipped with OPS as standard to ensure the operator’s safety.
- To achieve closed-loop control, CANbus technology – detect the motor speed, temperature, and other information in real time.
- AC frequency conversion control technology enables stepless speed regulation control for driving, lifting and steering, which is accurate and reliable.
- Equipped with warning lights + headlights as standard in order to ensure safe operation under the condition of insufficient light.
- To protect the operator’s feet, the foot pedal location has been built with an off position pedal.
- Reach truck OPTION: ASC function (Active Sway Control).
Standard (Reach truck):
- INMOTION controller.
- Driving motor: 6.5Kw(AC).
- Lifting motor: 8.2Kw(AC).
- EPS.
- Lead-acid battery 48V/500AH (side-way design).
- Gear box: Germany KORDEL.
- Integral side shifter.
- Fork tilting.
- Reach truck with high-level seat.
- Imported mast material.
- LED warning light and front light.
- Height-positioning system.
Optional:
- Reach truck with camera system.
- LED back lights.
- Lithium battery (48V/350AH, 48V/400AH and 48V/450AH).
- Electro-magnetic operation.
- Bigger capacity of lifting motor: 12Kw.

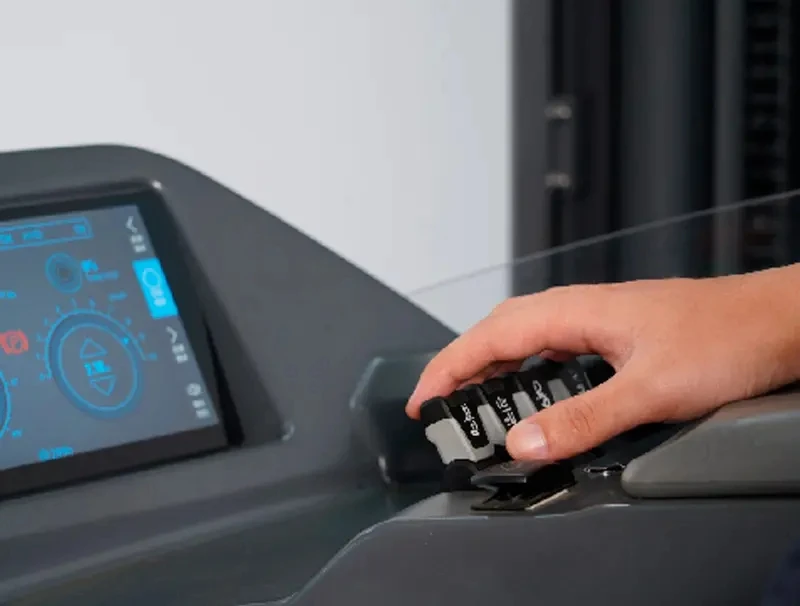

Additionally, the ergonomic controls offer operators smooth acceleration and accurate handling for maximum control and safety.
Electric reach trucks operate quietly therefore there is less noise, improving the working environment.
