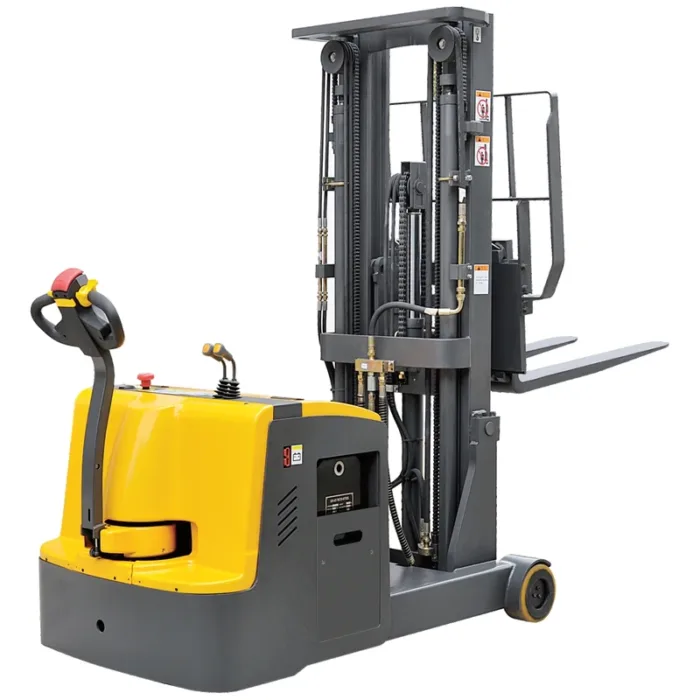

Counterbalanced electric stacker

Counterbalanced electric stacker is used to transport and manipulate pallet loads.
Electric warehouse pallet trucks are indispensable for optimizing warehouse and production processes, therefore they are reliable and energy efficient.

EVVP15H:

Safety and efficiency:

Traction motor with AC frequency conversion, small size, good performance, regenerative braking, and simple maintenance.
Easy to load and stack, counterbalanced stacker with forks that tilt.
Large storage battery, strong and lasting power as a result.
Measure with BDI to extend the battery’s operating time.
The friction plate’s lifespan is significantly extended by the braking technology, which combines magnetic brake and regenerative break.
Featuring a multi-valve regulating lever, emergency stop switch, electrical lock button, and ergonomic operation.
The masts’ lowering speed can change using the adjustable regulator valve.

Structural (Counterbalanced stacker):

Load capacity: 1500kg (1.5t).
Lifting height: 2500mm (2.5m), 3000mm (3m), 3500mm (3.5m), 4000mm (4m), 4500mm (4.5m), 5000mm (5m), 5600mm (5.6m).
Its steering is light and versatile because to the long handle structure.
Counterbalanced stacker with two lifting cylinders placed on outer sides of the mast.
Germany imported special steel mast.
Driving effectiveness, a vertical driving wheel, therefore simple installation and maintenance.
Compact structure and low gravity.

Easy maintenance:

Simple installation and upkeep using a magnet-suction battery cover.
Counterbalanced stacker with AC controlling system, low noise, less maintenance.

EVVP05H:

Multi-functional counterbalanced stacker

Long handle structure, therefore light and flexible steering.
The lack of stabilization legs makes it ideal for loading and unloading vehicles or cargo containers.

DELACCO counterbalanced electric stacker is compact and robust in order to ensure long-term use.

DELACCO has a wide selection of electric warehouse pallet trucks for sale.

Beginning with entry-level electric pallet stacker for light-duty applications and progressing to heavy-duty stackers powered by lead-acid or lithium-ion batteries.

Shipping Info

We organize delivery for all EU countries.

The current shipping price depends on several factors. The key factors are the dimensions and weight of the cargo, the route (place of loading/destination), the total distance, the delivery zone (urban areas, remote places, islands…) and the current price of fuel. In order to enable the fastest, most reliable and favorable transport of goods, we use the TIMOCOM Marketplace.
The prices shown below are indicative and non-binding. A separate transportation request is made for each order.

When choosing a carrier, all important criteria such as reliability, safety and availability are systematically checked, so that the most favorable price is not taken as a key factor.

For larger orders, the transport price should be more favorable than indicated in the table.
For the calculation, it is necessary to sum the values of W, H, Wt and D. The values of W, H, Wt and D vary depending on the length (L) of the load.

For all islands that are not connected to the mainland by road, +55% should be added to the displayed price.

The cost of transportation is charged just before delivery.

Additional information

Weight	N/A
Dimensions	N/A

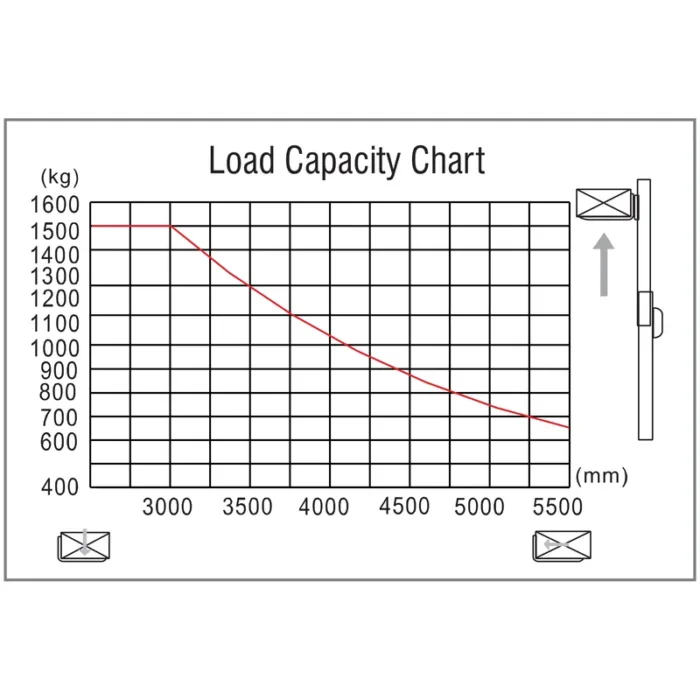

Load capacity	1500kg

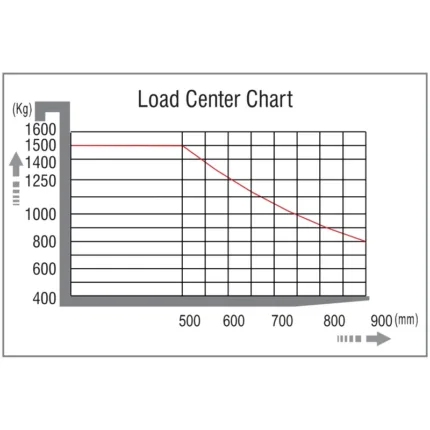

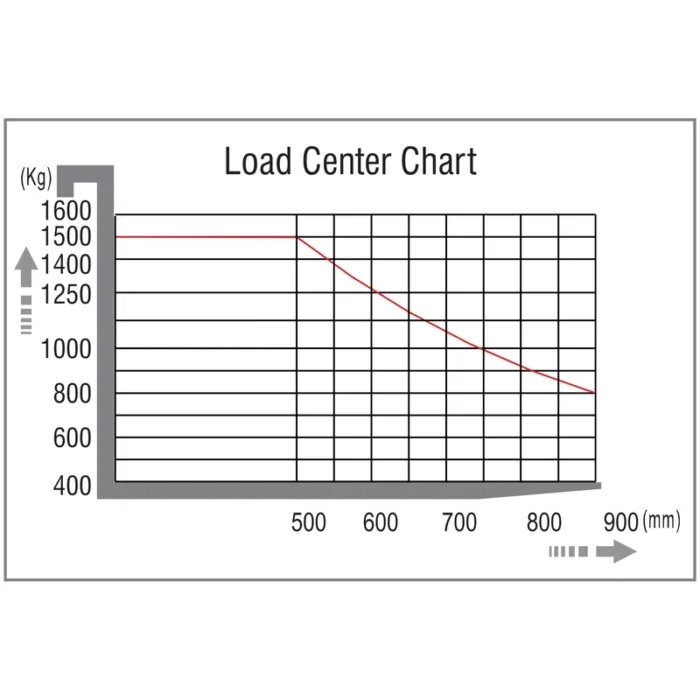

Load center	500mm
Load distance	130mm
Tyre size, front	250x70mm
Tyre size, rear	200x100mm
Number of wheels, front/rear (x=driving) Φ	1X/2
Forks, tilt forward/back	3°/6°
Height, mast lowered	1735mm, 1985mm, 2235mm, 1895mm, 2085mm, 2435mm
Initial lift	no
Free lift	0mm, 1400mm, 1500mm, 1670mm, 1870mm
Lift height	2500mm, 3000mm, 3500mm, 4000mm, 4500mm, 5000mm, 5600mm
Height, mast extended	5000mm, 5500mm, 6000mm, 6600mm, 3500mm, 4000mm, 4500mm
Height of tiller min/max	730/1360mm

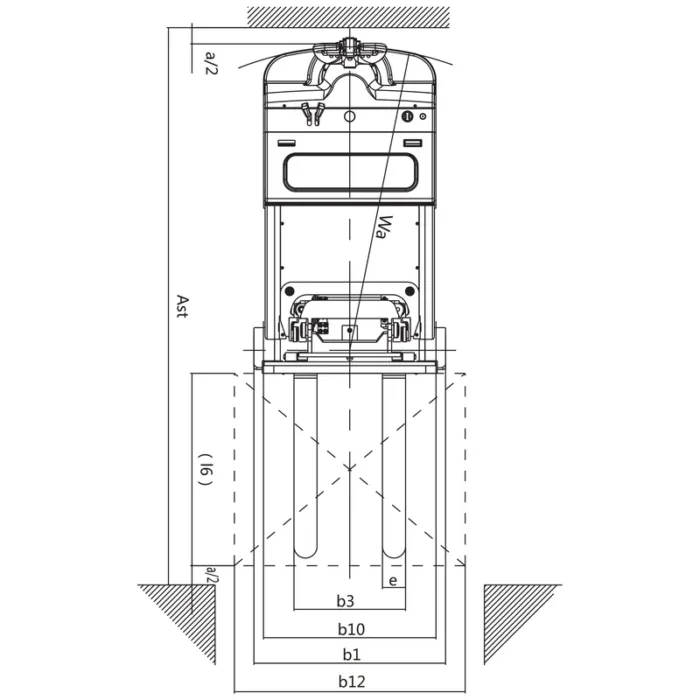

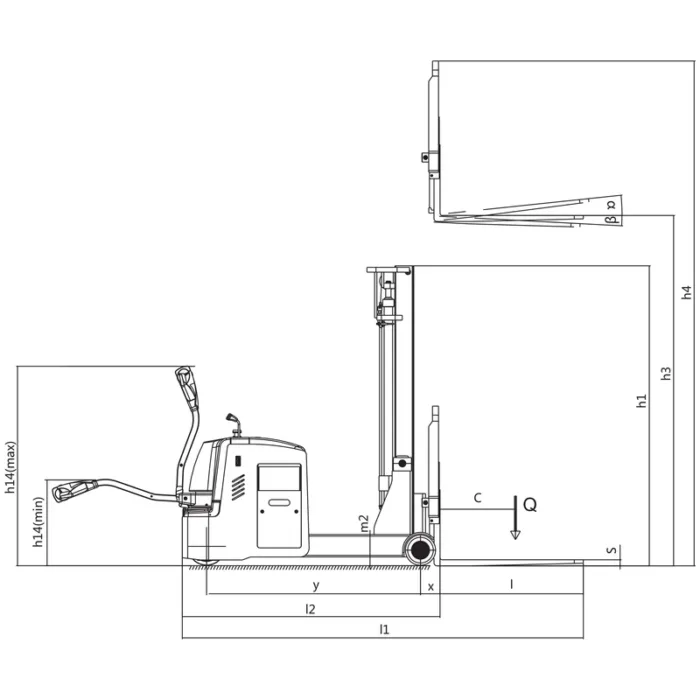

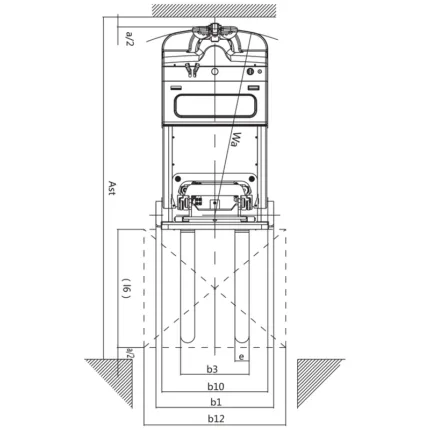

Overall length	2650mm
Length to face of forks	1700mm
Overall width	990mm
Fork dimensions	35x100x950mm (1070)
Width overall forks	220-680mm
Aisle width for pallets 800x1200mm	3070mm
Turning radius	1570mm
Engine type	AC
Travel speed, laden/unladen	5.8/6km/h
Lifting speed laden/unladen	0-0.12-0-0.16m/s
Lowering speed laden/unladen	0-0.45m/s
Folding platform	no
Electric power steering	no
Battery type/voltage/capacity	LA/24/280, LFP/24/225
Battery weight	300-360kg
Battery dimensions (I/W/H)	812x270x535mm
Service weight (with battery)	2080kg

Counterbalanced electric stacker EVVP15H/EVVP05H

10.270,00 € – 14.740,00 € excl. tax

Compact and durable, DELACCO electric counterbalanced reach trucks, for long-term use. Electric warehouse pallet trucks come in a variety of models, all available from DELACCO.
