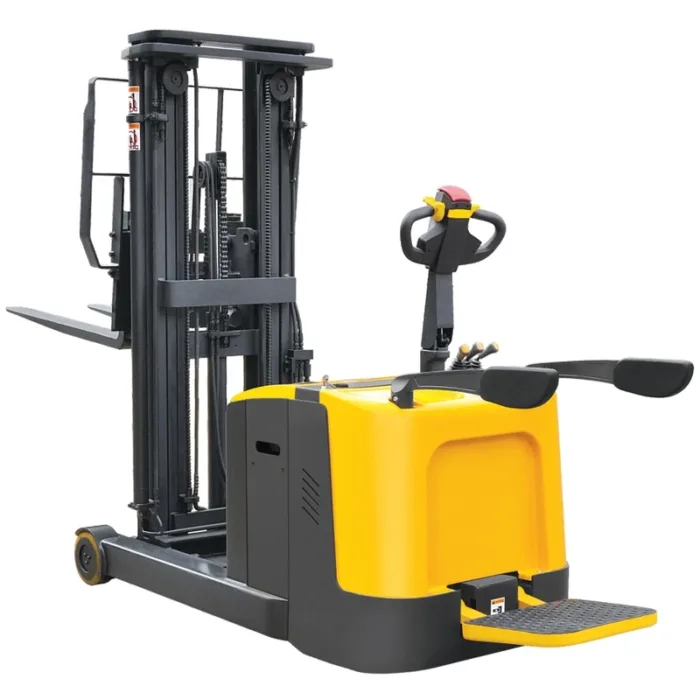

Counterbalanced electric reach stacker EVVP12C-P/EVVP15C-P

Counterbalanced electric reach stacker are used to transport and manipulate pallet loads.
Electric warehouse pallet trucks are indispensable for optimizing warehouse and production processes, therefore they are reliable and energy efficient.

Structural (Reach stacker):

Load capacity: 1250kg (1.25t), 1500kg (1.5t).
Lifting height: 2500mm (2.5m), 3000mm (3m), 3500mm (3.5m), 4000mm (4m), 4500mm (4.5m), 5000mm (5m), 5500mm (5.5m).
Two lifting cylinders placed on outer sides of the mast.
Germany imported special steel mast.
Driving effectiveness, a vertical driving wheel, therefore simple installation and maintenance.
Reach stacker with compact structure and low gravity.

Safety and efficiency:

Traction motor with AC frequency conversion, small size, good performance, regenerative braking, and simple maintenance.
Reach stacker with tilting system forks easy for loading and stacking.
Strong and lasting power because of large storage battery.
Measure with BDI in order to extend the battery’s operating time.
The friction plate’s lifespan is significantly extended by the braking technology, which combines magnetic brake and regenerative break.
Featuring a multi-valve regulating lever, emergency stop switch, electrical lock button, and ergonomic operation.
The masts’ lowering speed can change using the adjustable regulator valve.

Easy maintenance:

Simple installation and upkeep using a magnet-suction battery cover.
Reach stacker with AC control system, minimal maintenance and low noise.

DELACCO counterbalanced electric reach stacker are compact and robust in order to ensure long-term use.

DELACCO has a wide selection of electric warehouse pallet trucks for sale.

Beginning with entry-level electric pallet stacker for light-duty applications and progressing to heavy-duty stackers powered by lead-acid or lithium-ion batteries.

Shipping Info

We organize delivery for all EU countries.

The current shipping price depends on several factors. The key factors are the dimensions and weight of the cargo, the route (place of loading/destination), the total distance, the delivery zone (urban areas, remote places, islands…) and the current price of fuel. In order to enable the fastest, most reliable and favorable transport of goods, we use the TIMOCOM Marketplace.
The prices shown below are indicative and non-binding. A separate transportation request is made for each order.

When choosing a carrier, all important criteria such as reliability, safety and availability are systematically checked, so that the most favorable price is not taken as a key factor.

For larger orders, the transport price should be more favorable than indicated in the table.
For the calculation, it is necessary to sum the values of W, H, Wt and D. The values of W, H, Wt and D vary depending on the length (L) of the load.

For all islands that are not connected to the mainland by road, +55% should be added to the displayed price.

The cost of transportation is charged just before delivery.

Additional information

Weight	N/A
Dimensions	N/A
Load capacity	1250kg, 1500kg
Lift height	2500mm, 3000mm, 3500mm, 4000mm, 4500mm, 5000mm, 5500mm, 5600mm
Initial lift	no
Engine type	AC
Folding platform	yes
Electric power steering	option
Battery type/voltage/capacity	LA/24/270, LFP/24/225

Counterbalanced electric reach stacker EVVP12C-P/EVVP15C-P

9.940,00 € – 15.240,00 € excl. tax

Compact and durable, DELACCO electric reach trucks for long-term use. Electric warehouse pallet trucks come in a variety of models, all available from DELACCO.
