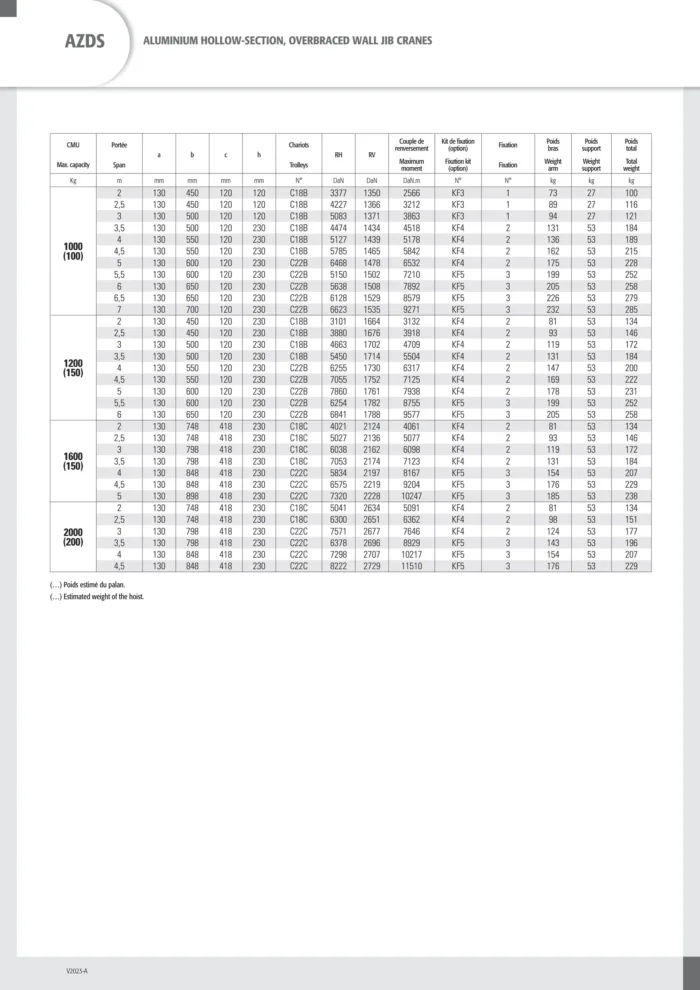

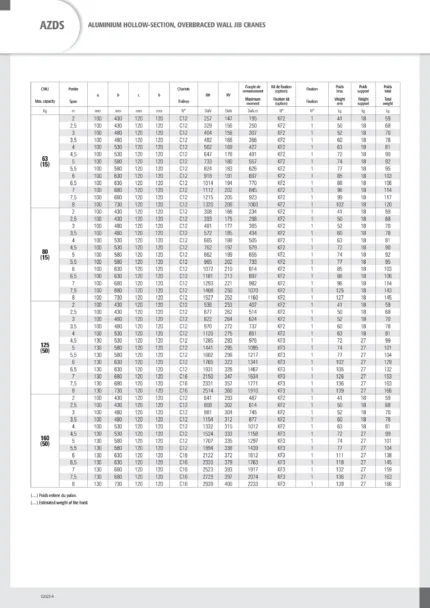

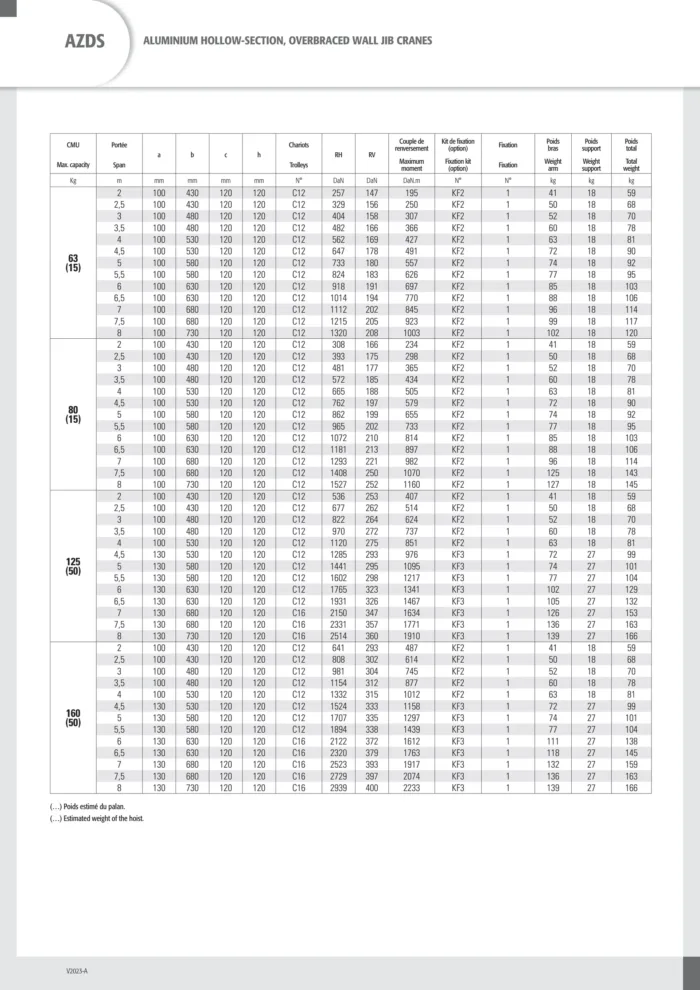

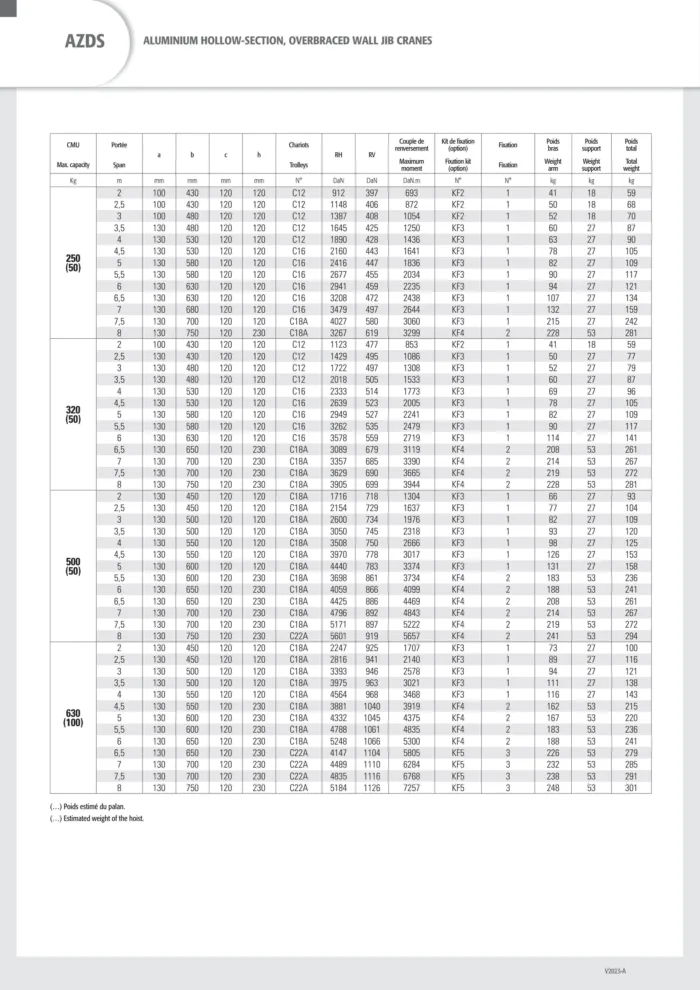

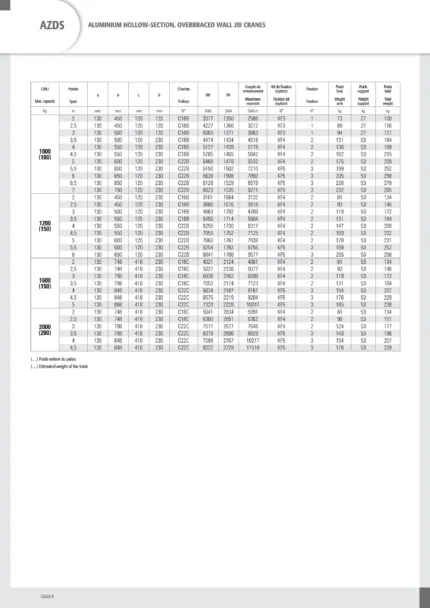

Aluminium hollow-section, overbraced wall jib cranes (AZDS) – Basic specifications:
- load capacity: 63kg, 80kg, 125kg, 160kg, 250kg, 320kg, 500kg, 630kg, 1000kg, 1250kg, 1600kg, 2000kg
- span: 2000mm, 2500mm, 3000mm, 3500mm, 4000mm, 4500mm, 5000mm, 5500mm, 6000mm, 6500mm, 7000mm, 7500mm, 8000mm

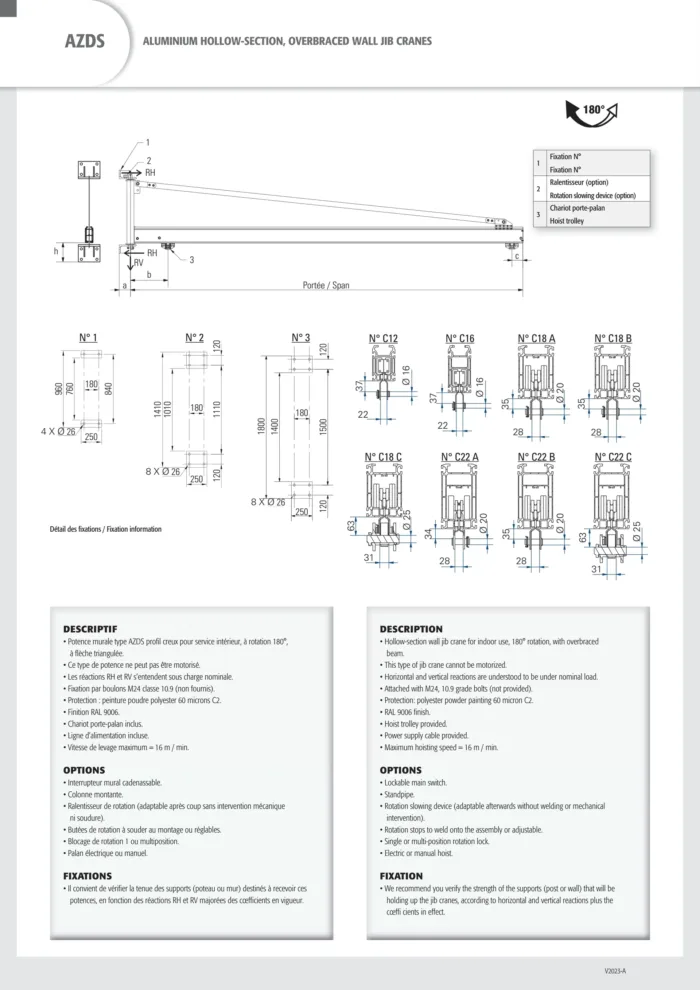

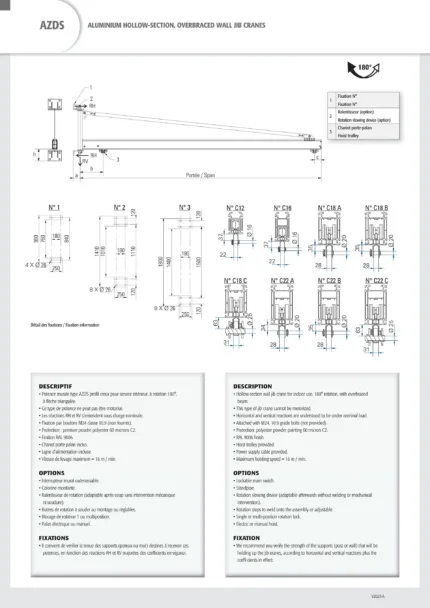

Aluminium hollow-section, overbraced wall jib cranes (AZDS) – Description and options:
- aluminium wall jib cranes
- made of triangulated hollow profile
- intended exclusively for internal use
- working angle of 180°
- a motor drive cannot be installed on this type of crane
- options: manual or electric chain hoist and beam trolley
- the wall jib crane is supplied with standard brackets
- fastening with M24 class 10.9 screws (not supplied)
- finish RAL 9006
- a manual beam trolley included in the standard equipment
Options:
- manual chain hoist
- additional beam trolley
- electric chaine hoist
- roller cable trolley
- lockable switch 400V (16 or 20A)
- adjustable attachment kit
- rotation slowing device
- locking device 1 position or multiposition in stainless steel
When ordering, a 50% advance payment is required.
