- SWL = 6300kg
- span = 4500mm
- height under beam = 5000mm

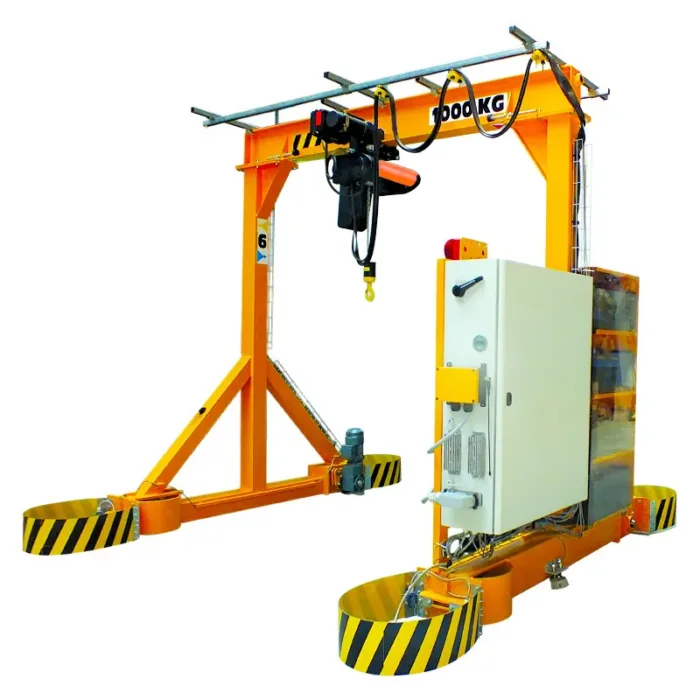

Gantry crane completely motorized and electrified including:
- 2 motorized non swivelling polyurethan wheels
- 2 polyurethan caster wheels
- electrical equipment with low voltage control 48V
- power supply line on rail
- mobile pendant to control all the movements
- motor SEW with inverter
- 2 travelling speeds 20 et 10m/min
- swiveling of the gantry by reversion of the 2 motors
- swiveling in low speed
- reversion commutator on the button box
- 4 obstacle detector
Main dimensions:
- span from the axis of the feet = 4500mm
- span from the axis of the feet V = 3810mm
- total width including the detector W= 3875mm
- total length L = 4900mm
- working span L1 = 3500mm
- height under beam = 5000mm
- overall height including the power line HT = 5450mm
- width without obstacle E = 2500mm
- beam width l = 180mm
- total weight = 1465kg
- max reaction on 1 wheel = 3548daN
