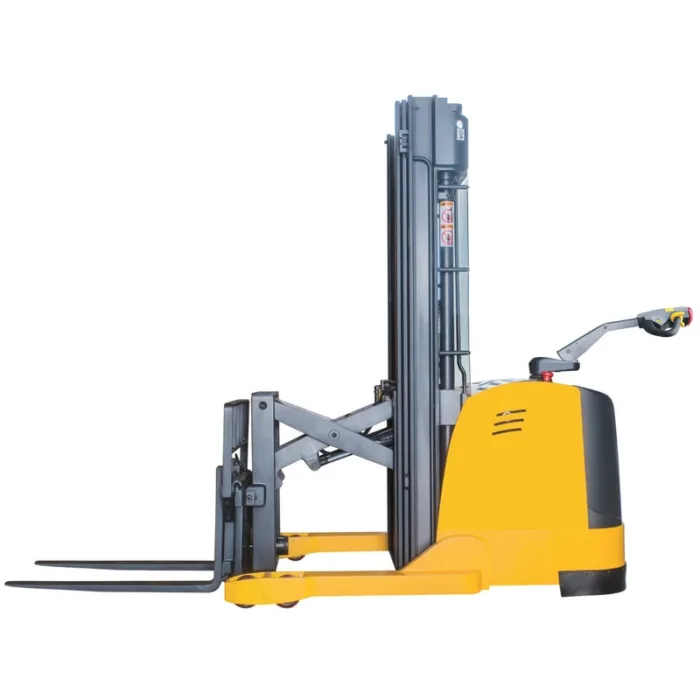

Electric reach truck

Electric reach truck with magnetic valve control is used to transport and manipulate pallet loads.
Electric warehouse pallet stackers are indispensable for optimizing warehouse and production processes, therefore they are reliable and energy efficient.

Structural (Electric pallet stacker):

Reach stacker come in many options, including with or without a platform.
Low gravity in order to ensure safety operation.
The motor’s water-proof and dust-proof construction maintains it more dependable and durable.
Electric reach truck has multi function display with BDI, hour meter and fault code.
Small turning radius and straightforward maintenance are provided by the vertical driving wheel.
Electric pallet stacker mast and frame are dividable and exchangeable.

Safety and efficiency:

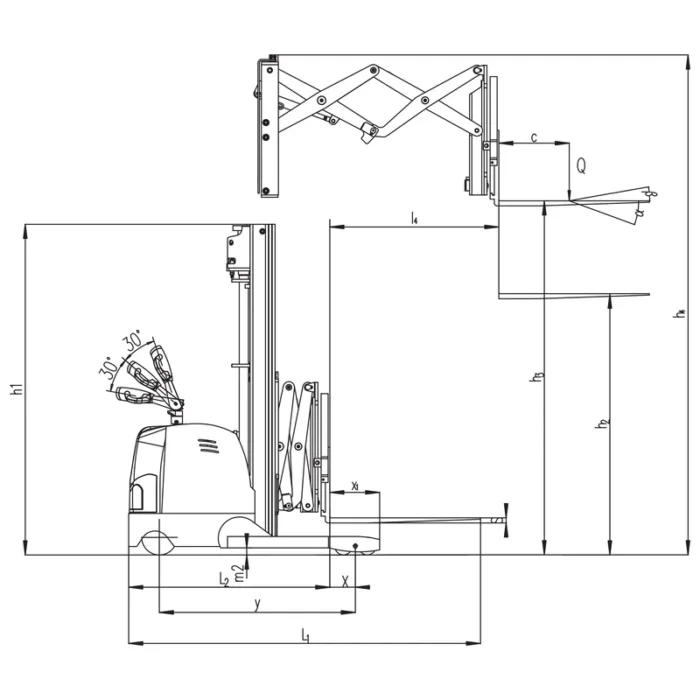

Single scissor or double scissor.

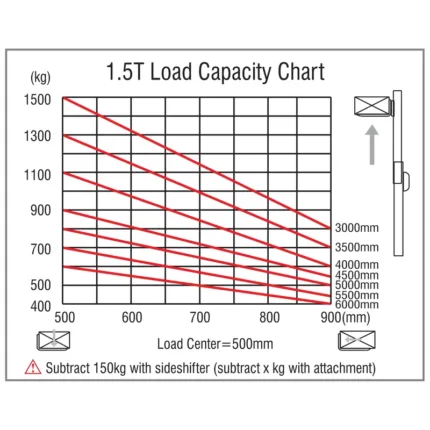

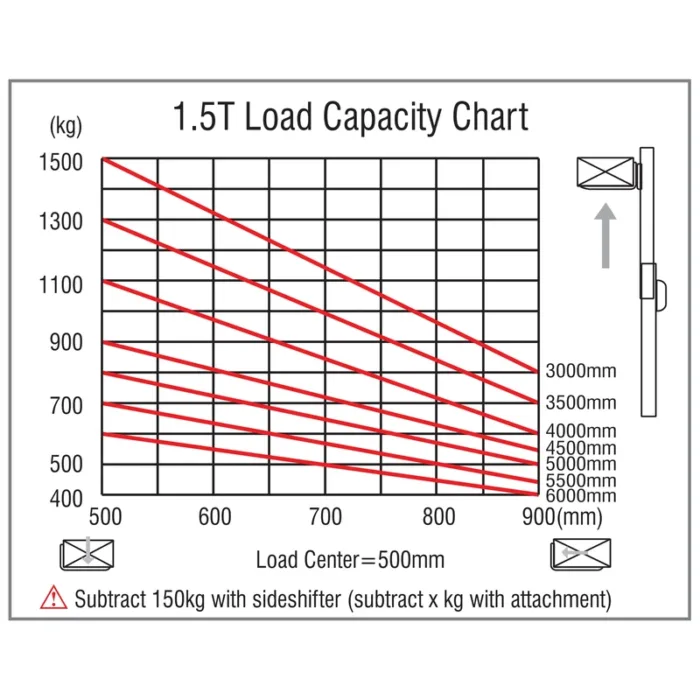

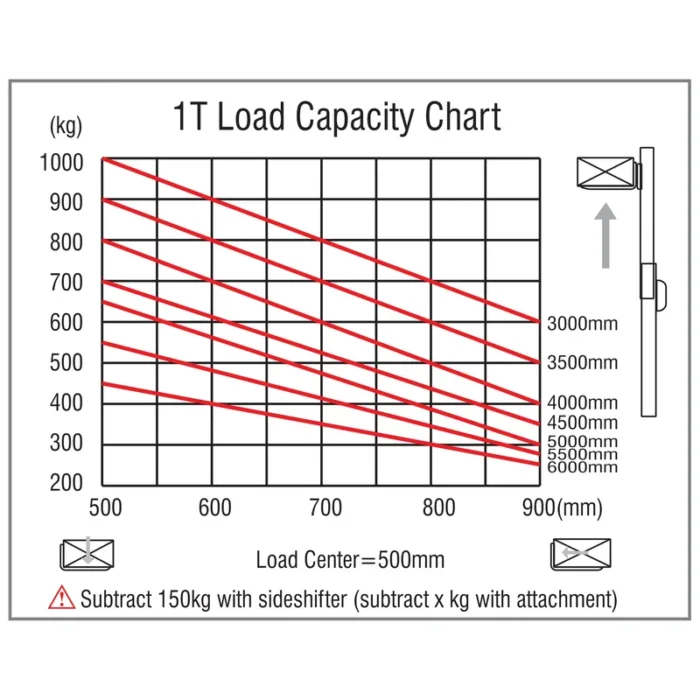

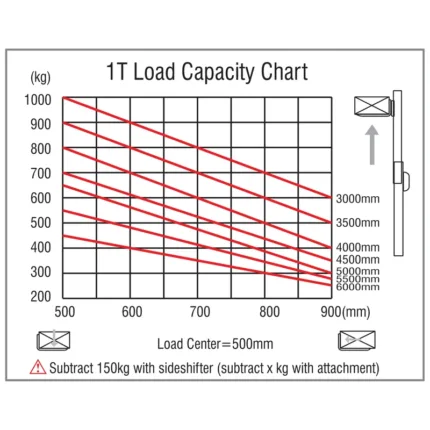

Load capacity: 1500kg (1.5t), 2000kg (2t).
Lifting height: 2000mm (2m), 2500mm (2.5m), 3000mm (3m), 3500mm (3.5m), 4000mm (4m), 4500mm (4.5m), 5000mm (5m), 5500mm (5.5m), 6000mm (6m).
Modern AC drive motors with good ramp starting performance do not require carbon brush replacement.
Control driving speed, lifting/lowering speed, sideshift, fork reach, and tilting with the Germany Frei handle.
To prevent forks from dropping unexpectedly when an oil tube breaks and to protect the operator, cylinders are equipped with safety explosion-proof valves.
Electric reach truck has automatic speed deceleration when lifting height is up 1.8m.
Masts with micro switches prevent mast shock issues by limiting cylinder lifting height.
Low voltage protection setting prolongs the battery life (while battery less 20% only can drive no lifting).
Electric pallet stacker option EPS power steering system, makes steering more light an reliable.

Serviceability:

Easy maintenance due to platform and protection arm disassembly.
The circuit is made simpler and is simpler to assemble and access thanks to the condensed electronic components.
Trucks with battery protection devices automatically turn off the power when the battery is charging.

DELACCO electric reach truck with magnetic valve control are compact and robust in order to ensure long-term use.

DELACCO has a wide selection of electric warehouse pallet stackers for sale.

Beginning with entry-level electric pallet stacker for light-duty applications and progressing to heavy-duty stackers powered by lead-acid or lithium-ion batteries.

Shipping Info

We organize delivery for all EU countries.

The current shipping price depends on several factors. The key factors are the dimensions and weight of the cargo, the route (place of loading/destination), the total distance, the delivery zone (urban areas, remote places, islands…) and the current price of fuel. In order to enable the fastest, most reliable and favorable transport of goods, we use the TIMOCOM Marketplace.
The prices shown below are indicative and non-binding. A separate transportation request is made for each order.

When choosing a carrier, all important criteria such as reliability, safety and availability are systematically checked, so that the most favorable price is not taken as a key factor.

For larger orders, the transport price should be more favorable than indicated in the table.
For the calculation, it is necessary to sum the values of W, H, Wt and D. The values of W, H, Wt and D vary depending on the length (L) of the load.

For all islands that are not connected to the mainland by road, +55% should be added to the displayed price.

The cost of transportation is charged just before delivery.

Additional information

Load capacity	1500kg, 2000kg
Lift height	2500mm, 3000mm, 3500mm, 4000mm, 4500mm, 5000mm, 5500mm, 6000mm, 2000mm
Initial lift	no
Engine type	AC
Folding platform	no
Electric power steering	no
Battery type/voltage/capacity	LA/24/320, LA/24/460, LA/24/490, LA/24/525, LFP/24/225

Electric reach truck with magnetic valve control EVV15DDS/EVV20DDS

Starting with a light-duty electric pallet stacker for entry-level applications and moving up to lead-acid or lithium-ion battery-powered heavy-duty stackers.
