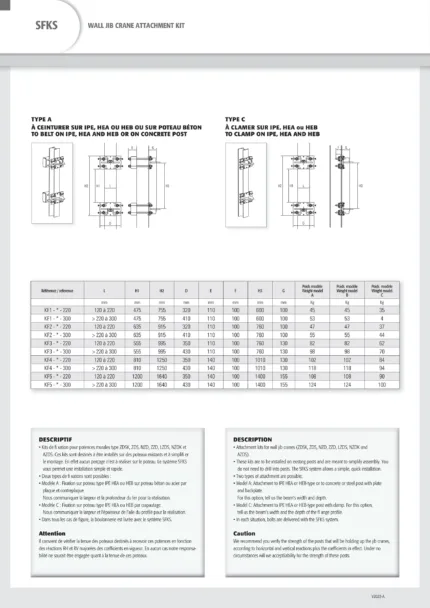

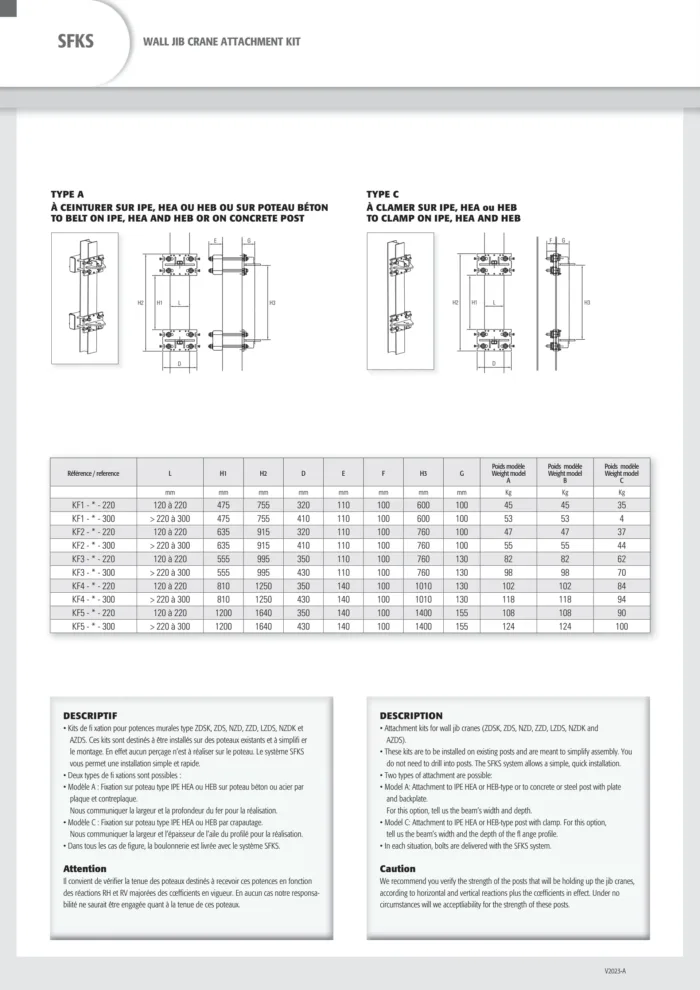

Wall jib cranes attachment kit (SFKS) – Basic specifications:
- type A width 120mm to 220mm
- type C width 220mm to 300mm
Wall jib cranes attachment kit (SFKS) – Description and options:
- attachment kits for wall jib cranes (ZDSK, ZDS, NZD, ZZD, LZDS, NZDK and
AZDS) - these kits are to be installed on existing posts and are meant to simplify assembly
- you do not need to drill into posts
- the SFKS system allows a simple, quick installation
- two types of attachment are possible:
- model A: attachment to IPE HEA or HEB-type or to concrete or steel post with plate
and backplate - for this option, tell us the beam’s width and depth
- model C: attachment to IPE HEA or HEB-type post with clamp
- for this option, tell us the beam’s width and the depth of the flange profile
- in each situation, bolts are delivered with the SFKS system
- adjustable for post width 120 to 220 mm and width exceeding 220 mm up to 300 mm
- for width exceeding 300 mm consult us
- it is imperative to know the width of the column and its depth
- the supply of a mounting kit does not engage our responsibility about the strength of the post
When ordering wall-mounted console cranes, a 50% advance payment is required.
